Machine Disassembly/Assembly and Troubleshooting
4-10
7 9000-20-07286 spring 1
8 M04-011002--- M3 nut, with spring washer 1
9 M04-051060--- cross pan head screw, pointless, tail-cut,
self-tapping M2X8
2
10 M04-021000--- Washer GB 97.2 2.5 2
4.1.8 MASIMO SpO
2
board assembly

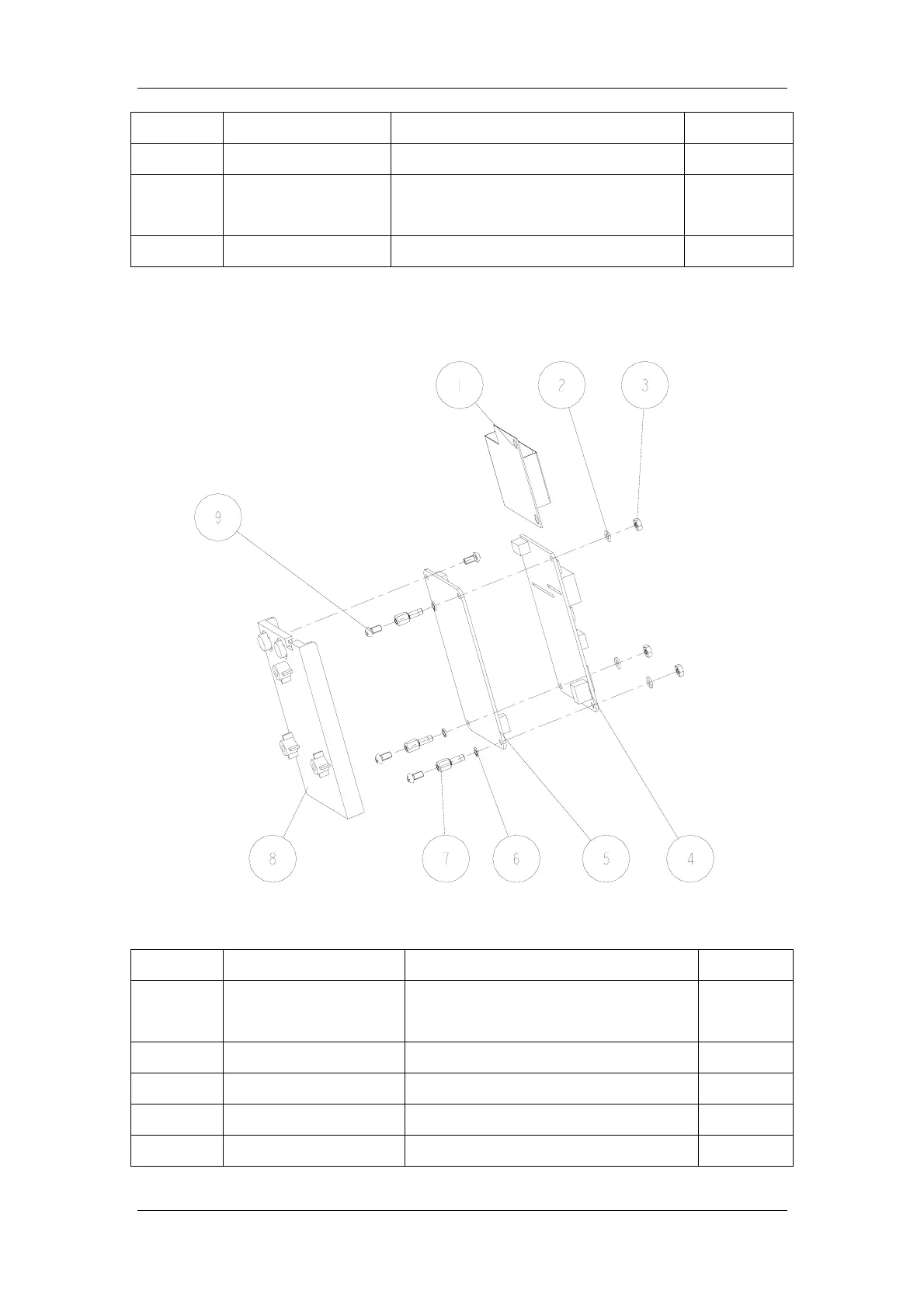

Figure 8MASIMO SpO
2
board assembly
No. Std. Code Name & Spec. Qty.
1 DA8K-20-14524 Insulating plate of SpO
2
isolation power
board
1
2 M90-000002--- Insulated washer Φ3X1 3
3 M04-000301--- NUT GB6170-M3 3
4 0010-30-12095 MASIMO M7 Isolation power board 1
5 0010-10-12275
MASIMO M7 BOARD（MASIMO KIT）
1
