Machine Disassembly/Assembly and Troubleshooting
4-15

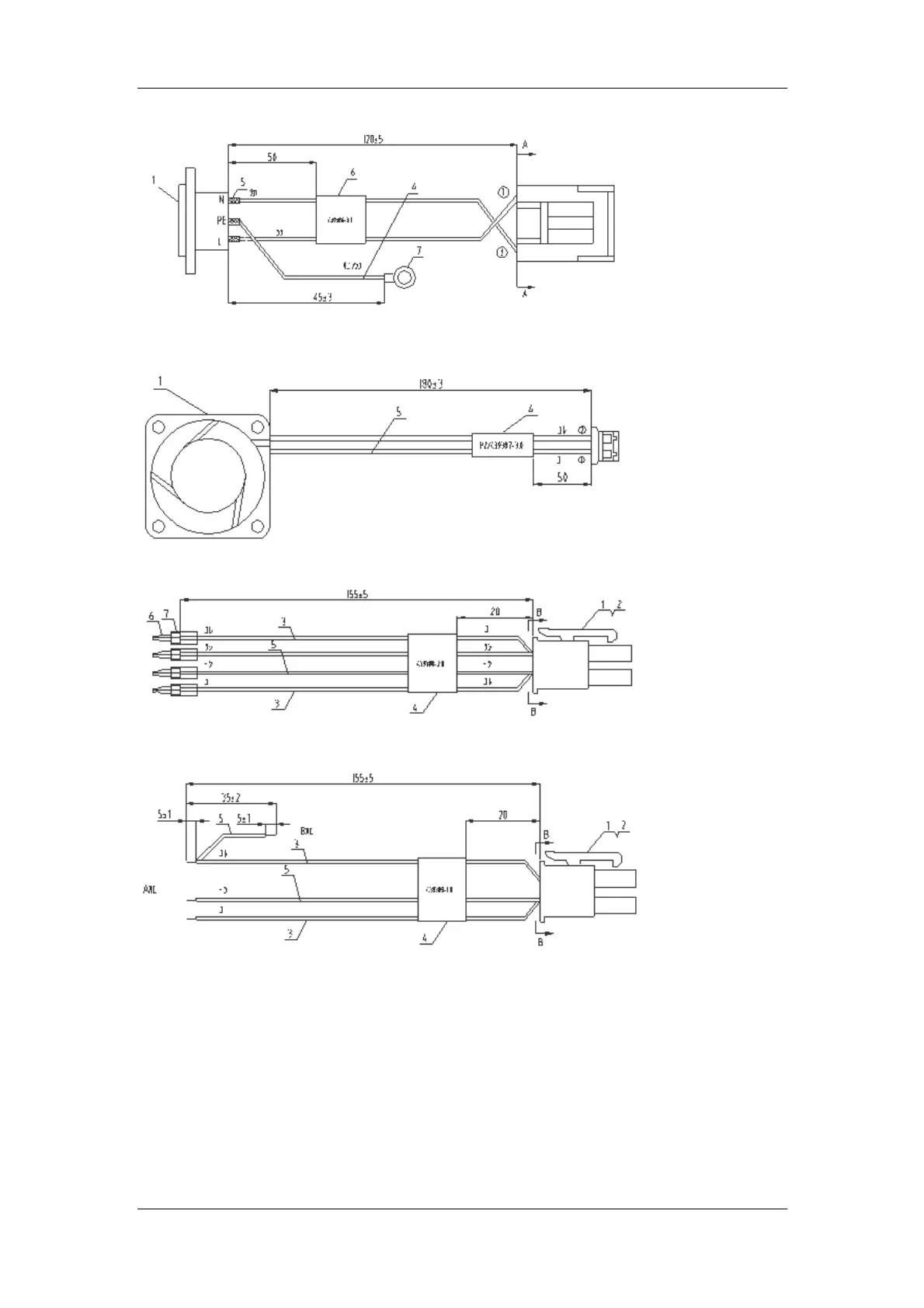

Figure 19Power Board AC Input Connection Cables
Figure 20Fan and Connection Cables
Figure 21Power Board-to-Battery Backplate Connection Cables (Lithium)
Figure 22Power Board-to-Battery Backplate Connection Cables (Lead-acid)
