3-6 System Preparation
3.7 Graph/Text Printer
3.7.1 Connecting a Local Printer

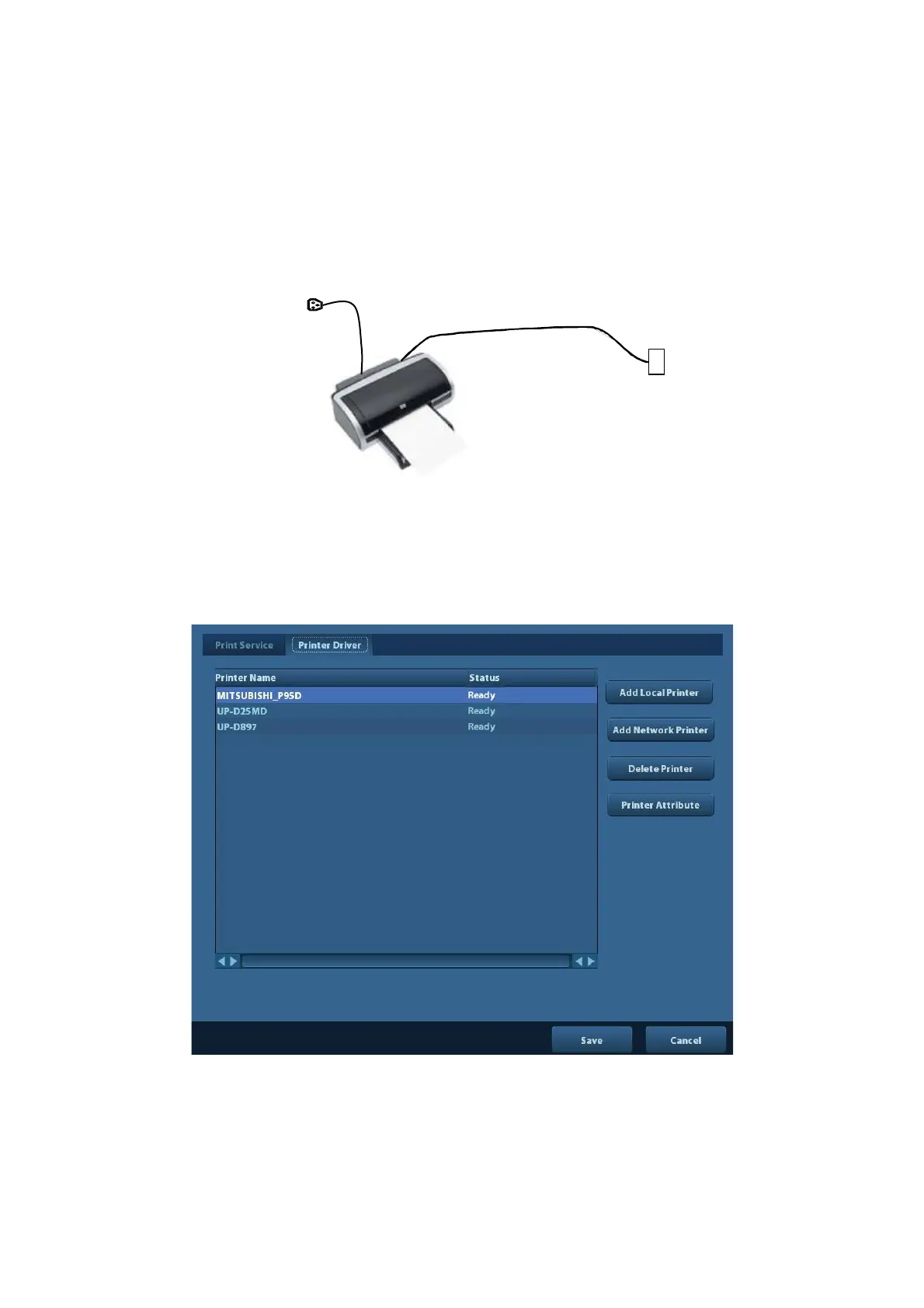

As shown in the figure below, a graph / text printer has a power cord and data cable. The
power cord shall be directly connected to a wall receptacle as required.
1. Connect the data cable with the USB port on the ultrasound system.
2. Plug the other end power plug into an appropriate outlet.
3. Power on the system and the printer.
4. Check the printer status:
Enter [Setup]-> [Print Preset]->“Printer Driver” page, printers that are installed
automatically will be displayed in the list with the “Status” of “Ready”.
5. Return to “Print Service” page, and select “Report Print” in the list, and set attributes in
the Property box under the screen:
Select the printer model from the drop-down list right to the “Printer”;
Set Paper Size.
USB port
