3−3. Connection of power supply and ground

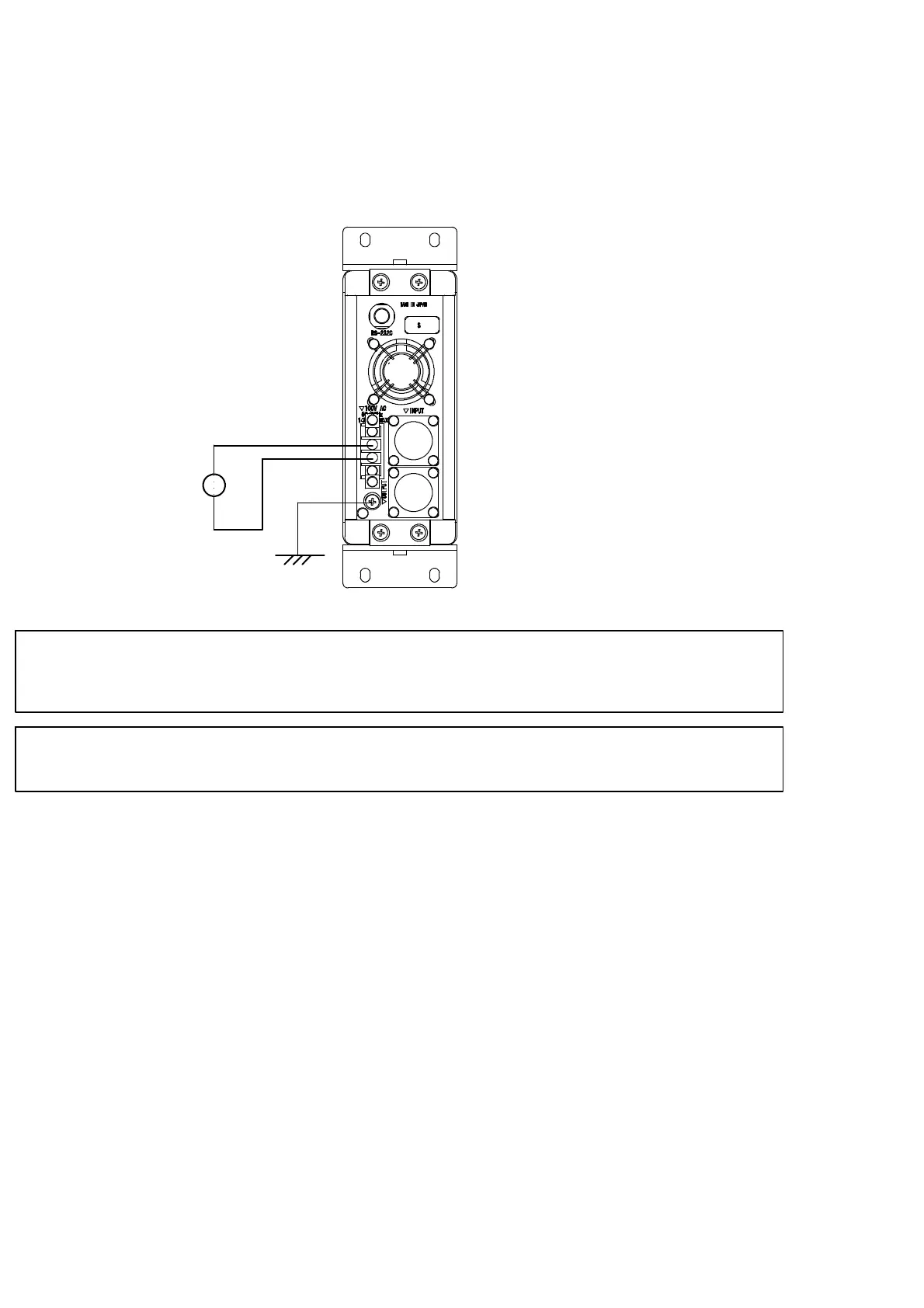

Please connect the power supply and the earth as shown in the figure below.
Please give the earth as D class single earth.
Power supply voltage AC85 V to AC132 V
Power supply frequency 50/60 Hz
Power consumption 145 VA at maximum(at AC100 V)
AC85 V to AC135 V
D class
single earth
〜
Warning● Connections with the power supply and the earth should be made securely according to
the figures and also within the rated capacity of the instrument. If neglected, it may
cause an unexpected cause of failure.
● Grounding should be the D class with single earth. If neglected, it may cause an
unexpected malfunction due to the effects of noise from other equipments.
