10. Appendix
10−1. Exchange method of fuze
Warning● When installation method for the fuse is wrong and/or the capacity of installed fuse is
inadequate, it causes and unexpected faulty of the instrument.
1
Turn OFF the power supply for the instrument.
2

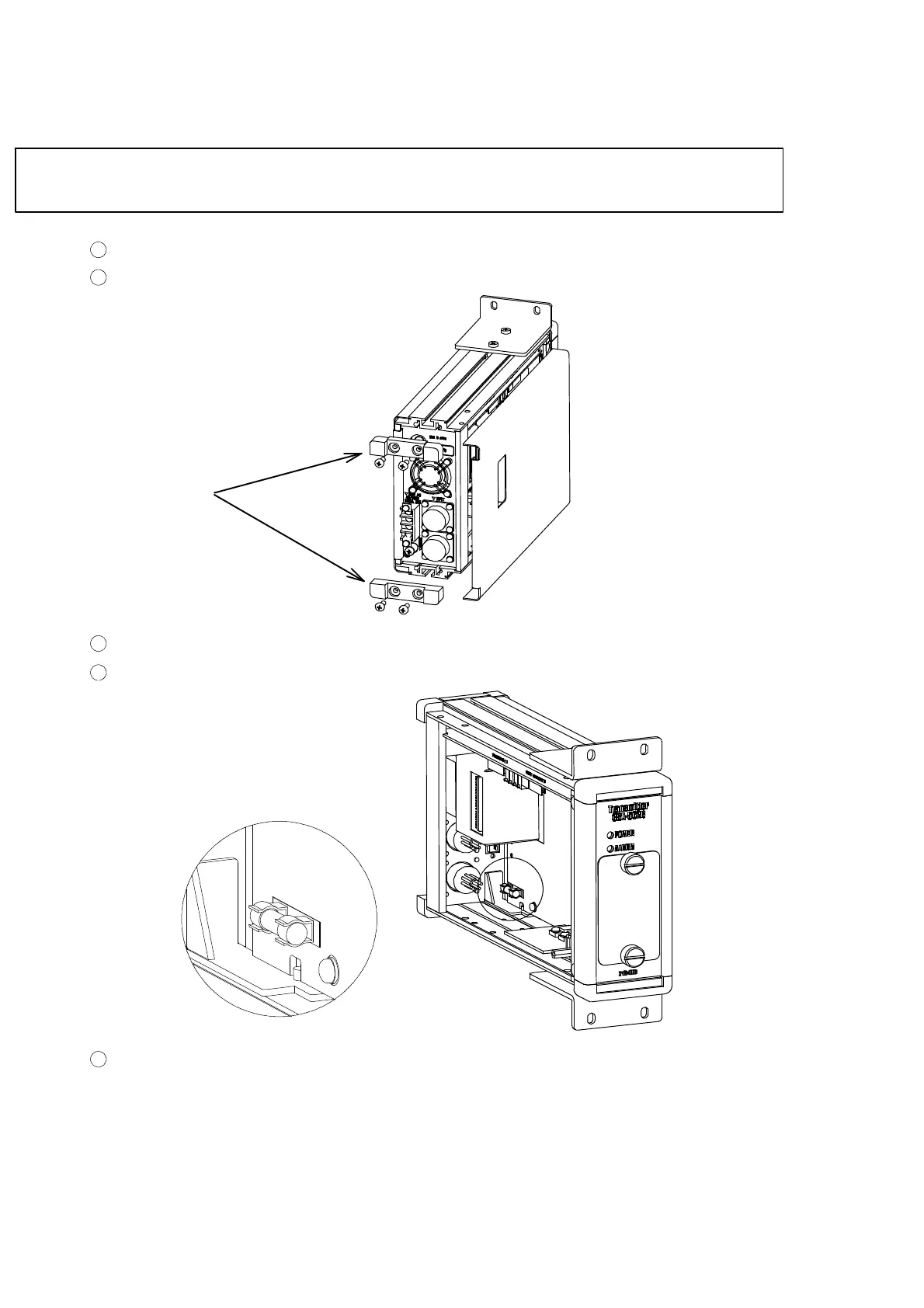

Remove the rear foot, and panel assembly.
Rear foot
3
Remove the cover of the left of the front.
4
Exchange the fuze installed in the power card
5
After the fuze is exchanged, the cover and the panel installation rear foot are stopped with the
screw.
