IV
(2) Installation
● When installing the instrument, install as referring to the following figures and secure
the space around the instrument.
● Please open the space of about 10mm between the equipments when two or more devices
are arranged and set up.

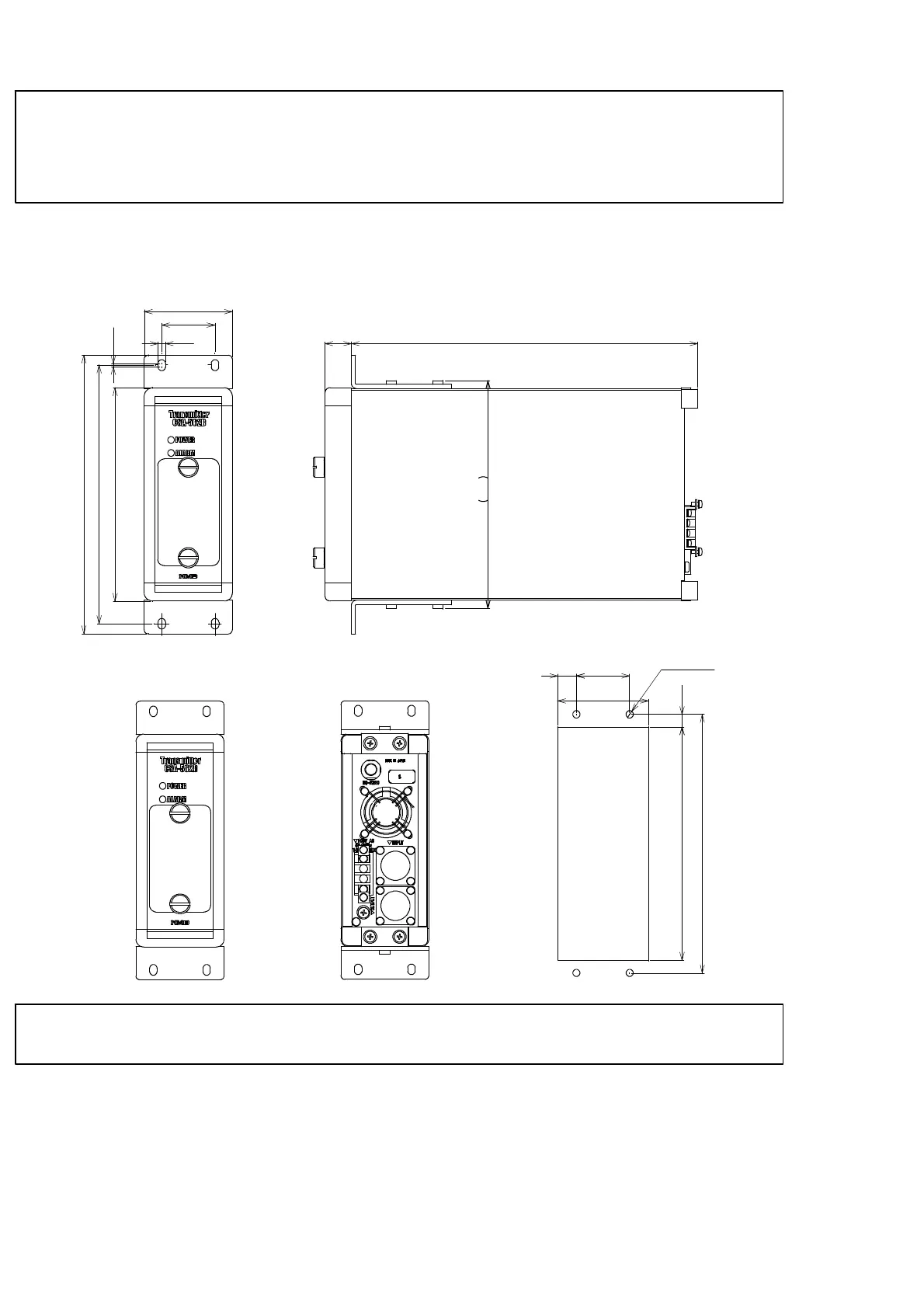

A size of each part and a necessary space for mounting are as follows.
Outline dimensions
Frong Side
Panel cut size (for example)
Rear
Front(Inside)
40
194
5.5
66
160
209
2.5
68
175
4014
9.5
194
172
20 260
φ5.5
Unit : mm
Warning● Please note the forllowing points to prevent any troublesome, or any electrical shock
when you set up the instrument.
D The tolerance of the power supply voltage and the frequency is AC85 V to
AC132 V 50/60 Hz.
D Please confirm the power supply voltage of this instrument. Please contact
us if there is an uncertain point.
To Next Page
