6−2. Writing/Reading by general command
Data is set in the general data area and command No. is set in the command No. area.
The instrument recognize that “General command request RY0002 (Request 2)”, and it execute to
write the data set in “General data area (RWr000C〜000D)” by “Selection of writing/reading out
(RY0003)” or “Command No.(RWw000E)”, or to reading the data into “General data area
(RWw000C〜000E)” to the instrument.
It responds to the master station by ”General command response RX0000 (response 2)” after
writing is completed.

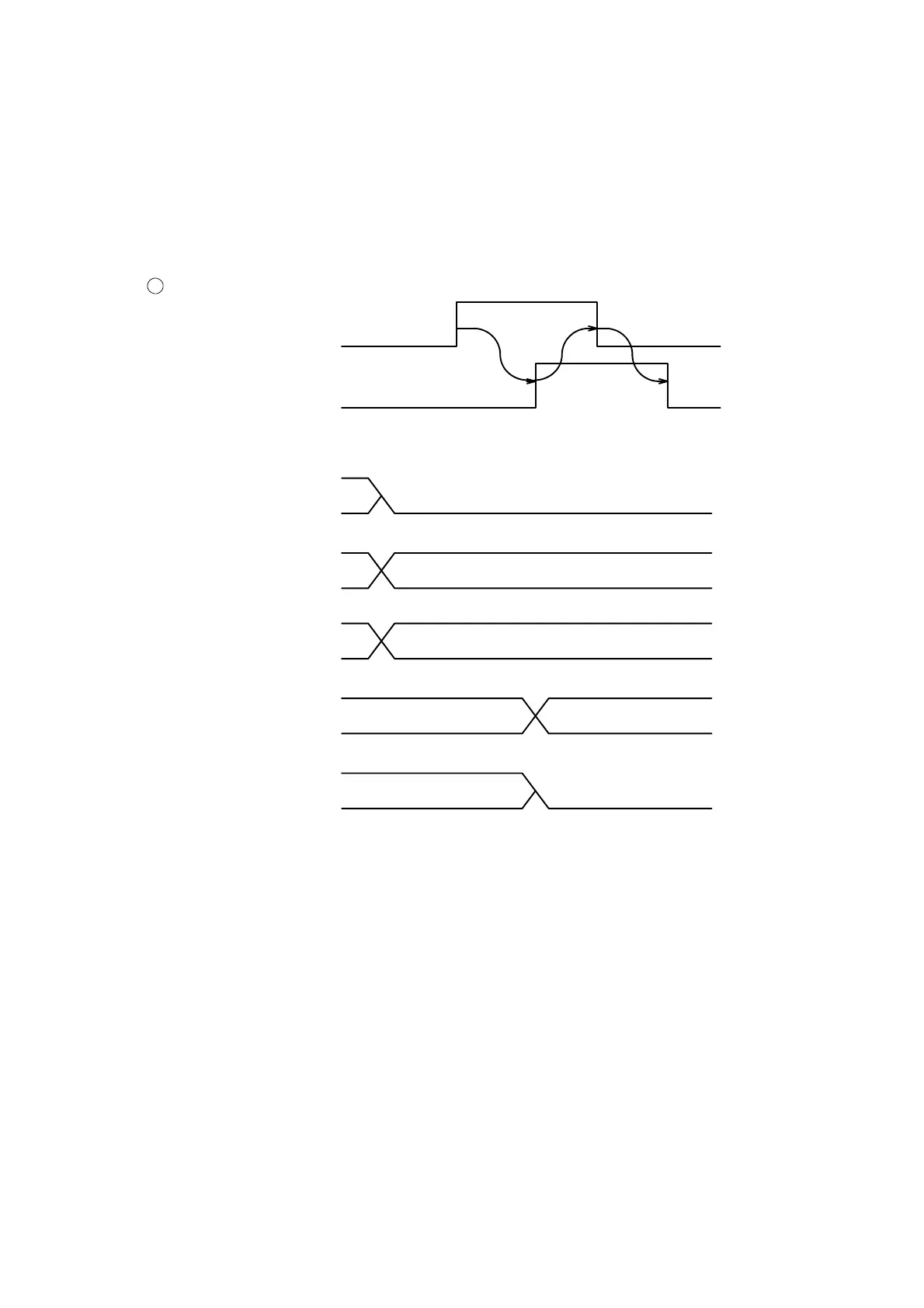

1
Writing request
General command request (Request 1)
(RY0002)
General command response (Response 1)
(RX0000)
Selection of writing or reading
(RWw000C)
(RY0003)
(RWw000D)
Command NO.
(RWw000E)
Command No.(Response)
(RWr010E)
Selection response of writing or
reading out
(RX0003)
General data
〜
