2. Name and function of each point

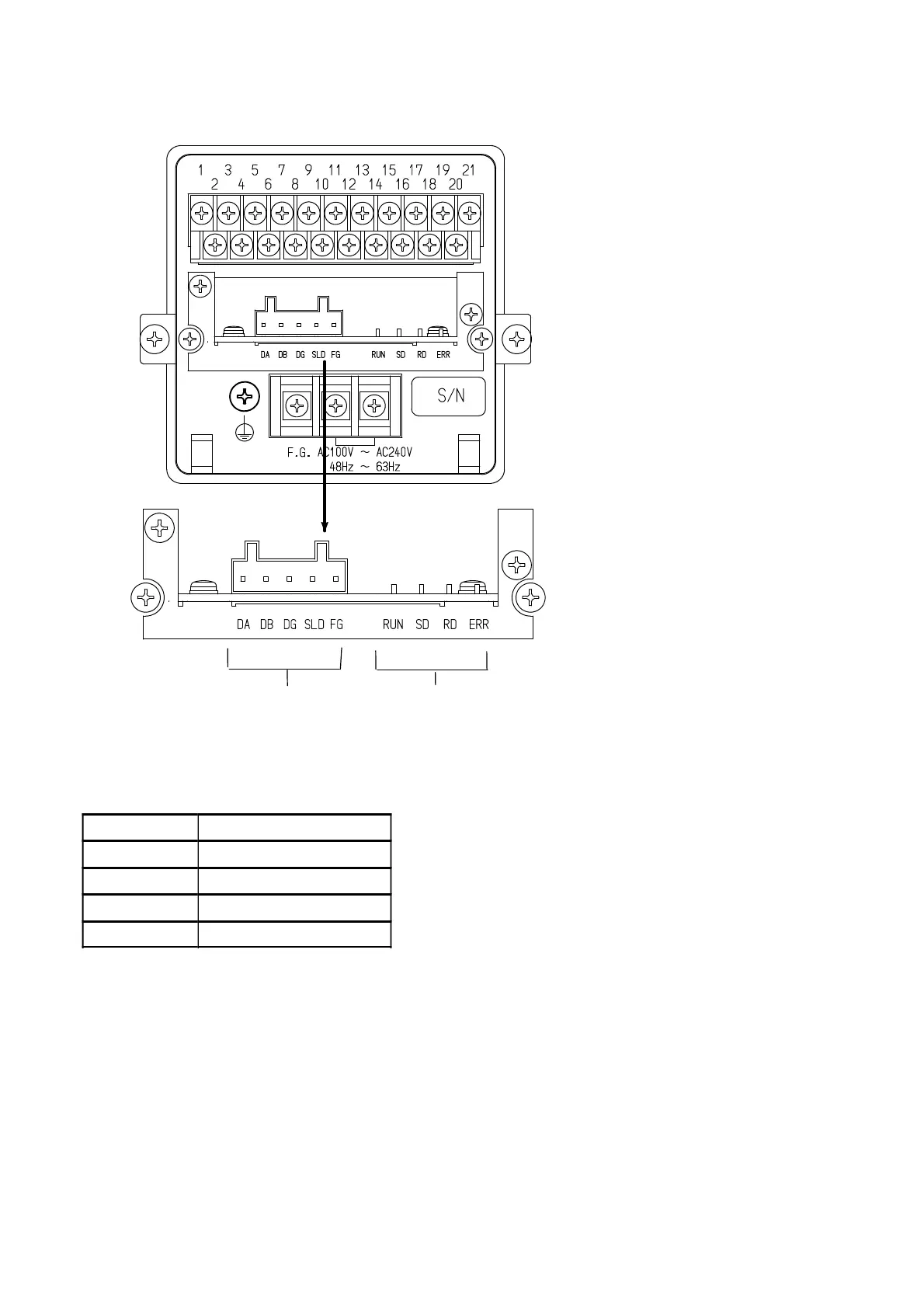

2−1. Rear panel CC−Link I/F point
Status LED
Connector for communication
(1) Connector for communication terminal block
Connector type terminal block for CC−LINK interface.
Connector type terminal block pin configuration is as follows.
DA
Signal cable DA side
DB Signal cable DB side
DG Signal cable ground
SLD Shield
FG Frame ground
Suitable plug：721−105/037−000 (WAGO) ※to be attached.
“SLD” and “FG” are connected in the instrument.
The internal circuit and photo coupler are insulated.
