6−3. Shift to status where it is possible to communicate
“Remote READY (RX007B)” is turned on along with the power supply turning on after
initialization (set initialing) completion is done and it is assumed the status where it is possible to
communicate.
Moreover, remote READY is turned off when ”Set initial request (RY0079)” transmitted by the
master station is turned on, and initialization is executed. It responds to the master station after
initialization is completed by turning on ”Set initial response (RX0079)”.
That the master station recognizes turning on ”Set initial response (RX0079)”, and ”Set initial
response (RX0079)” is turned off makes that ”Set initial request (RY0079)” is turned off, and
remote ready is turned on.

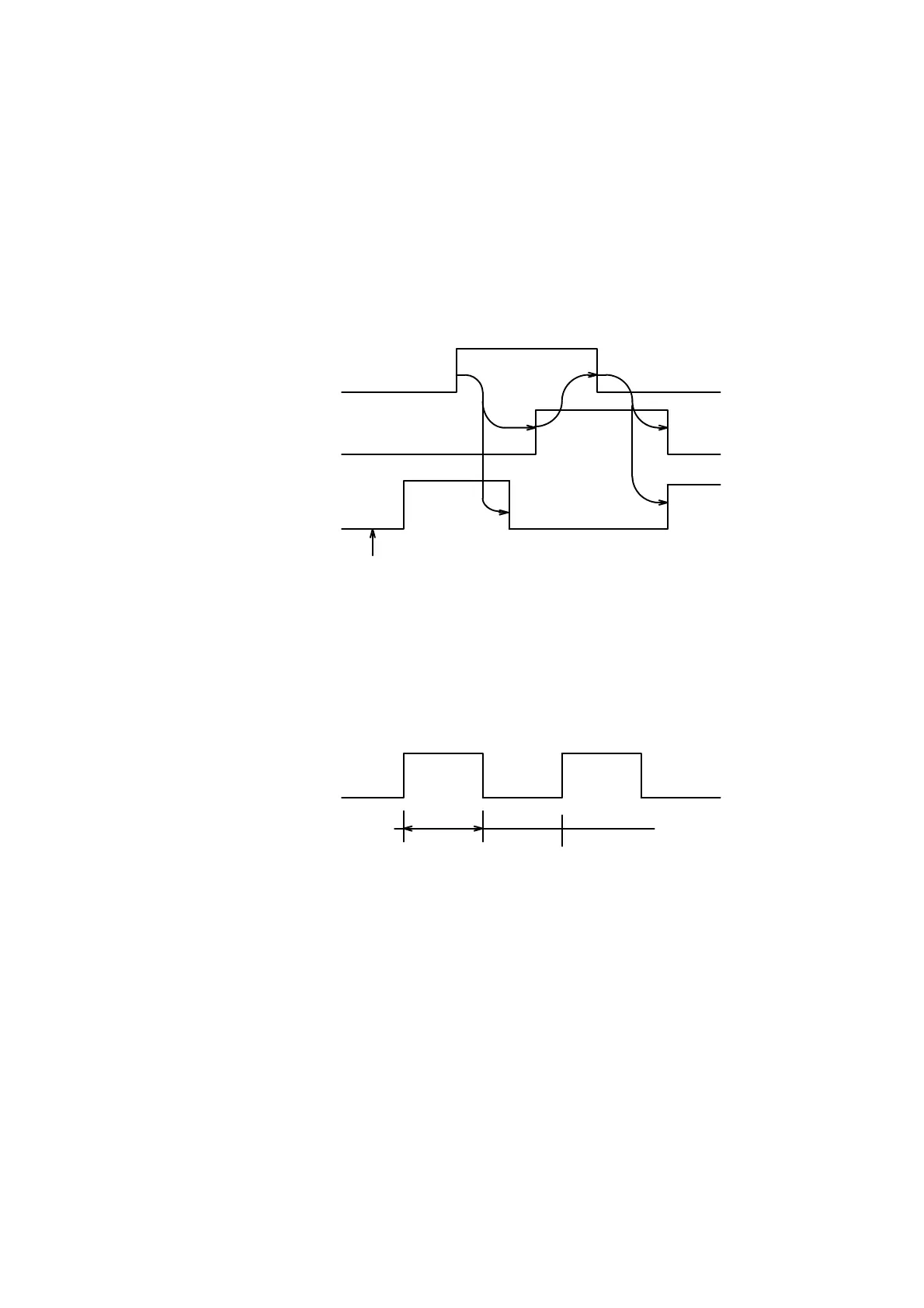

Set initial request
(RY0079)
Set initial response
(RX0079)
Remote ready
(RX007B)
Power supply turning on
6−4. CPU normal operation signal
When the instrument operates normally, the condition of ”CPU normal operating signal
(RX0006)” is reversed at 0.5 seconds interval.
CPU normal operation
(RX0006)
0.5 s
