3. Connecting method
3−1. Connector pin configuration for communication
Refer to “2−1. Rear panel(1) Connector for communication terminal block”.
3−2. Cable length
Relation of baud rate and total extension length as follows.
Baud rate
Cable length
156 kbps 1 200 m or less
625 kbps 600 m or less
2.5 Mbps 200 m or less
5 Mbps 150 m or less
10 Mbps 100 m or less
3−3. Connection
Please follow the instruction of connecting wires on the sequencer instruction manual about
connecting wires.

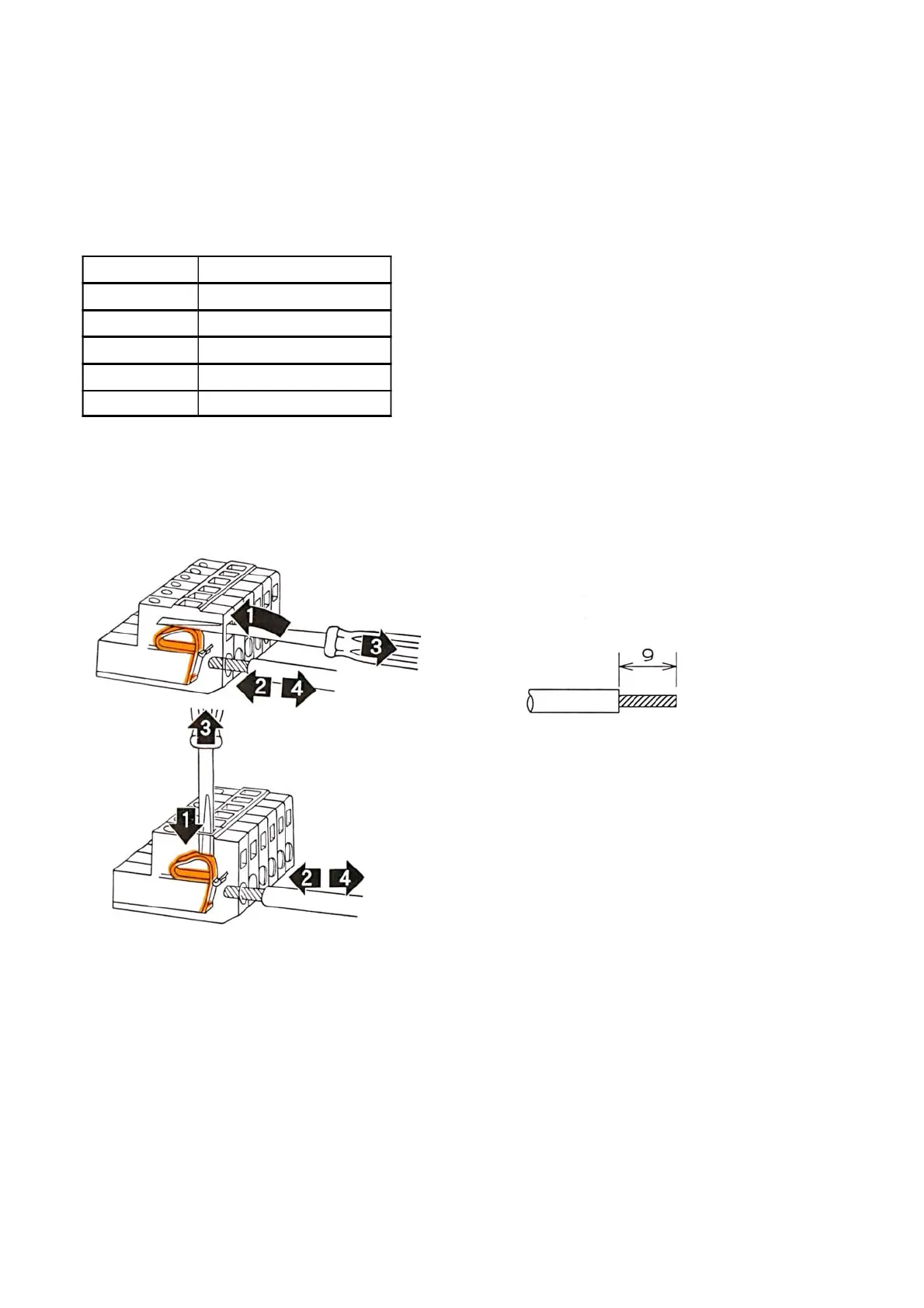

Striped electrical cable length
1) Put in the driver minus type.
2) Insert the electrical cable.
3) Pull out the driver minus type.
4) Confrim wire connection by a few tension.
