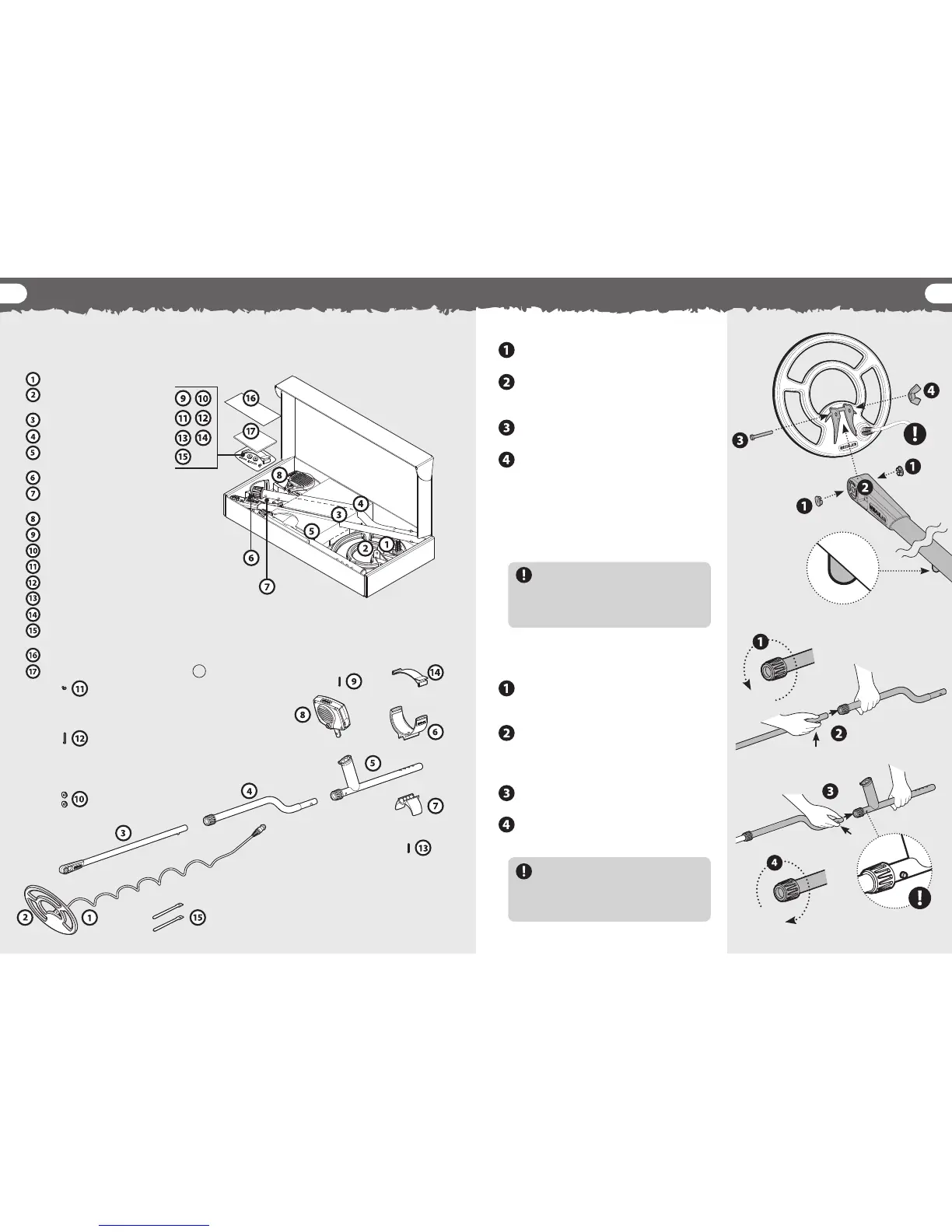

Connecting the Coil
Plug the two rubber washers into the holes
on either side of the lower shaft yoke.
Slide the yoke into the yoke bracket on top
of the coil. Ensure that the spring loaded pin
in the lower shaft is pointing downwards.
Insert the plastic bolt through the yoke
and the yoke bracket.
Fasten with the plastic wing nut provided,
being careful not to damage the thread
of the bolt by over-tightening. This may
need to be loosened to adjust the coil to a
comfortable detecting angle.
The coil cable is directly wired into the
coil and is not removable.
Any attempt to disconnect this cable
will void your warranty.
Shaft Assembly
Ensure that the twistlocks of the shafts
are loosened by rotating them counter-
clockwise.
Compress the spring loaded pin in the lower
shaft and slide it into the middle shaft until
the pin reaches the adjustment holes. The
pin will spring out and click into place.
Attach the middle shaft to the upper
shaft in the same way.
Once shafts are assembled, lock them in
position by rotating twistlocks clockwise.
The upper shaft assembly location
uses two spring loaded pins to
strengthen the joint, one on each side
of the shaft.
List of Parts
Before assembling your X-Terra 705 please
check that the package includes these parts:
Coil
Skidplate (tted to coil)
Lower shaft
Middle shaft
Upper shaft
Armrest
Stand
Control box
Control box screw
Rubber washers (2)
Plastic wing nut
Plastic bolt
Armrest screw
Armrest strap
Velcro tabs (2)
Warranty card
Instruction manual you’re holding it
:-)
54
assembling your x-terra 705
