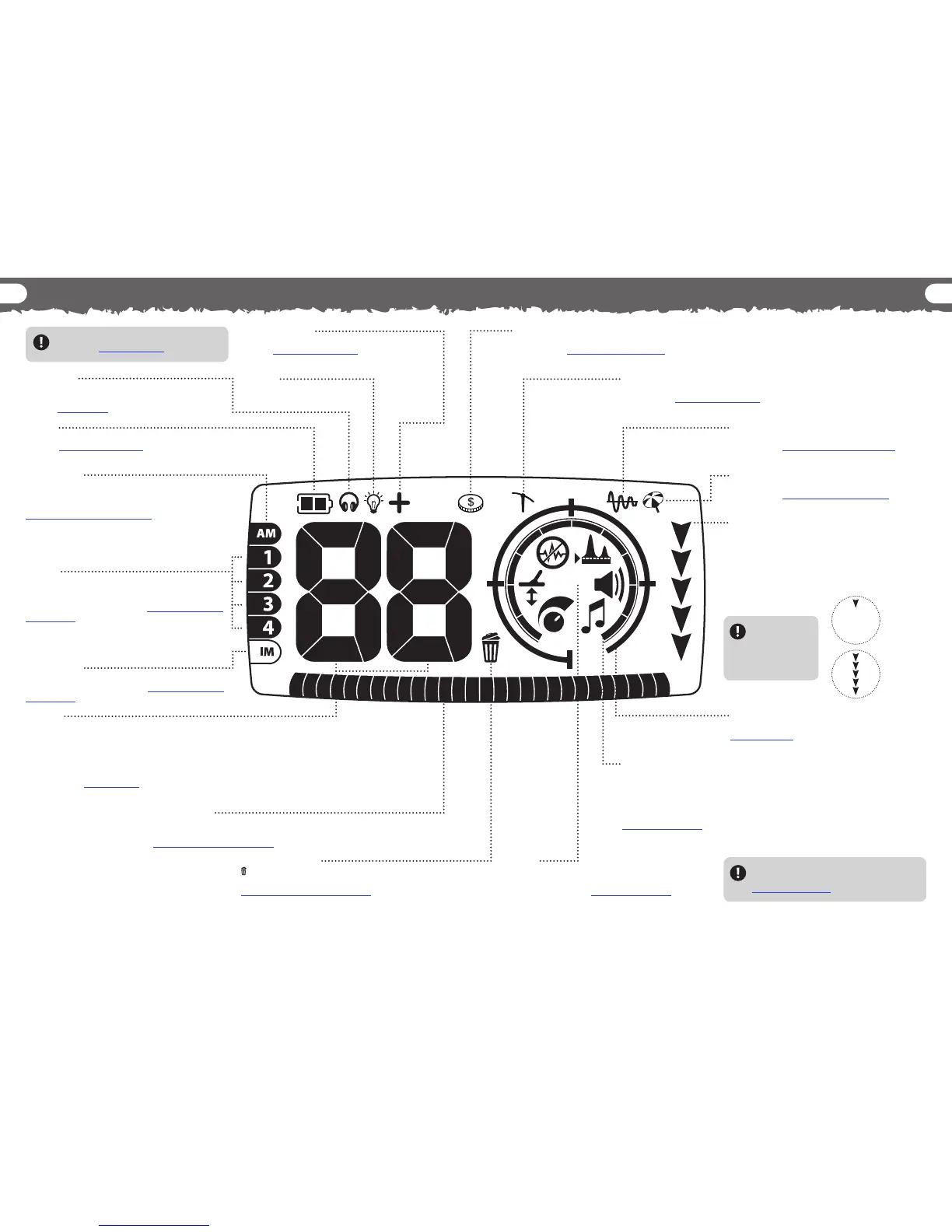

lcd layout
Ground Balance can only be accessed
via the Ground Balance button.
(Ground Balance, p. 40)
Patterns
Preset Discrimination Patterns are used to suit dierent
search preferences (Coin & Treasure Mode only).
The X-Terra 705 has four patterns. (Preset Discrimination
Patterns, p. 22).
Menu Scale
Consists of 10 segments within a circular scale line.
This works in conjunction with the Numeric ID to
show the value of the selected setting adjustment.
The Menu Scale also works with Pinpoint to indicate
how close the coil is to the target
(Menu Operation, p. 28).
Reject Identication
appears when rejecting a discrimination segment. It
disappears when accepting a discrimination segment
(Editing Discrimination Patterns, p. 25).
Depth Indicator
The depth indicator is a relative guide to how deep a
target is. The more arrows displayed, the deeper the
target is likely to be (Coin & Treasure Mode only).
1 arrow is approximately 0–2” (0–5 cm).
Targets at depths greater than 10” (25 cm) will
display 5 arrows.
Coin & Treasure Mode
This icon indicates that the Coin & Treasure Mode has
been selected (Coin & Treasure Mode, p. 18).
Battery
This icon indicates how much power is left in the
batteries (Battery Behaviour, p. 45).
Tracking
This icon indicates that Tracking Ground Balance has
been selected (Adjusting Ground Balance, p. 42).
Headphones
This icon indicates that headphones are connected and
that the headphone Volume and Threshold have been
selected (Volume, p. 36).
All Metal (AM)
Indicates that the All Metal Pattern has been selected.
This pattern has no discrimination and will allow signals
from all types of metals, both ferrous and nonferrous
(Preset Discrimination Patterns, p. 22).
Iron Mask (IM)
Indicates that the Iron Mask discrimination has been
selected (Prospecting Mode only) (Preset Discrimination
Patterns, p. 22).
Target ID
Target ID numbers range from -8 to 48. Negative
numbers indicate ferrous targets and positive numbers
indicate nonferrous targets (Coin & Treasure Mode).
These numbers also have other functions. They are used
when adjusting menu settings and for displaying the
Iron Mask value (Target ID, p. 20).
Beach
This icon indicates that Ground Balance (Beach) has
been selected (Ground Balance (Beach), p. 40).
Menu
A list of settings (Sensitivity, Noise Cancel, Threshold,
Volume and Tones) that can be adjusted to customise
personal preferences (Menu Operation, p. 28).
Prospecting Mode
This icon indicates that the Prospecting Mode has
been selected (Prospecting Mode, p. 19).
Discrimination Scale
Used for Pattern Discrimination (Coin & Treasure Mode
only) and Iron Mask Discrimination (Prospecting Mode
only) (Pattern Discrimination Scale, p. 21).
Pinpoint
Indicates that Pinpoint has been activated
(Pinpointing, p. 26).
Headphones are not included with the
X-Terra 705 (Accessories, p. 52).
Actual depth
will be more
accurate for
coins than junk
ferrous targets.
Target ID Stability
This icon indicates that Target ID Stability has been
selected (Target ID Stability, p. 20).
Deep target
Shallow target
Backlight
This icon indicates when
the Backlight is On.
