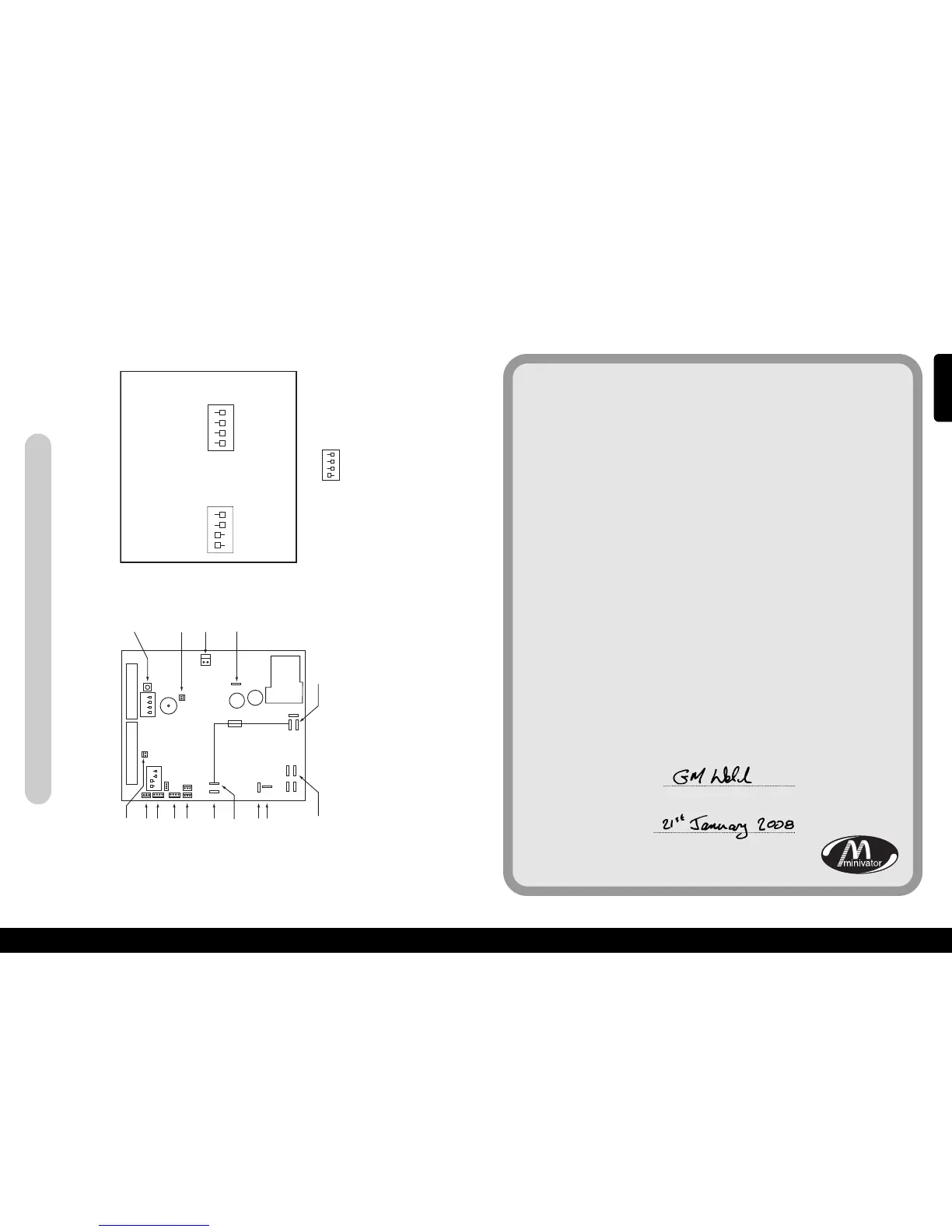

INFRARED/RADIO
LEARN BUTTON
NO CONNECTION
REQUIRED
BRAKE CONNECTOR
CHARGE +
BATTERY POSITIVE
BATTERY NEGATIVE
MOTOR 1 (BLACK)
MOTOR 2 (WHITE)
+24V FUSED
HINGE DATA (GREY CABLE)
NO CONNECTION REQUIRED
DIP SWITCH 1
5A
QUICK BLOW
DIP SWITCH 2
NO CONNECTION REQUIRED
7 SEGMENT DISPLAY
NO CONNECTION
REQUIRED
9 WAY CONNECTOR
ON
ON
1 2 3 4
1 2 3 4
8 WAY CONNECTOR
INFRARED/RADIO
IF ANY DIP SWITCHES ARE CHANGED, PLEASE TURN OFF LIFT,
WAIT 10 SECONDS, THEN POWER THE LIFT BACK ON.
DIP 1
ON
1
2 3 4
DIP 2
ON
1
2 3 4
KEY:
DIP SWITCH SETTING CSE126 (POWER SWIVEL BOARD)
THIS SETTING WILL ENABLE POWER SWIVEL MODE
ON
1
2 3 4
HALF SPEED UP
HALF SPEED DOWN
PING DISABLE
PLATFORM DISABLE
H
INGE DISBLE
LEFT HAND LIFT
SLOW RAMP
U
NUSED
FULL SPEED UP
F
ULL SPEED DOWN
PING ENABLE
PLATFORM ENABLE
HINGE ENABLE
RIGHT HAND LIFT
F
AST RAMP
U
NUSED
xAppendix 3 – Certificate of Conformityx
We
Minivator Ltd
of
82 First Avenue
Pensnett Estate
Kingswinford
West Midlands
DY6 7FJ, England.
Declare under our sole responsibility that the product
Minivator Simplicity+ 950 Stairlift
has been manufactured in conformity with the following
standards and specification:
BS5776:1996 Powered Stairlifts
ISO 9386-2 2000-11-01
To which this declaration relates is in conformity with the following
national standards:
Electro Magnetic Compatibility Directive 89/336/EEC
Low Voltage Directive – 73/23/EEC
Machinery Directive – 98/37/EEC
Signed:
Name: G. Welch
Date:
Position: Engineering Manager
Simplicity+ Left Hand and Right Hand Standard
