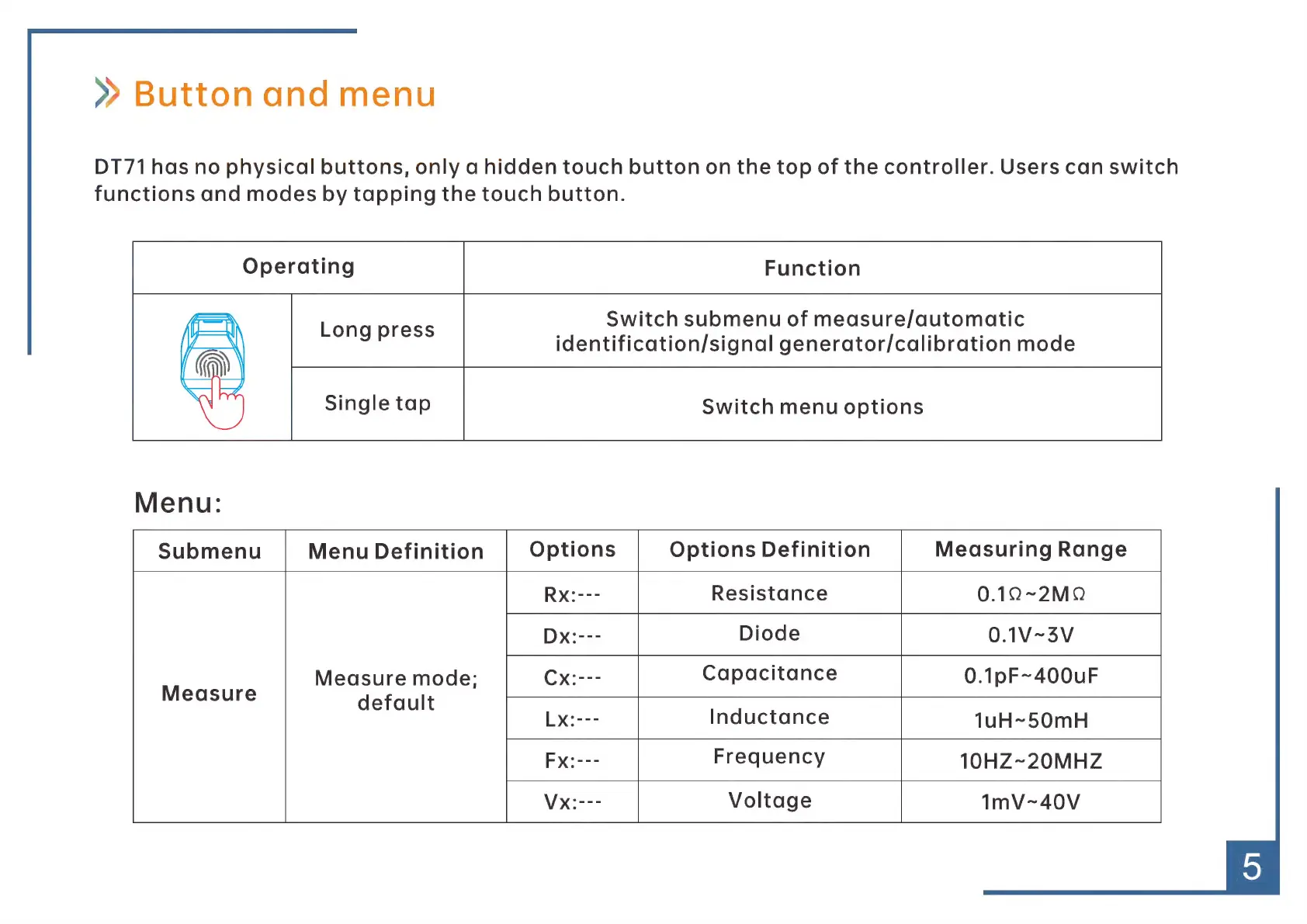

» Button and menu
DT71 has no physical buttons, only a hidden touch button on the top of the controller. Users can switch
functions and modes by tapping the touch button.
Operating Function
Switch submenu of measure/automatic
Long press : aa 6 d d
identification/signal generator{/calibration mode
Menu:
Submenu Menu Definition Options Options Definition Measuring Range
Rx:--- Resistance 0.12-2MO
Dx:--- Diode 0.1V-3V
Measure mode; Cx:--- Capacitance 0.1pF-400uF
Measure
default
B
Ge
Inductance
1uH=-50mH
Fx:---
Frequency
10HZ-20MHZ
Vx:---
Voltage
1mV-40V
