14 | minnkotamotors.com
©2023 Johnson Outdoors Marine Electronics, Inc.

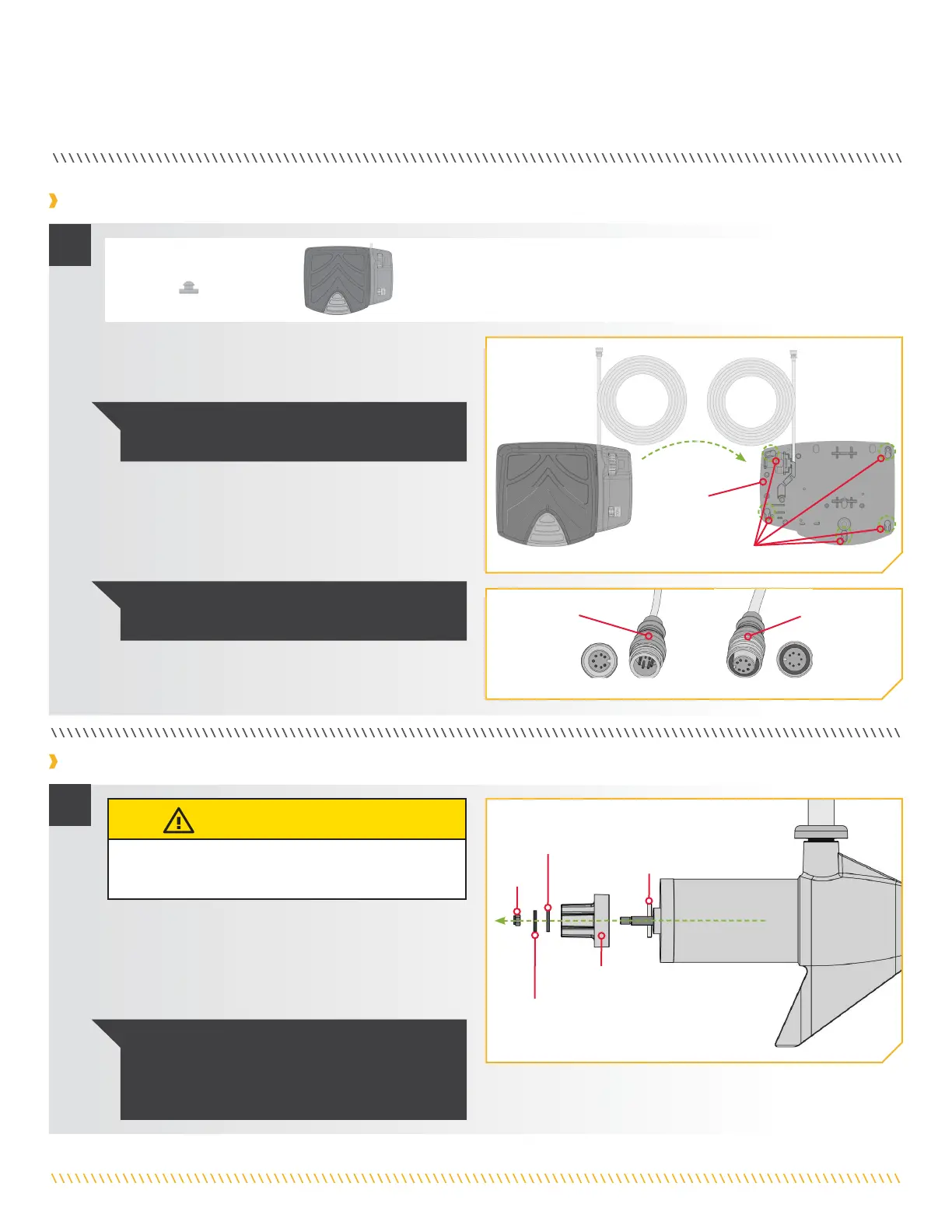

INSTALLING THE FOOT PEDAL
NOTICE: The pads are recommended when using
the Foot Pedal on non-carpeted surfaces.
Foot Pedal Foot Pedal
BottomBottom
Foot Pedal Foot Pedal
Pad Pad
PlacementPlacement
ITEM(S) NEEDED
#9 x 5
#10 x 1
a. Take the Foot Pedal (Item #10) and turn it over.
Put a Foot Pedal Pad (Item #9) in each of the
pad locations.
1
Installing the Prop
Installing the Foot Pedal
a. While holding the Shipping Spacer with a pliers
or vise grip, remove the Prop Nut, Red Shipping
Washer, Prop Washer and Spacer, being careful
not to lose the Drive Pin. Reuse the Prop Nut, Prop
Washer and Drive Pin to attach the Propeller.
1
CAUTION
Disconnect the motor from the battery before
beginning any prop work or maintenance.
NOTICE: The Shipping Spacer and Red Shipping
Washer are for shipping purposes only and must
be discarded. The Red Shipping Washer will rust if
used to attach the Propeller.
Prop Prop
NutNut
Shipping Shipping
Spacer Spacer
(discard)(discard)
Red Red
Shipping Shipping
Washer Washer
(discard)(discard)
Prop Prop
WasherWasher
Drive Drive
PinPin
NOTICE: The connectors are keyed to prevent
reversed installation.
b. Locate the 7 pin Foot Pedal Connector on the Foot
Pedal and the Power Connector from the Motor.
Align the pins of the Foot Pedal Connector to the
matching socket end of the Power Connector. Firmly
push the Plug together.
Foot Pedal
Connector
Power Connector
from Motor
To Next Page
