8 | minnkotamotors.com
©2023 Johnson Outdoors Marine Electronics, Inc.
INSTALLATION
INSTALLING THE POWERDRIVE
Your new PowerDrive comes with everything you’ll need to directly install it to the boat. This motor can be directly mounted to the boat or
coupled with a Minn Kota quick release bracket for ease of mounting and removal. For installation with a quick release bracket, refer to
the installation instructions provided with the bracket. For compatible quick release mounting brackets and to locate your nearest dealer,
visit
minnkotamotors.com. To install the motor directly to the boat, please follow the instructions provided in this manual. Please review
the parts list, mounting considerations and tools needed for installation prior to getting started. For additional product support, please visit
minnkotamotors.com.

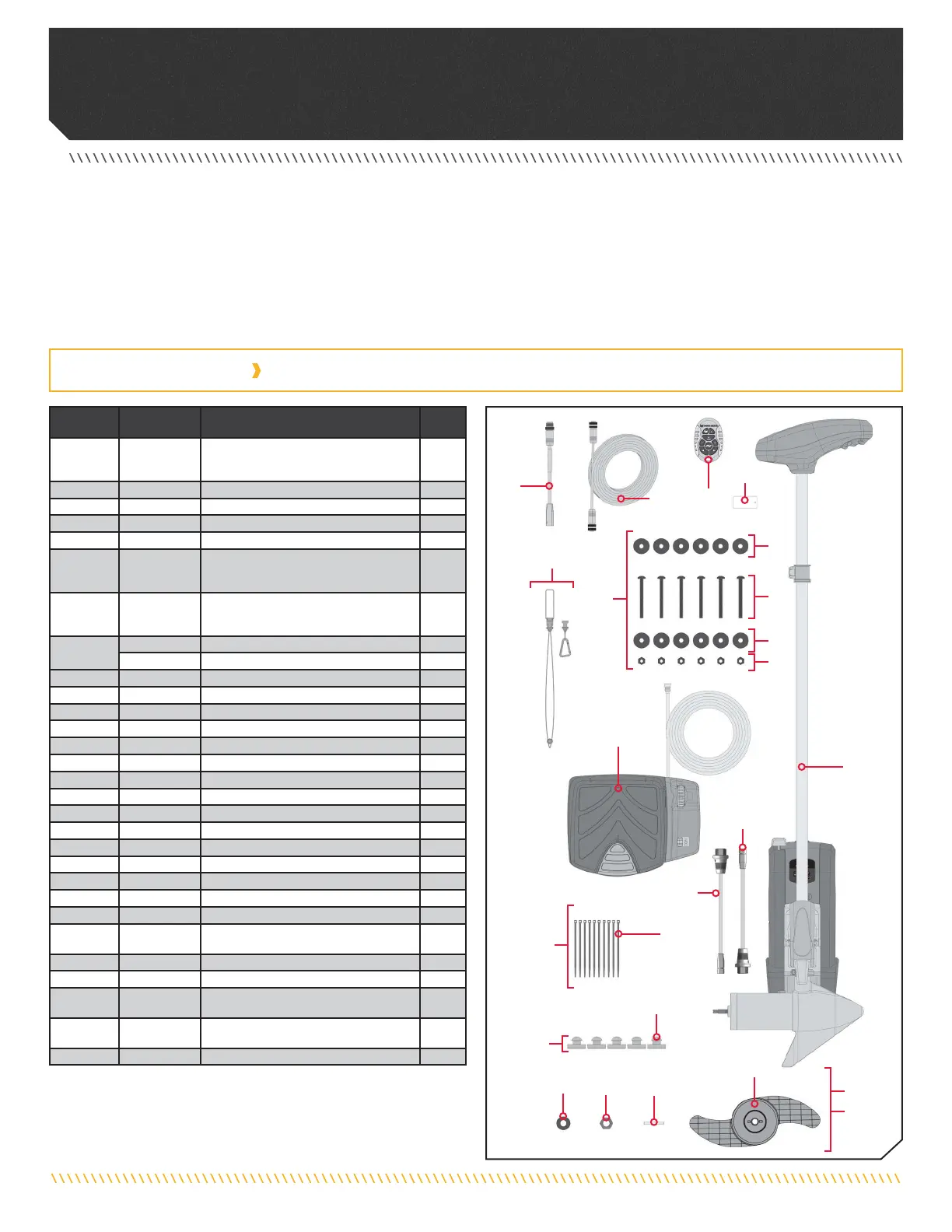

INSTALLATION PARTS LIST
p
Not shown on Parts Diagram.
✖
This part is included in an assembly and cannot be ordered individually.
t
Only available with models factory installed with GPS.
l Only available with models factory installed with Dual Spectrum CHIRP
Item /
Assembly
Part # Description Qty.
A
Includes
1 - 4
2994864 BAG ASSEMBLY - (BOLT, NUT, WASHERS) 1
1 2263462 BOLT-MOUNTING-1/4X2 W/STG 6
2 2261713 WASHER-1/4 6
3 2263103 NUT NYLOK 1/4-20 MTG 6
4 2301720 WASHER-MOUNTING RUBBER 6
U
Includes
5 - 8
1378170 PROP KIT 2091170 PWR PRP 1
V
Includes
5 - 8
1378121 PROP IND 2061122 (PWR PROP) 1
5
2061122 PROP-POWER (3.25") 1
2091170 PROP-WW2 (3 5/8") REAMED SUB) 1
6 2151726 WASHER-5/16 SS 1
7 2053101 NUT-PROP NYLOC 1
8 2092600 PIN-DRIVE 1.06" LG SS 1
Z Includes 9 2994859 BAG ASY-TERROVA/V2,RUB.BUMPERS 1
9 2325110 PAD, FOOT PEDAL PD 5
10 2994728 FOOT PEDAL ASSEMBLY, PD 1
11
✖
MOTOR ASSEMBLY 1
12 2390802 t LANYARD W/CARABINR, IP RMT 1
13 2994175 t REMOTE ASM, MICRO REMOTE 1
14 2394110 t TAG, MICRO REMOTE 1
15 490384-4 t CABLE, ETHERNET (M12-M12) 30' 1
16 490380-1 t CABLE, ETHERNET PIGTAIL-700 HD 1
p
23949112 t QCK REF.GUIDE, iP MICRO RMT BT 1
p
2317126 INSTRC-INSTALL, POWERDRIVE FW 1
p
2297165 MANUAL-DISCLAIMER,DWNLOAD INFO 1
D
Includes 17
2996300 TIE WRAP ASM, 60" 1
17 2206300 TIE WRAP, LOW PROFILE 4" 10
p
2294950 OBN & REMOTE PAIR INSTRUCT 1
18 2994960
BAG ASM, CABLE ADPT, 490518-1
*490518-1* *MKR-MDI-2*
1
19 2994961
BAG ASM, CABLE ADPT, 490537-2
*490537-2* *MKR-MI-1*
1
p
2207131 STANDARD QS SETUP GUIDE 1
19
18
