minnkotamotors.com | 41
©2023 Johnson Outdoors Marine Electronics, Inc.

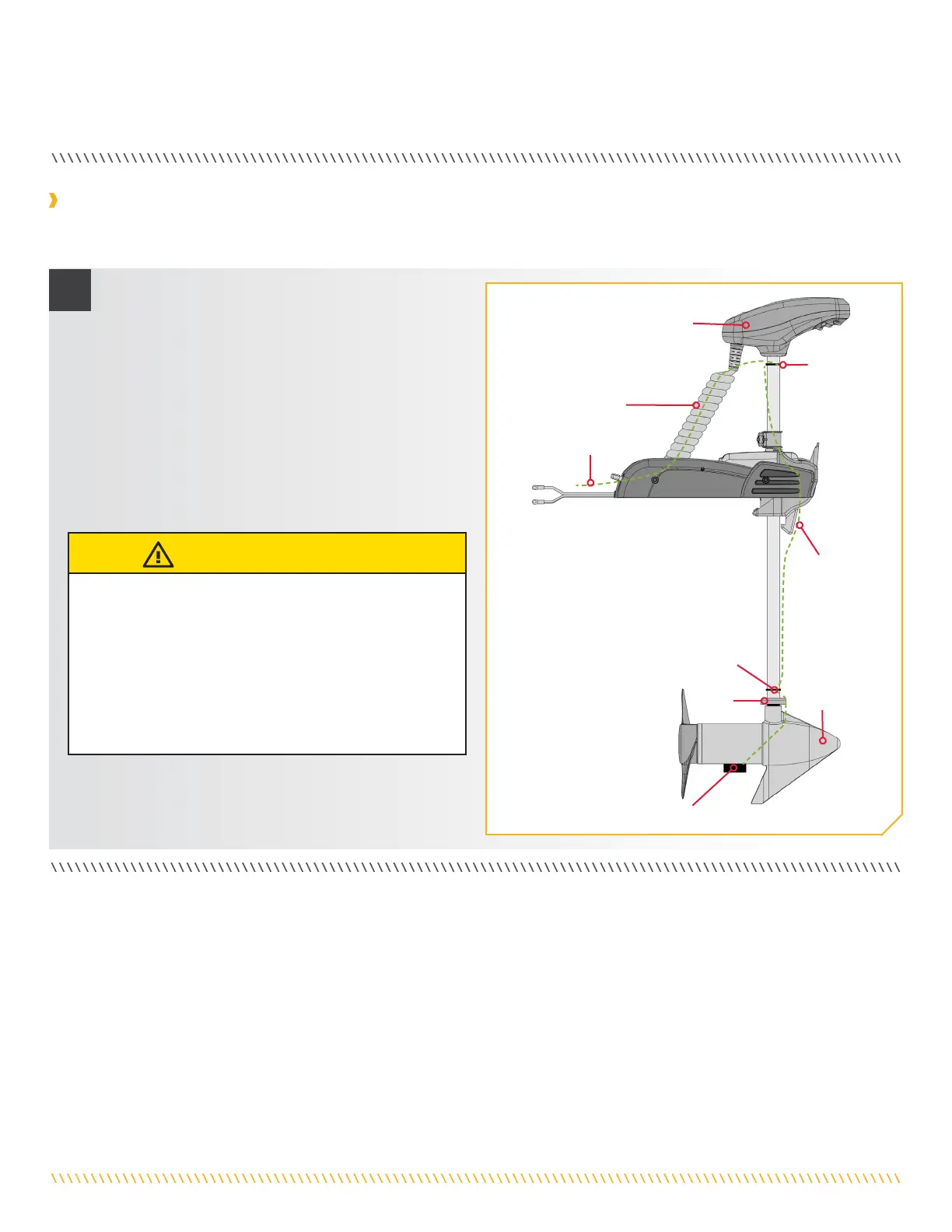

INSTALLING AN EXTERNAL TRANSDUCER
Your trolling motor may be pre-installed with a Dual Spectrum CHIRP transducer system. If an external transducer is not included with
your trolling motor. An external transducer can be installed onto the motor.
Installing An External Transducer
a. Mount the External Transducer according to
directions provided with the transducer.
b. Leave enough slack in the Transducer Cable
between the Lower Unit and Motor Control Head to
allow the motor to properly stow and deploy.
c. Use two Cable Ties to secure the Transducer Cable
to the Shaft just above the Latch Collar and just
below the Motor Control Head.
d. Run the Transducer Cable through the Coil Cord to
the fish finder.
Slack
Cable
Tie
Latch
Collar
Lower Unit
Cable Tie
External Transducer
Transducer Cable
Coil Cord
Control Head
1
CAUTION
Not following the recommended wire routing for the External
Transducer may cause damage to the product and void
your product warranty. Take care to test the length and
placement of cable to be sure that there is enough slack
where needed and that cables are free of being entangled
in moving parts. Routing the cables in any way other than
directed may cause damage to the cables by being pinched
or severed.
To Next Page
