minnkotamotors.com | 9
©2023 Johnson Outdoors Marine Electronics, Inc.

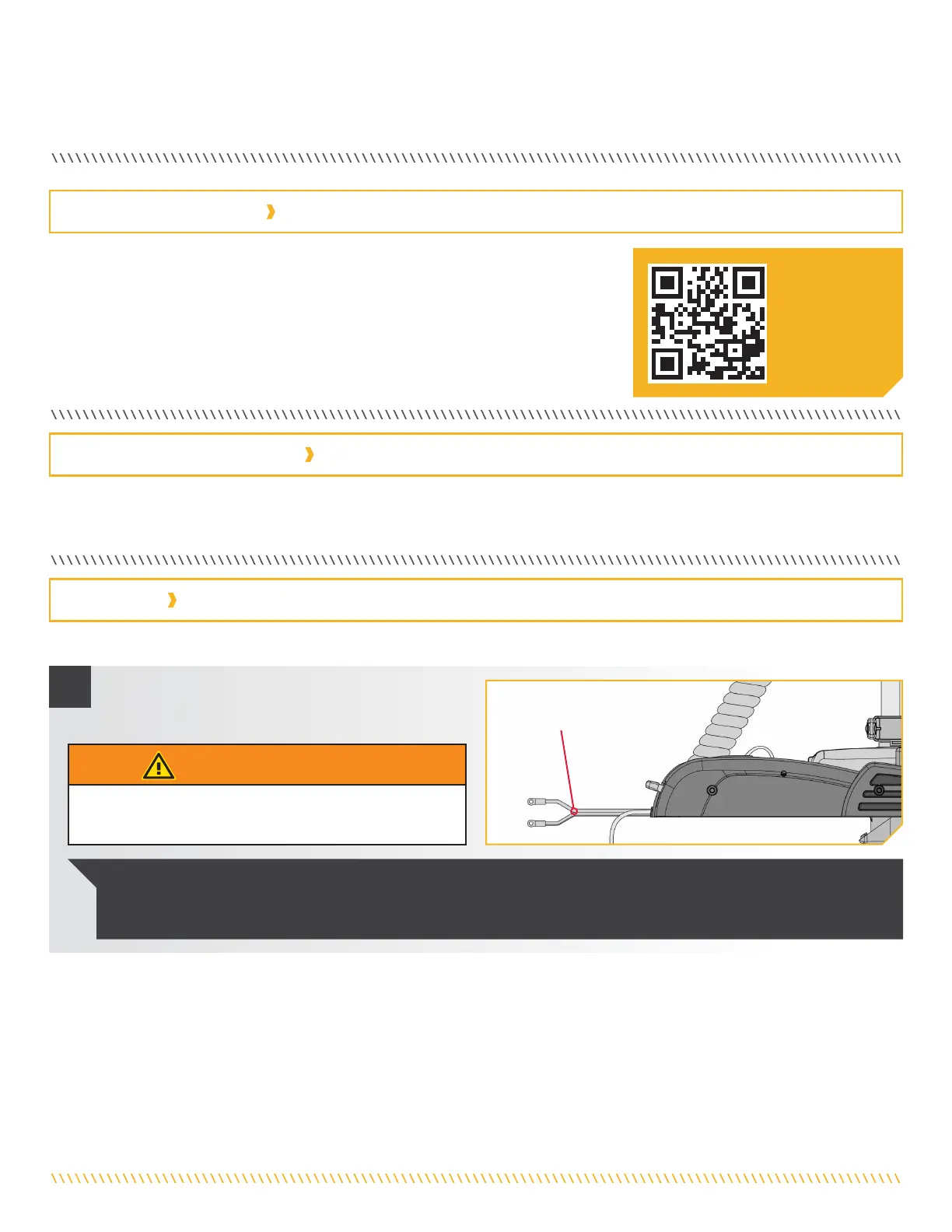

INSTALLING THE POWERDRIVE
• #3 and #2 Phillips Screw Driver
• Drill
• 9/32” Drill Bit
• 7/16” Box End Wrench
• A second person to help with
the installation
• Pliers or Vice Grip
It is recommended that the motor be mounted as close to the centerline of the boat as
possible. Make sure the area under the mounting location is clear to drill holes and install
nuts and washers. Make sure the motor rest is positioned far enough beyond the edge of
the boat. The motor must not encounter any obstructions as it is lowered into the water
or raised into the boat when stowed and deployed. Consider a quick release or adapter
bracket with the installation of your motor. To view a list of accessories, please visit
minnkotamotors.com.
INSTALLING THE POWERDRIVE
MOUNTING CONSIDERATIONS
View accessories
available for your
trolling motor at
minnkotamotors.com.
TOOLS AND RESOURCES REQUIRED
INSTALLATION
a. Make sure that the Power Cables from the battery
are disconnected, or that the breaker, if equipped,
is "o".
Power CablesPower Cables
1
WARNING
Make sure the motor is mounted on a level surface and is not
connected to a power source.
NOTICE: The PowerDrive has no power switch. When the Power Cables are connected to a battery, the PowerDrive is "on".
When the Power Cables are disconnected from the battery, the PowerDrive is "o". If the Power Cables are connected to a
breaker, the PowerDrive is "on" when the breaker is "on" and "o" when the breaker is "o".
To Next Page
