INSTALLING THE POWERDRIVE

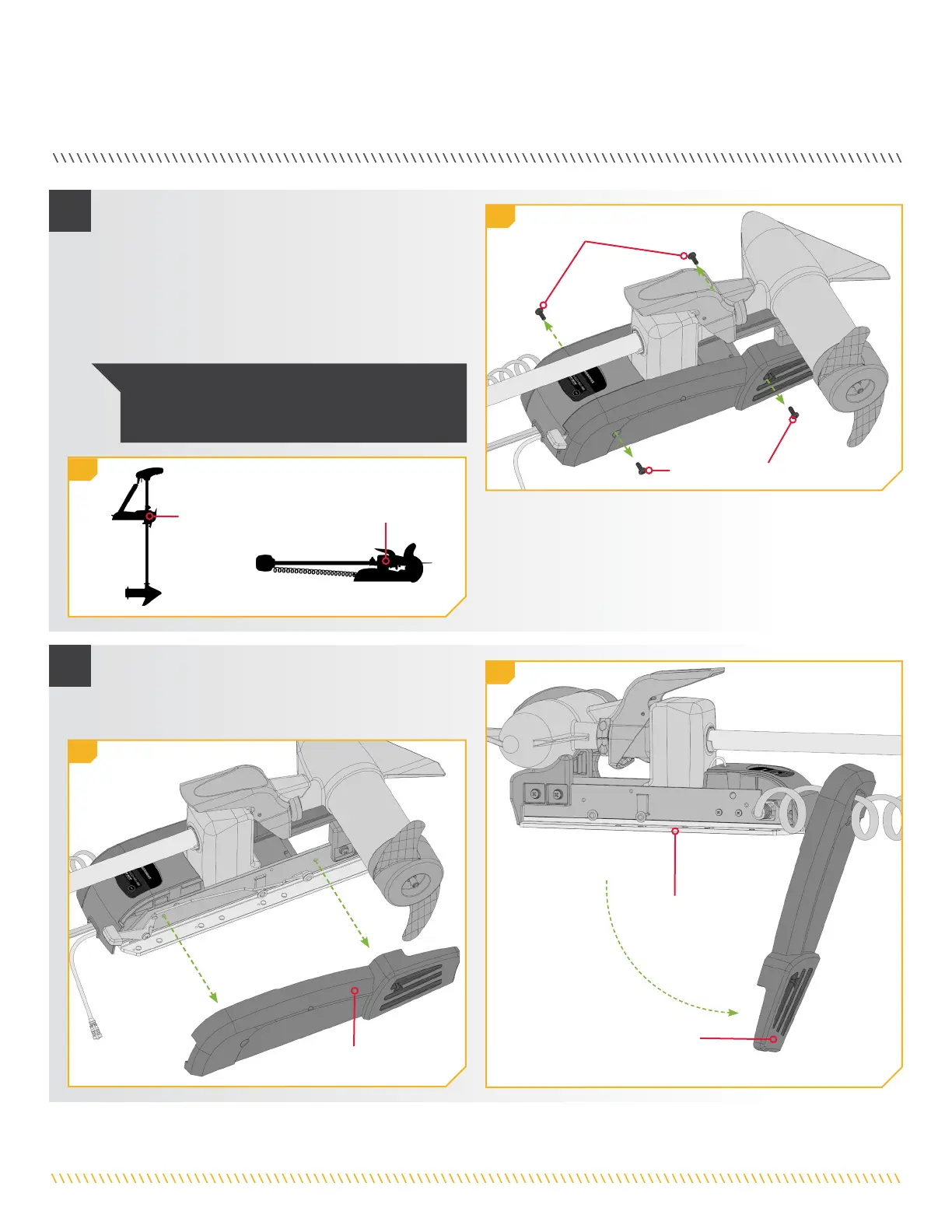

d. Remove the Right Sideplate.
e. Swing the Left Sideplate out and away from the
Base Extrusion.
Right SideplateRight Sideplate
Left SideplateLeft Sideplate
Base ExtrusionBase Extrusion
3
3e
3d
b. Place the mount on an elevated, level surface such
as a workbench or the tailgate of a pickup. The
motor, as removed from the box, should be in the
stowed position.
c. Remove the four sideplate screws using a #3 or #2
Phillips screwdriver. Two of these screws will be
located on each side of the mount.
NOTICE: This motor weighs approximately 30 lbs.
We recommend having a second person help with
the installation.
DeployedDeployed
StowedStowed
Sideplate ScrewSideplate Screw
2
2b
2c
Sideplate ScrewSideplate Screw

MINN KOTA PowerDrive Specifications

General

Type	Electric Trolling Motor
Steering	Electric
Control	Foot pedal or wireless remote
Voltage	12V or 24V
Mount	Bow
Speed Control	Variable
Digital Maximizer	Yes
Battery Requirement	12V or 24V deep cycle marine battery
Shaft Length	36", 42"
AutoPilot	Optional
i-Pilot Link	Optional
