minnkotamotors.com | 11
©2023 Johnson Outdoors Marine Electronics, Inc.

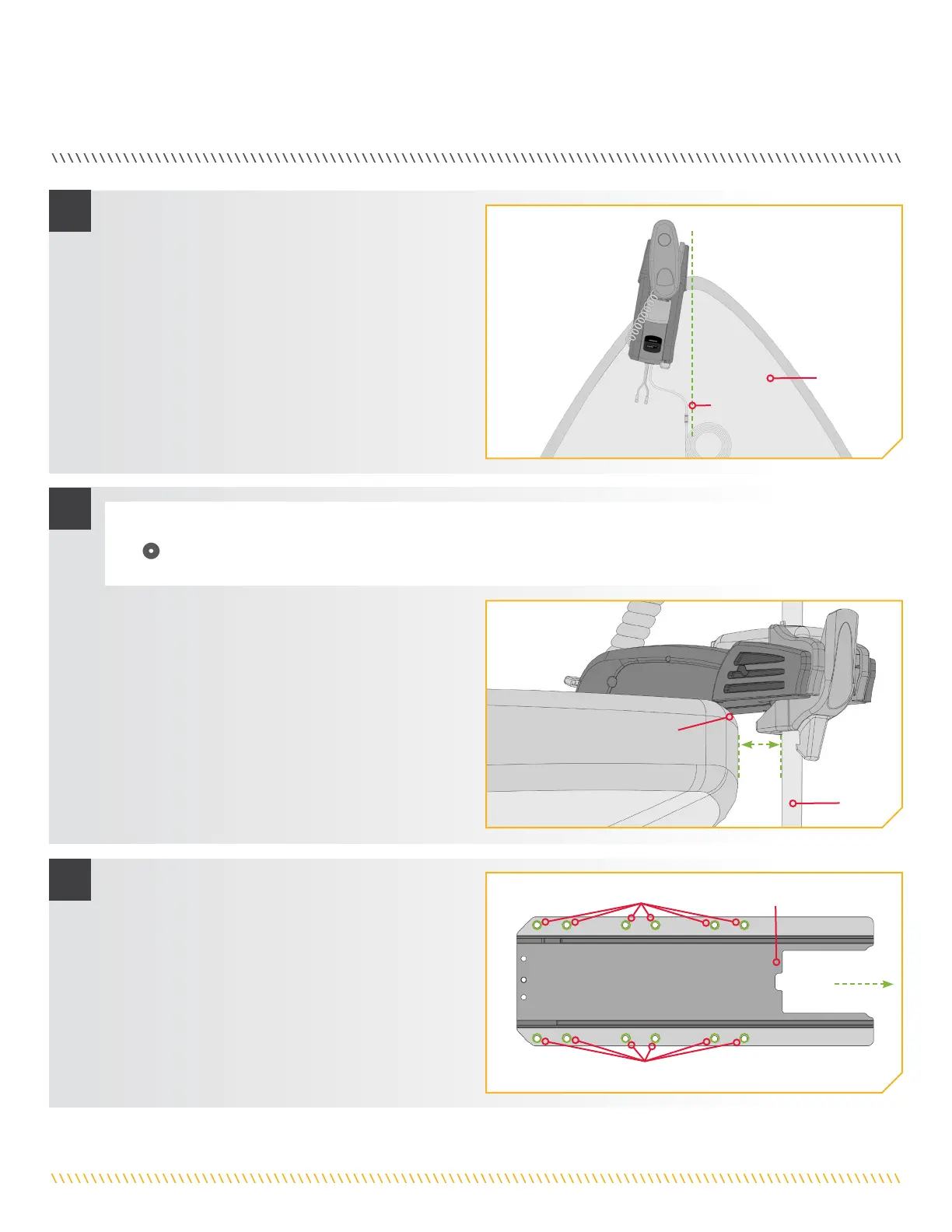

INSTALLING THE POWERDRIVE
f. Place the mount as close to the centerline or keel of
the boat as possible. The motor can be installed on
either the Port or Starboard side of the boat based
on personal preference. Check
placement with the
motor in the stowed and deployed positions.
Review
the mounting considerations at the beginning of
the installation.
Deck of Boat
KeelKeel
g. When the motor is in the deployed position, make
sure that the Shaft is 1-1/2" out past the Gunwale of
the boat. The lower unit, when stowed and deployed
must not encounter any obstructions.
h. Check to be sure that the mount is level. Use the
Rubber Washers (Item #4) provided to create a level
surface if necessary.
i. It is recommended to mark at least 6 of the 12 holes
in the Base Extrusion and to have a minimum of
two bolts on each side that are located the farthest
apart. Ideal installation would allow for 6 bolts to be
used, with a minimum of 4.
j. Drill through the deck of the boat using a 9/32" Drill
Bit on the marked locations.
ITEM(S) NEEDED
#4 x 6
Drilling Locations
Drilling Locations
1-1/2" 1-1/2"
MinimumMinimum
GunwaleGunwale
Shaft
Base Extrusion
Bow
4
5
6
To Next Page
