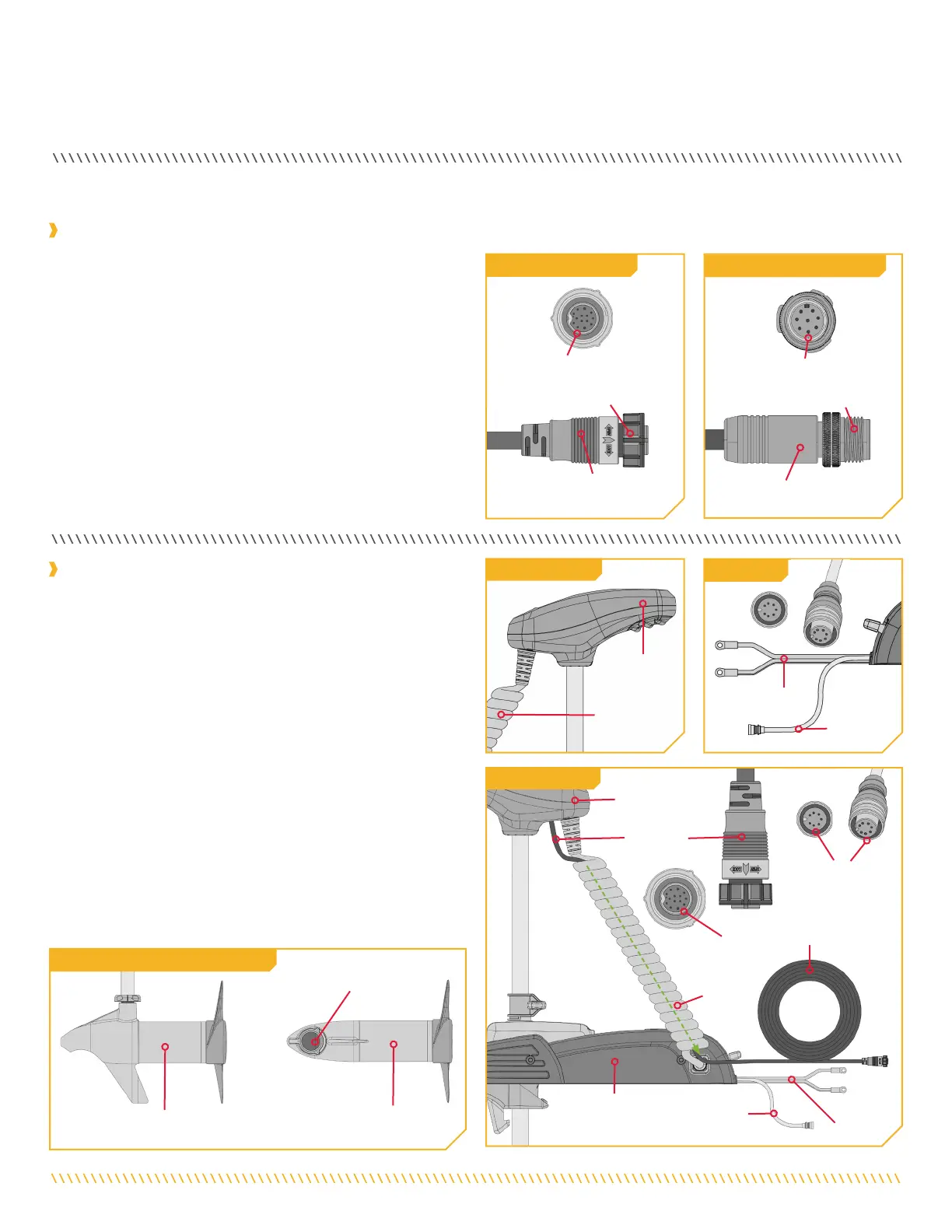

IDENTIFYING TROLLING MOTOR FEATURES AND THEIR ASSOCIATED CABLES
Ethernet Cable Ethernet Cable
from Trolling Motorfrom Trolling Motor
Threaded CollarThreaded Collar
Locking CollarLocking Collar
Eight Pin ConnectorEight Pin Connector
The PowerDrive may be pre-installed with Dual Spectrum CHIRP
sonar or Advanced GPS Navigation - including the ability to
connect via Ethernet to a Humminbird fish finder. These features
may be installed on their own or in combination with another
feature. All of these features require Accessory Cables to be
connected to an output device. The connectors are present on the
trolling motor and have cables that exit below the Control Head
or exit the Coil Cord at the base of the Mount. To better identify
Accessory Cables present, refer to the diagrams that detail
what the Dual Spectrum CHIRP and Advanced GPS Navigation
connectors look like.
Dual Spectrum CHIRP
from Trolling Motor
Dual Spectrum CHIRP
Advanced GPS Navigation
Dual Spectrum CHIRP Lower Unit
NO Connectors
If there are NO connectors below the Control Head, the trolling
motor may be equipped with:
Foot Pedal - The Power Connector to the Foot Pedal will be
present at the base of the Mount along with the Power Leads.
The Power Connector is keyed and attaches to the Eight Pin
Connector from the Foot Pedal.
If ONE connector is present below the Control Head the trolling
motor is equipped with:
Dual Spectrum CHIRP - If Dual Spectrum CHIRP is pre-installed
on your trolling motor, one Dual Spectrum CHIRP accessory
cable will exit the base of the Control Head and run down
the center of the Coil Cord. The end of the cable will have a
Fourteen Pin Connector. Motors with Dual Spectrum CHIRP
will also have a transducer in the Lower Unit. Motors with Dual
Spectrum CHIRP will have a Power Connector for the Foot Pedal
present at the base of the Mount along with the Power Leads.
Fourteen Pin ConnectorFourteen Pin Connector
Feature & Cable Identification
Identifying Connectors
Control HeadControl Head
Control HeadControl Head
Coil Coil
CordCord
Coil CordCoil Cord
MountMount
Dual Dual
Spectrum Spectrum
CHIRPCHIRP
Dual Dual
Spectrum Spectrum
CHIRPCHIRP
ONE Connector
Foot Pedal Foot Pedal
Power Power
ConnectorConnector
Foot Pedal Foot Pedal
Power ConnectorPower Connector
Fourteen Pin Fourteen Pin
ConnectorConnector
Lower Unit Lower Unit
Side ViewSide View
Lower Unit Lower Unit
Bottom ViewBottom View
Dual Spectrum CHIRP Dual Spectrum CHIRP
TransducerTransducer
16 | minnkotamotors.com
©2023 Johnson Outdoors Marine Electronics, Inc.
IDENTIFYING TROLLING MOTOR FEATURES AND THEIR ASSOCIATED CABLES
Power
Leads
Foot Pedal
Foot Pedal Foot Pedal
Power Power
ConnectorConnector
Power
Leads
