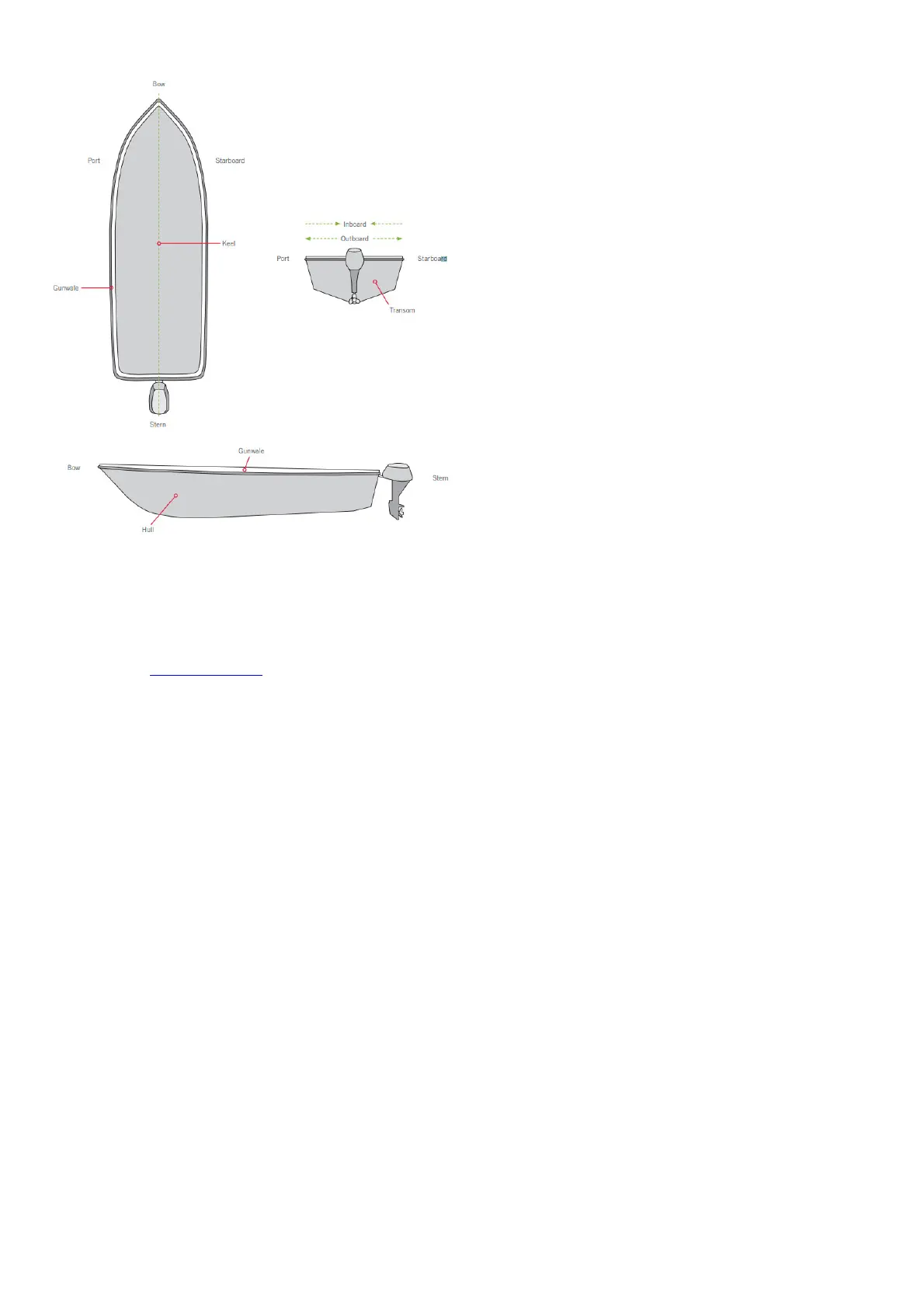

KNOW YOUR BOAT
INSTALLATION
INSTALLING THE RIPTIDE POWERDRIVE
Your new Riptide PowerDrive comes with everything you’ll need to directly install it to the boat. This motor can be directly mounted to the boat or coupled with a Minn
Kota quick release bracket for ease of mounting and removal. For installation with a quick-release bracket, refer to the installation instructions provided with the bracket.
For compatible quick-release mounting brackets and to locate your nearest dealer, visit minnkotamotors.com. To install the motor directly to the boat, please follow the
instructions provided in this manual. Please review the parts list, mounting considerations, and tools needed for installation prior to getting started. For additional product
support, please visit minnkotamotors.com.
INSTALLATION PARTS LIST
Item /
Assembly
Part # Description Qty.
A 2994864 BAG ASSEMBLY – (BOLT, NUT, WASHERS) 1
1 2263462 BOLT-MOUNTING-1/4X2 W/STG 6
2 2261713 WASHER-1/4 6
3 2263103 NUT NYLOK 1/4-20 MTG 6
4 2301720 WASHER-MOUNTING RUBBER 6
U 1378131 PROP IND 2091160 (WDLS WDGII) 1
5 2091160 PROP-WW2 (3 5/8″) REAMED 1
6 2151726 WASHER-5/16 SS 1
7 2053101 NUT-PROP,NYLOC (MED) 5/16 SS 1
8 2092600 PIN-DRIVE 1.06″ LG SS 1
9 MOTOR ASSEMBLY 1
10 2994728 FOOT PEDAL ASSEMBLY, PD 1
11 2390800 ♦ LANYARD, REMOTE W/ CARABINER 1
12 2390801 • LANYARD, REMOTE *COPILOT* 1
13 2994075 ♦ REMOTE ASY, PILOT 1
14 2994020 • TRANSMIT, ASY, PD/AP COMPLETE 1
^ 2397106 MANUAL, QUICK REF., iPILOT 1.6 1
^ 2317123 MANUAL-INSTALL GUIDE, POWERDRIVE 1
Z 2994859 BAG ASY-TERROVA/V2,RUB.BUMPERS 1
17 2325110 PAD, FOOT PEDAL PD 5

Other manuals for MINN KOTA RIPTIDE POWERDRIVE

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the MINN KOTA RIPTIDE POWERDRIVE and is the answer not in the manual?

MINN KOTA RIPTIDE POWERDRIVE Specifications

General IconGeneral
Water TypeSaltwater
Speed ControlVariable
Digital MaximizerYes
i-Pilot LinkOptional
Speed SettingsVariable
WeightVaries by model
Voltage12V, 24V
Shaft Length48", 54", 60"
Control TypeFoot Pedal, i-Pilot, or i-Pilot Link
SteeringElectric Steering
Mounting LocationBow
Battery Requirement12V or 24V Deep Cycle Marine Battery
Motor TypeElectric
Warranty2 years
Thrust55 lbs
i-PilotAvailable on select models
