MINN KOTA RIPTIDE POWERDRIVE Installation Guide

p. Take the Foot Pedal (Item #10) and turn it over. Put a Foot Pedal Pad (Item #17) in each of the pad locations.
NOTICE: The pads are recommended when using the Foot Pedal on non-carpeted surfaces.

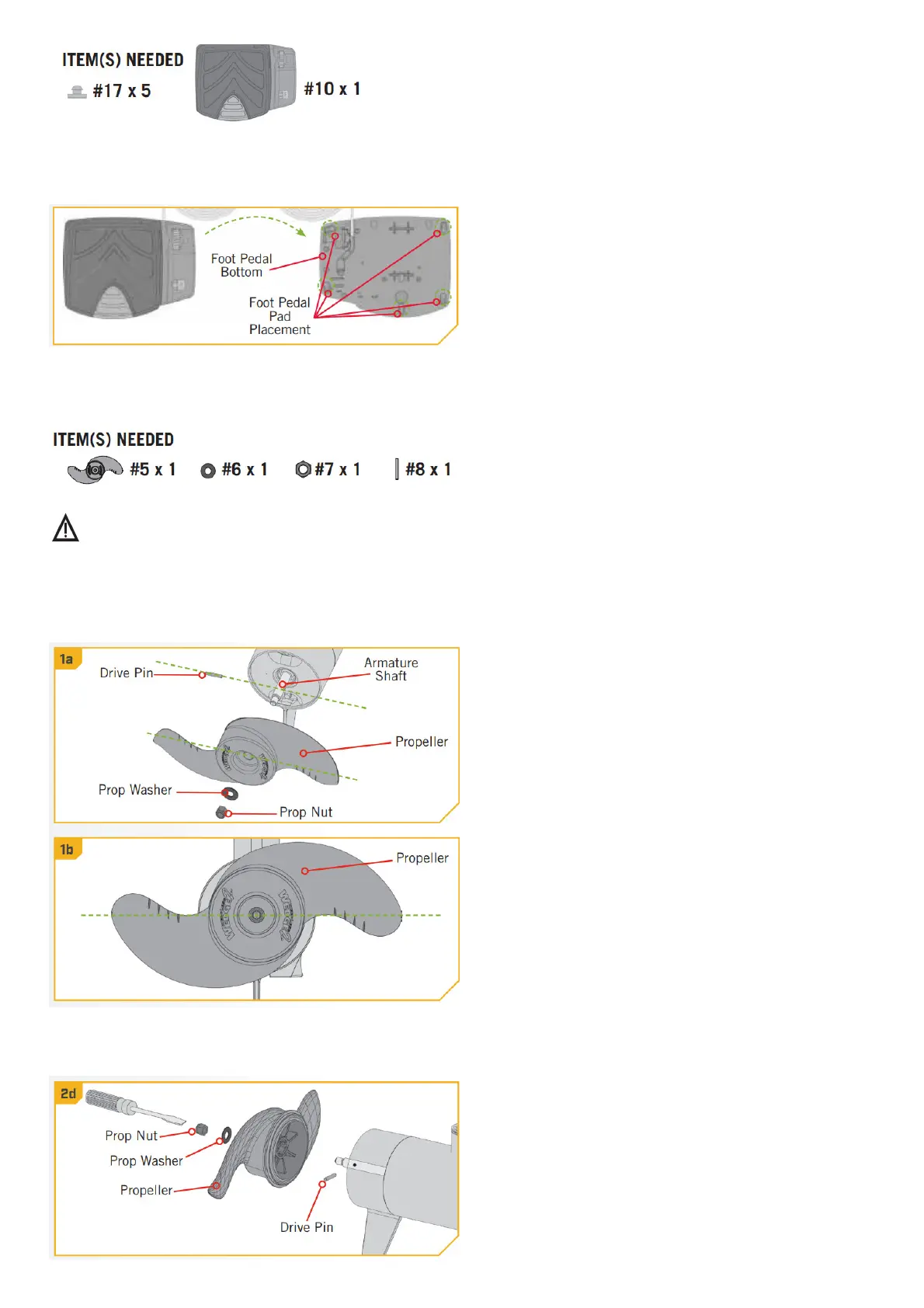

Installing the Prop
1
CAUTION
Disconnect the motor from the battery before beginning any prop work or maintenance.
a. Take the Drive Pin (Item #8) and slide it through the Hole in the Armature Shaft. Position the Drive Pin horizontal by grasping the Armature Shaft and rotating it with
the Drive Pin in place.
b. Align the Propeller (Item #5) so it is also horizontal and parallel with the Drive Pin. Slide the Propeller onto the Armature Shaft and Drive Pin until it is seated against the
lower unit.
c. Install the Prop Washer (Item #6) and the Prop Nut (Item #7) onto the end of the Armature Shaft.
2
d. Holding the end of the Armature Shaft with a Flat Blade Screwdriver, tighten the Prop Nut with a 9/16″ Open End Wrench.
e. Tighten the Prop Nut 1/4 turn past snug to 25-35 in-lbs.

MINN KOTA RIPTIDE POWERDRIVE Specifications

General

Water Type	Saltwater
Speed Control	Variable
Digital Maximizer	Yes
i-Pilot Link	Optional
Speed Settings	Variable
Weight	Varies by model
Voltage	12V, 24V
Shaft Length	48", 54", 60"
Control Type	Foot Pedal, i-Pilot, or i-Pilot Link
Steering	Electric Steering
Mounting Location	Bow
Battery Requirement	12V or 24V Deep Cycle Marine Battery
Motor Type	Electric
Warranty	2 years
Thrust	55 lbs
i-Pilot	Available on select models
