minnkotamotors.com | 31
©2019 Johnson Outdoors Marine Electronics, Inc.

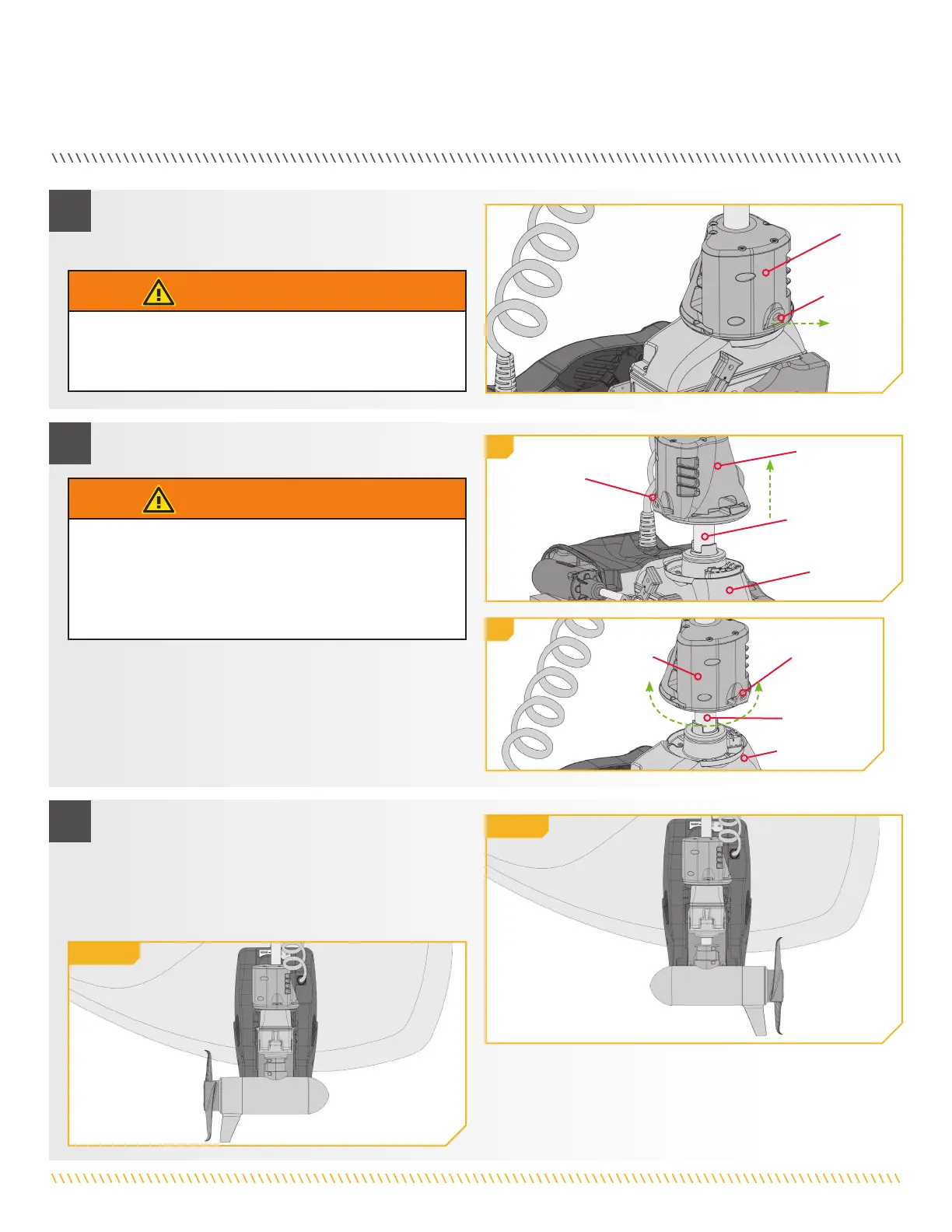

CHANGE THE PROP ORIENTATION
d. Locate the Trim Release Handle on the Side of the
Trim Housing. Grasp the Trim Release Handle and
pull it out.
e. While holding the Trim Release Handle out, grasp
the Trim Housing and Shaft and lift them up off the
Steering Housing.
f. While holding Trim Housing and Shaft up, rotate
them 180 degrees.
Trim Housing
Trim Release
Handle
g. The Trim Housing and Shaft may be turned either
clockwise, or counterclockwise depending on if
the motor is originally mounted on either the Port
or Starboard side of the boat and the necessary
accommodations that will be needed for each
individual situation.
Trim Housing
Trim
Housing
Trim Release
Handle
Trim Release
Handle
Steering
Housing
Steering
Housing
Shaft
Shaft
3
4
5
WARNING
When using the Trim Handle or moving the Trim Housing,
keep fingers clear of all hinges, pivot points and all moving
parts above and below the Trim Housing.
WARNING
When lifting the Trim Housing off the Steering Housing,
power connections are exposed. Keep fingers and metal
objects clear of exposed connections. The power from
the connection is removed after 10 seconds once the
connection is exposed.
4e
4f
Inboard
Outboard
To Next Page
