minnkotamotors.com | 37
©2019 Johnson Outdoors Marine Electronics, Inc.

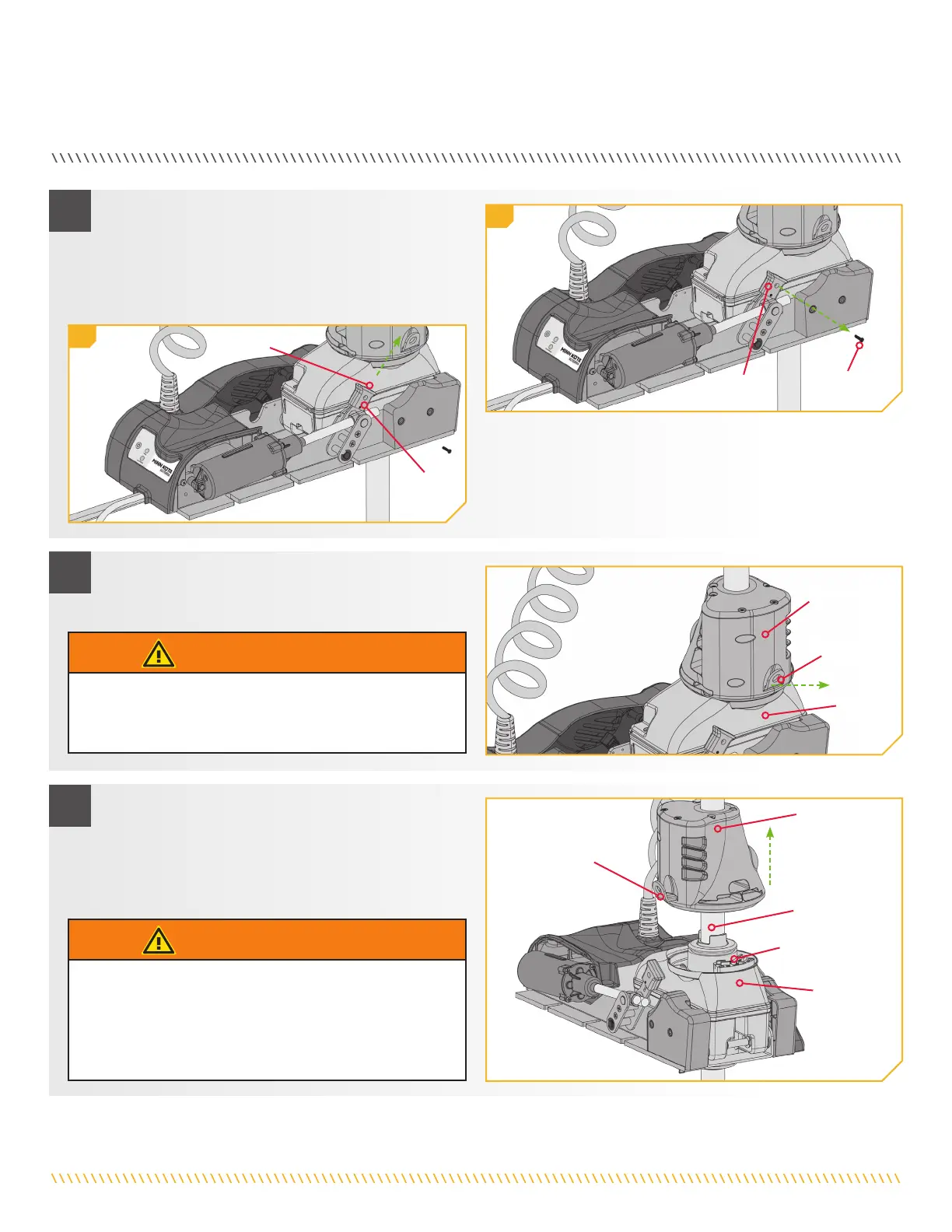

MANUALLY STOWING THE RIPTIDE ULTERRA
b. Using a #2 Phillips Screwdriver, loosen the screw on
the Manual Tilt Knob.
c. The Manual Tilt Knob holds two Metal Plates together.
Using a Flat Blade Screwdriver pry up on the Manual
Tilt Knob until it releases from the Metal Plates.
Manual Tilt
Knob
Manual Tilt
Knob
Metal
Plates
Screw
d. Locate the Trim Release Handle on the Side of the
Trim Housing. Grasp the Trim Release Handle and
pull it out.
e. While holding the Trim Release Handle out, grasp
the Trim Housing and Shaft and lift them up off the
Steering Housing.
f. Lift up on the Trim Housing until Shaft and Trim
Housing can be pulled up by hand.
Trim Housing
Trim Housing
Trim Release
Handle
Trim Release
Handle
Steering
Housing
Shaft
Steering
Housing
Power Connection
2
3
4
2b
2c
WARNING
When using the Trim Handle or moving the Trim Housing,
keep fingers clear of all hinges, pivot points and all moving
parts above and below the Trim Housing.
WARNING
When lifting the Trim Housing off the Steering Housing,
power connections are exposed. Keep fingers and metal
objects clear of exposed connections. The power from
the connection is removed after 10 seconds once the
connection is exposed.
To Next Page
