38 | minnkotamotors.com
©2019 Johnson Outdoors Marine Electronics, Inc.

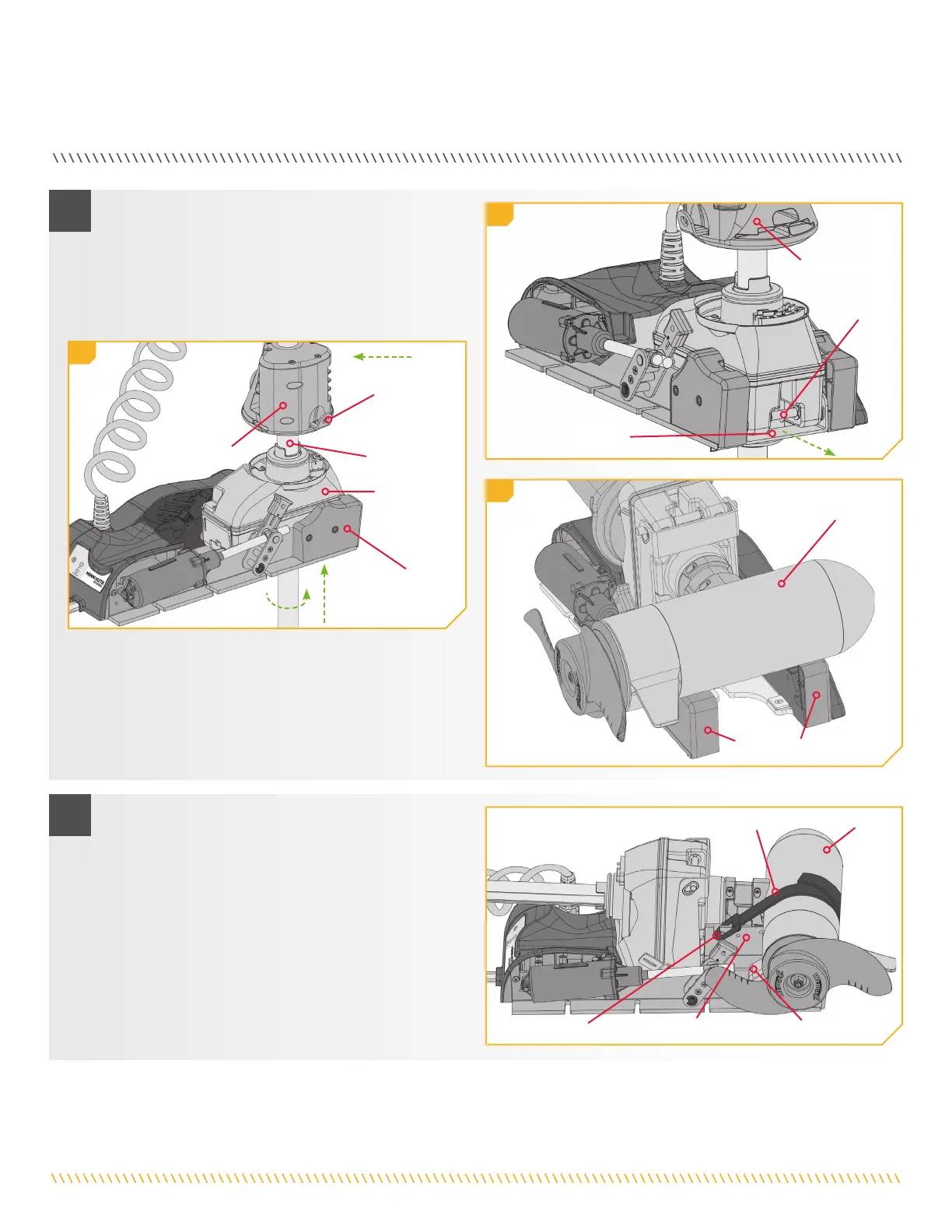

MANUALLY STOWING THE RIPTIDE ULTERRA
g. While the Trim Housing and Shaft are lifted up,
release the Latch Pin Bracket.
h. Lift the Trim Housing, Shaft and Lower Unit up, and
rotate it.
i. Pull the Lower Unit onto the Mount Ramps.
j. Secure the Lower Unit onto the Mount Ramps using
the Emergency Strap that was provided with the
motor. The D-ring on the Emergency Strap can be
hooked into the Base Extrusion below the sideplate
that was removed.
k. With the D-ring secured, wrap the Emergency Strap
around the Lower Unit and secure it to itself. The
Emergency Strap should be pulled tight enough that
the Lower Unit rests securely on the Mount Ramps.
Trim Housing
Trim Housing
Trim Release
Handle
Steering
Housing
Mount Ramps
Mount Ramp
Base Extrusion
D-ring
Emergency
Strap
Lower Unit
Mount Ramps
Lower Unit
Latch Pin
Bracket
Latch Pin
Shaft
5
6
5h
5g
5i
To Next Page
