ADvANCED TROUBLESHOOTING
e. If it has come loose, connect the motor to the appropriate voltage. The power can be switched ON by reaching in with a
small object (a blade screwdriver, for example) and pressing down on the actuator of the Power switch. The green and red
LEDs should light up and the RT Ulterra can then be deployed via the corded foot pedal or the remote in the normal manner.
f. With the motor deployed (or partially deployed), the
control panel cover assembly can be lifted up to
expose the main control board assembly. The
switch/LED board snaps into place on the inside
surface of the control panel cover.
g. When re-installing the switch align the actuator pin
with the openings in the cover and push the board
into position with the two catches, one on each side
of the board, engage and hold the board in place.
NOTICE: If deploying the motor on the boat or benchtop
the deploy sequence can be stopped by pressing the Stow/
Deploy button.
NOTICE: Note the switch/LED circuit board is attached to
the main control board by means of the ribbon lead.
3
4

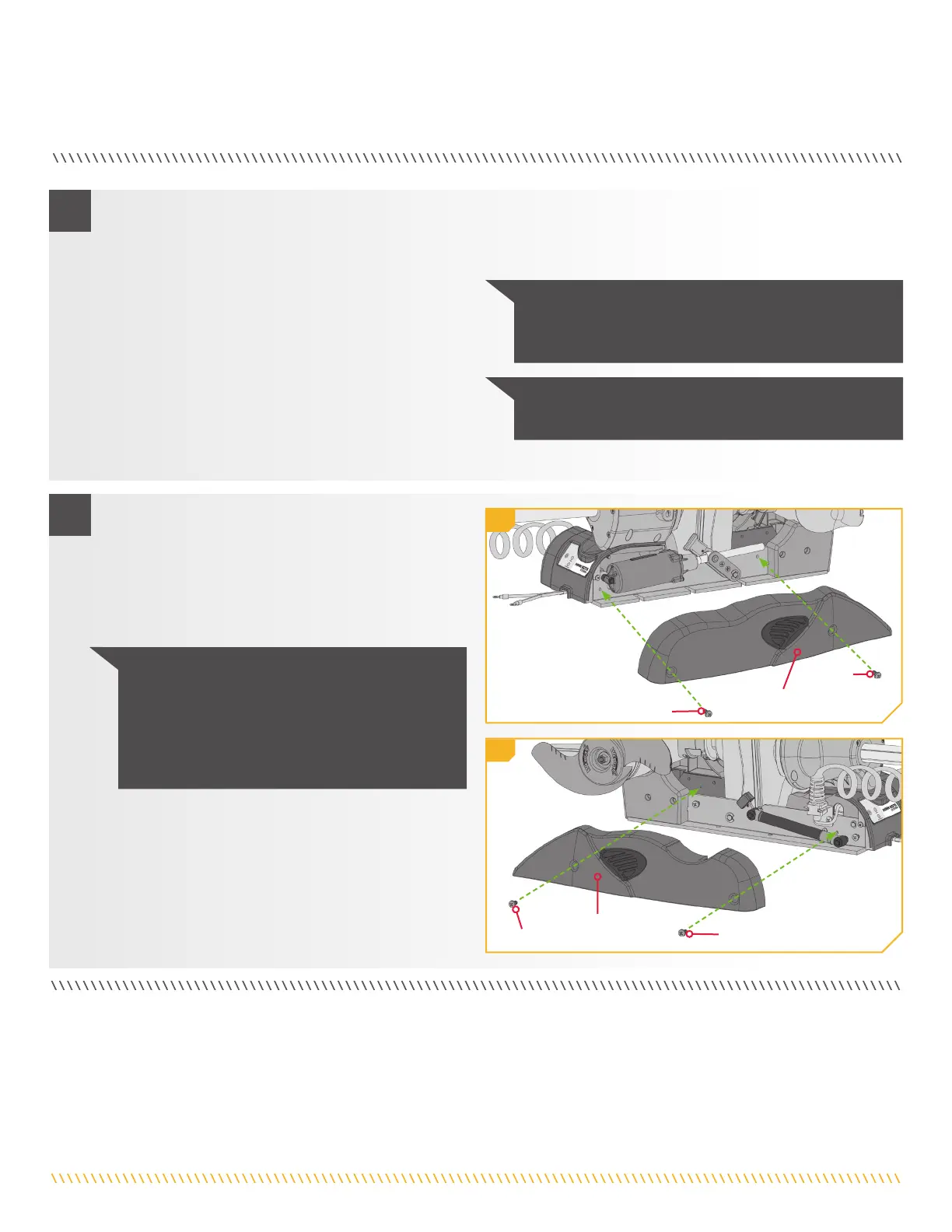

h. Reinstall the control panel cover and side plates to
complete the repair.
i. Test the Power switch ON/OFF function several
times to insure proper switch retention. Test stow/
deploy of the motor as you are able to on the boat or
bench to confirm proper functionality.
Left
Sideplate
Screw
Screw
Screw
Right
Sideplate
Screw
NOTICE: To turn the motor off with the Power
switch hold the switch button down for three
seconds, the green and red LEDs should go out when
this is done. Release the Power Button, wait about
3 seconds, and press and release the Power button.
The green and red LEDs should come back on.
4h
4h
