minnkotamotors.com | 37 ©2023 Johnson Outdoors Marine Electronics, Inc.

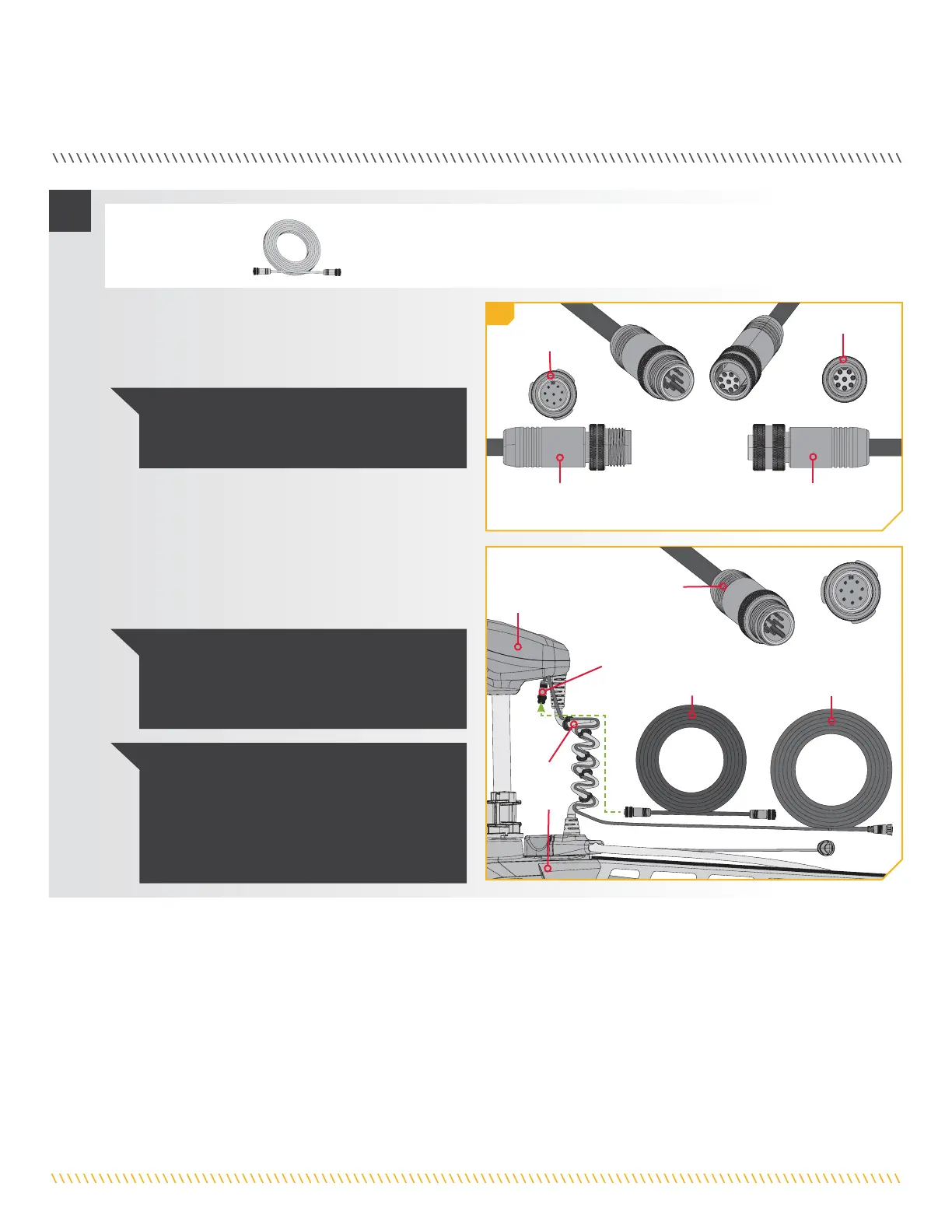

ADVANCED GPS NAVIGATION
Advanced Advanced
GPS Ethernet GPS Ethernet
ConnectorConnector
Eight Pin Eight Pin
ConnectorConnector
Control Control
HeadHead
Coil Coil
CordCord
MountMount
Advanced GPS Advanced GPS
Ethernet Ethernet
ConnectorConnector
Sonar CableSonar Cable
Ethernet CableEthernet Cable
NOTICE: The 30' Ethernet Cable (AS EC 30E -
30' Ethernet Cable - 720073-4
) is provided. If
an alternate length is preferred, alternate cable
lengths are available from
humminbird.com.
Eight Pin Eight Pin
ConnectorConnector
Ethernet Ethernet
CableCable
ReceptacleReceptacle
Advanced GPS Advanced GPS
Ethernet Connector Ethernet Connector
from Trolling Motorfrom Trolling Motor
c. Take the Ethernet Cable (Item #8) and identify the
Receptacle on either end. It will be keyed to fit with
the Eight Pin Advanced GPS Ethernet Connector
below the Control Head.
2
NOTICE: The Ethernet Cable has a Receptacle
for the Advanced GPS Ethernet Connector on
both ends and either end may be connected.
d. Leading with either Receptacle, take the cable and
run it parallel to the Coil Cord starting at the end of
the Coil Cord attached to the Mount and working up
towards the Control Head. The cable will run parallel
to the Sonar Cable secured to the Coil Cord with
Clips. Allow enough slack in the cable to attach the
Receptacle to the Advanced GPS Ethernet Connector.
2c
ITEM(S) NEEDED
#8 x 1
NOTICE: The 30' Ethernet Extension Cable
(
AS ECX 30E - 30' Ethernet Extension Cable -
760025-1
) is available from humminbird.com
and should be used if the standard 30' Ethernet
Cable provided with your trolling motor is not long
enough to reach the fish finder.
To Next Page
