ADVANCED GPS NAVIGATION

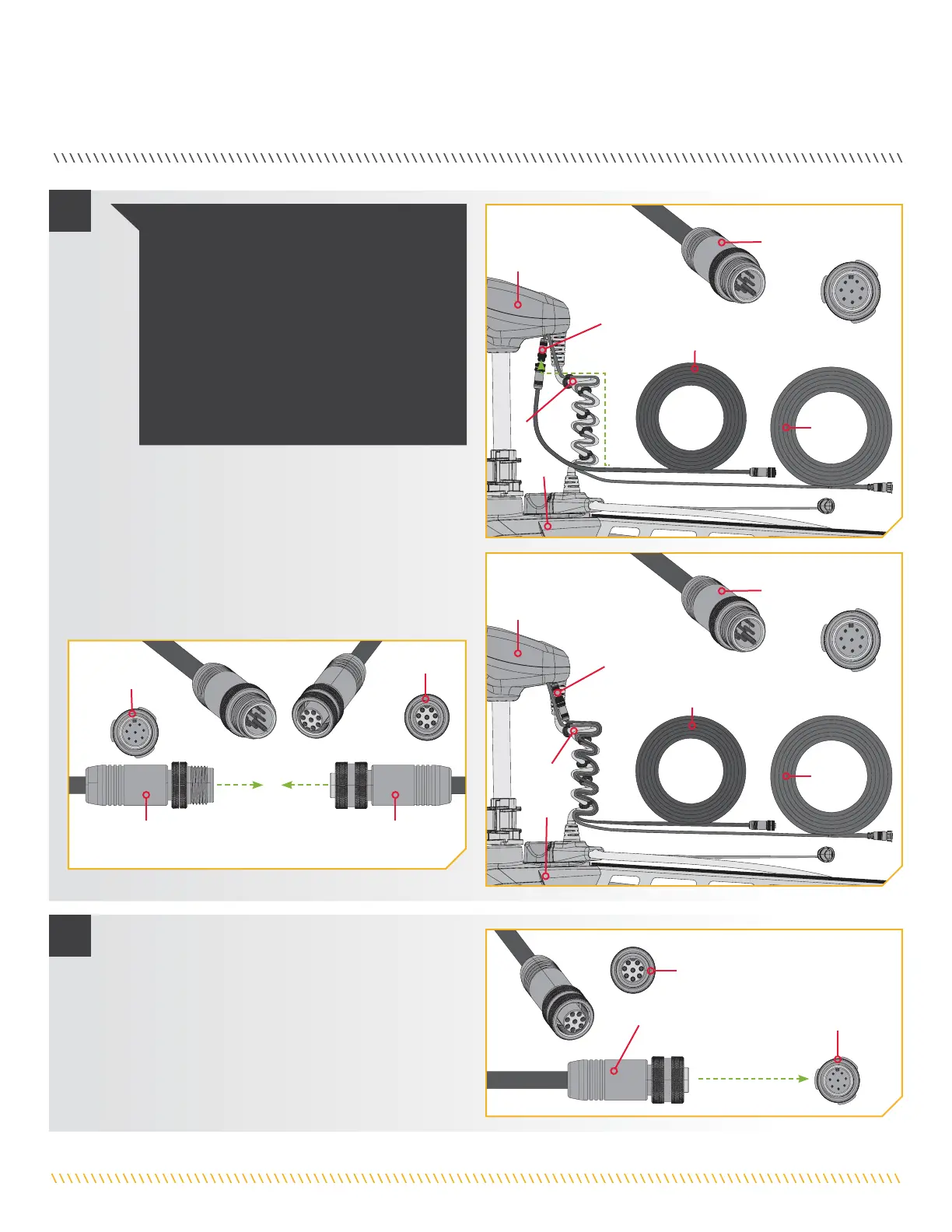

e. To install the Ethernet Cable, align the pins on
the Advanced GPS Ethernet Connector with the
Receptacle on the Ethernet Cable. Notice the
keyed connectors. Press the ends together and
tighten the Collar from the Ethernet Cable to
secure the connection.
f. The Ethernet Cable will plug directly into a Solix or
Apex Fish Finder or directly into a Helix Adapter Cable.
3
Eight Pin Eight Pin
ConnectorConnector
Ethernet Ethernet
CableCable
ReceptacleReceptacle
Advanced GPS Advanced GPS
Ethernet Connector Ethernet Connector
from Trolling Motorfrom Trolling Motor
NOTICE: Minn Kota recommends routing the
Ethernet Cable parallel to the Coil Cord when
making the Ethernet connection. The cable will
be installed from the Mount to the Control Head
parallel to the Coil Cord with Clips. Bypassing the
Coil Cord when routing the Ethernet Cable is not
recommended. After connections are made, the
Ethernet Cable must be installed in the Clips. For
details on securing the Ethernet Cable please
follow the "Securing Connection Cables" section
of this document.
g. If installing directly to a Solix or Apex, the connector
will be flat on the back of the fish finder display.
h. Align the Receptacle on the Ethernet Cable with the
Eight Pin Connector on the Apex or Solix fish finder.
Notice the keyed connectors. Tighten the Collar
from the Ethernet Cable to secure the connection.
Once directly installed to the Solix or Apex, the
connection is complete.
4
Eight Pin Eight Pin
Connector on Connector on
Solix or Apex Solix or Apex
Fish FinderFish Finder
Ethernet Ethernet
CableCable
ReceptacleReceptacle
Advanced GPS Advanced GPS
Ethernet Ethernet
ConnectorConnector
Advanced GPS Advanced GPS
Ethernet Ethernet
ConnectorConnector
Eight Pin Eight Pin
ConnectorConnector
Eight Pin Eight Pin
ConnectorConnector
Control Control
HeadHead
Control Control
HeadHead
Coil Coil
CordCord
Coil Coil
CordCord
MountMount
MountMount
Advanced GPS Advanced GPS
Ethernet Ethernet
ConnectorConnector
Advanced GPS Advanced GPS
Ethernet Ethernet
ConnectorConnector
Sonar Sonar
CableCable
Sonar Sonar
CableCable
Ethernet CableEthernet Cable
Ethernet CableEthernet Cable

MINN KOTA ULTREX Specifications

General

Thrust	80 lbs, 112 lbs
Voltage	24V, 36V
Steering	Electric Steer
Speed Control	Variable
i-Pilot Link GPS	Yes (Optional)
Lift Assist	Yes
Blade Material	Composite
Shaft Length	45", 52", 60"
Control	Foot Pedal
Integrated Sonar	MEGA Down Imaging, Universal Sonar 2
Battery Requirement	24V or 36V Deep Cycle Marine Battery
Weight	Varies by model
Deployment	Manual
Warranty	2 years
