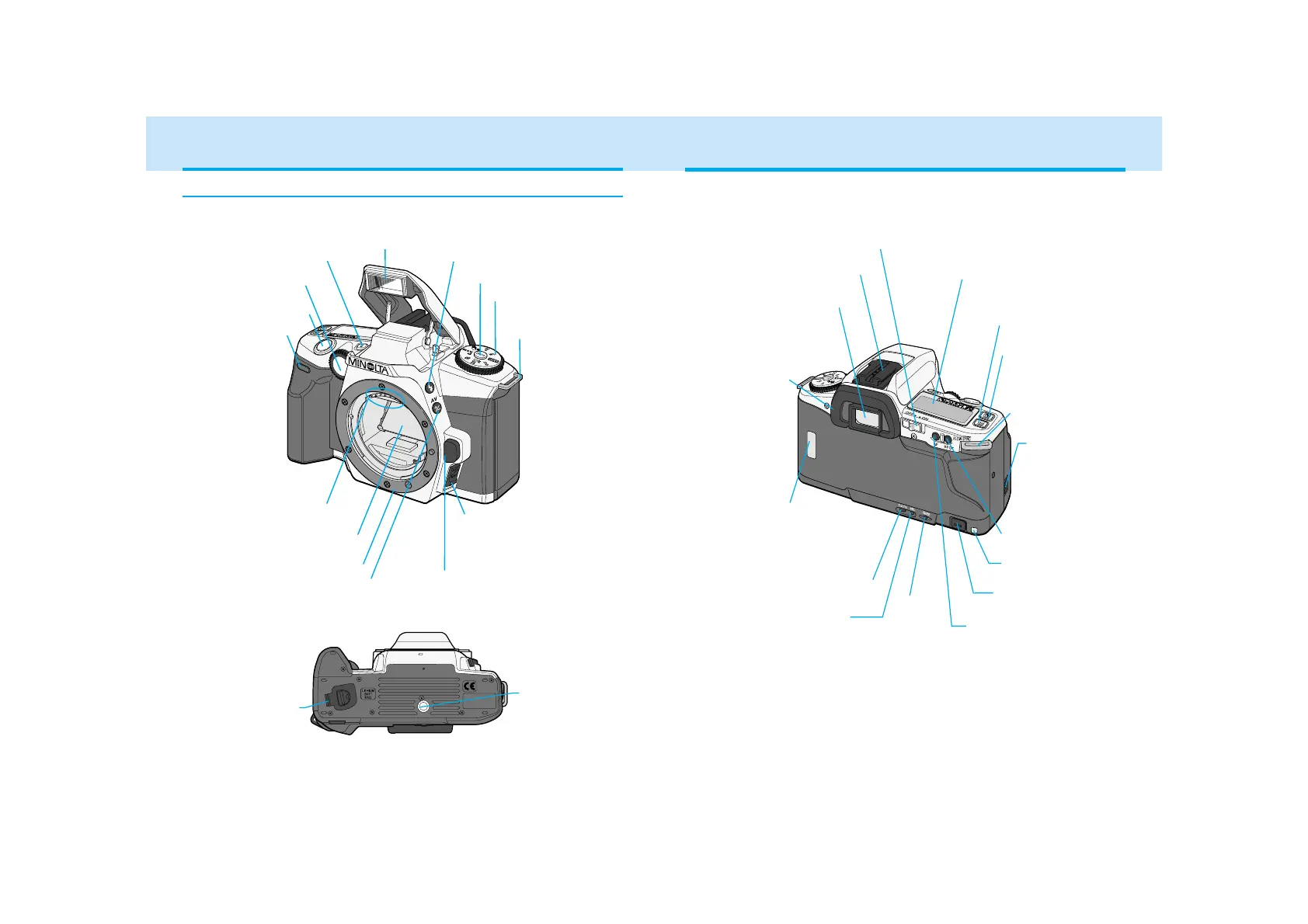

NAMES OF PARTS
Subject-program
button (40-45)
Shutter-release
button (28)
Accessory shoe
Function button
Function dial
Lens release (22)
Flash-mode button (37)
Self-timer lamp /
Remote-control
receiver
1
(46/49)
Control dial
Lens contacts*
Focus-mode switch (74)
Eyepiece
Cup (117)
Date button
2
(100)
Select button
2
(100)
Manual-
rewind
button
(26)
Film-chamber lock
indicator (25)
Back-cover
release (23)
Spot-AE lock button
(77)
Remote-control
terminal
1
(81)
Spot AF button (68)
Viewfinder*
For information on specific parts, refer to the page shown in
parentheses.
Strap eyelet (17)
Lens mount
Mirror*
Strap eyelet (17)
Film window (25)
Data panel
Battery-chamber
door (19)
Tripod socket
Body
Built-in flash* (35)
Drive-mode button
(46-50)
1
Available on the remote-control model only.
2
Available on the quartz-date model only.
The quartz-date model is equipped with remote-control function.
*This camera is a sophisticated optical instrument. Care should be taken
to keep these surfaces clean. Please read the care and storage
instructions in the back of this manual (p. 122).
Program-reset button (30)
Exposure-
compensation
button (82)
Main switch (30)
