MINOURA WORKMAN PRO - GAUGE FOR SIDE SHAKING; How To Open; How To Close

Rotatethewheelslowlyandseetheclearancebetween
thegaugeplateandtherimsurfacecarefully.
Sometimesthegaugeplatewilltouchtotherim,and
sometimesthegaugeplatewillbeawayfromtherim.
Thisistheverticalshaking.
PleasefixthisverticalshakingwithHOW TO FIX
VERTICAL SHAKINGstepinthefollowingpage.
Youdonothavetoworryabout3mmorlessvertical
shaking,itmaynotcauseanytroubles.
Whenyouwanttoadjusttherimcentering,seethe
scaleonthegaugeplateandtherimposition.Ifthe
rimisinthecenterofthescale,thewheelisrightpo-
sitioned.Butwhentherimistoorightortooleft,the
wheelisnotcorrect.Wrongrimpositionmaycause
sometroubles,forexampleonesidebrakingorspoil-
ingrunningstability,soyoushouldfixthecentering
ofthewheel.
Youdonothavetoworryabout2mmorlessdiffer-
ence of the centering position, it may not cause any
troubles.
GAUGE FOR SIDE SHAKING
The gauges for side shaking are located on the both
side of the U-shaped gauge frame, they are the knob
bolts.
They have 0.1mm level scale on their own surfaces.
After you set the wheel on the Workman Pro, put the
U-shaped frame close to the rim. And tighten the knob
bolts to approach to the rim surface. Do NOT touch
the tip to the rim, otherwise your later procedure may
be difficult.
Rotate the wheel slowly, and see the clearance between
the tip of the knob bolts and the rim surface.
Sometimes will touch to the rim and sometimes will
be away from the rim. This is the side shaking.
Please fix this side shaking with “HOW TO FIX SIDE
SHAKING” step in the following page.
You do not have to worry about 2mm or less side shak-
ing, it may not cause any troubles.
• How To Open
The Workman Pro is received in its own box folded
down. When you use it, please open the frame with
the following steps.
1.
Loosen the knob bolt which is located on the foot of
the arm. And open the gauge stay a little. Then open
the U-shaped gauge frame at right angles.
2.
Then you can open the leg stay fully until it stops to
the end, and place the Workman Pro on the table.
In this time, you should make your attention that you
do not pinch your finger to the frame and the stay.
3.
Finally, open the gauge stay, and tighten the knob bolt
to fix the gauge stay position.
• How To Close
To prevent some accidents, you should fold the Work-
man Pro when you store it.
1.
Hold both arms with your both hands, and push to-
ward inside at the end.
2.
Loosen the knob bolt which fixes the gauge stay, and
fold the gauge stay half way. Hold the U-shaped gauge
frame at right angles.

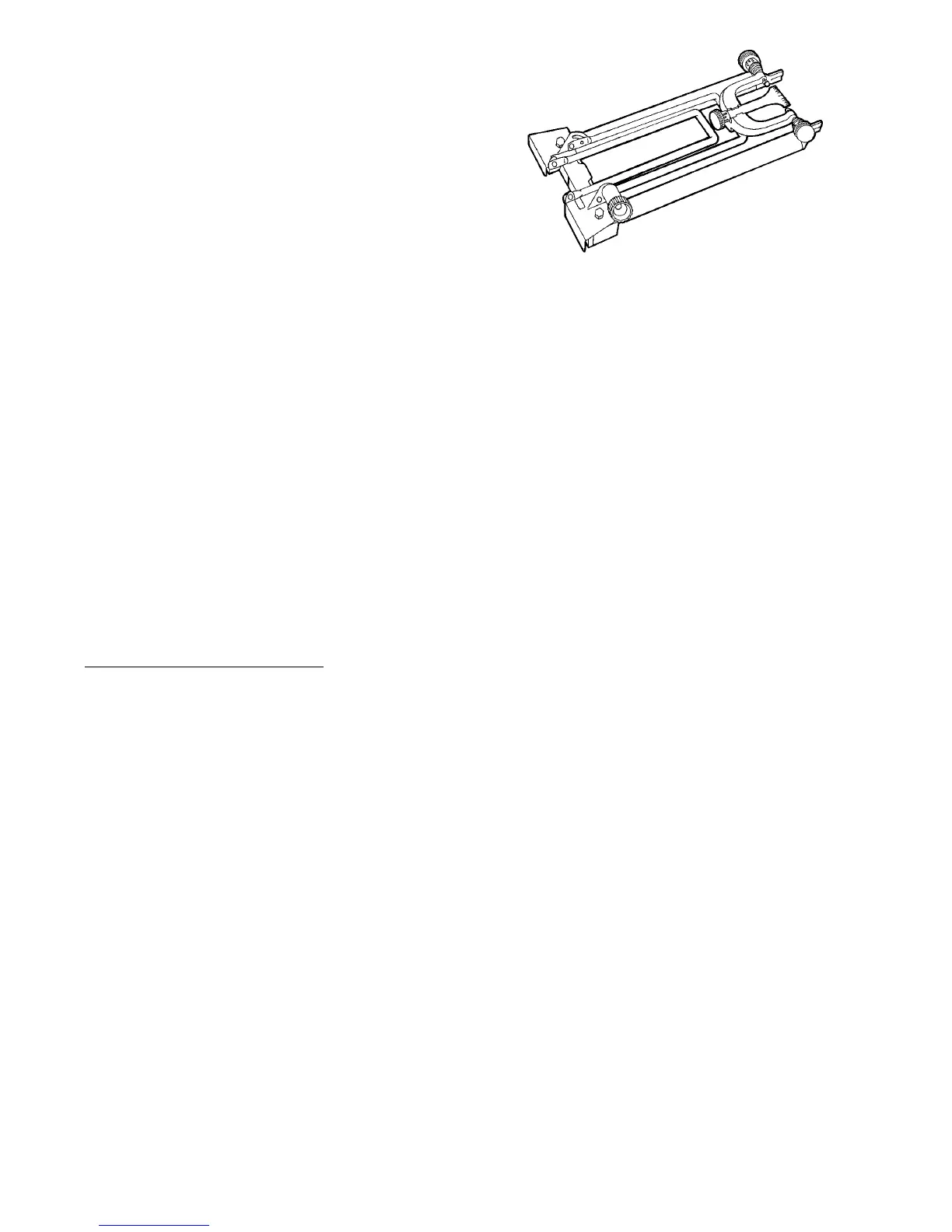

(Folded Workman Pro)
