Bell Assembly Installation Steps
Components
● SmartView 360 Bell Assembly - 38.1 mm (1.5 in) NPT thread
● Rubber camera gasket
● Thread seal tape
Required materials (not included)
● Customer-supplied mount

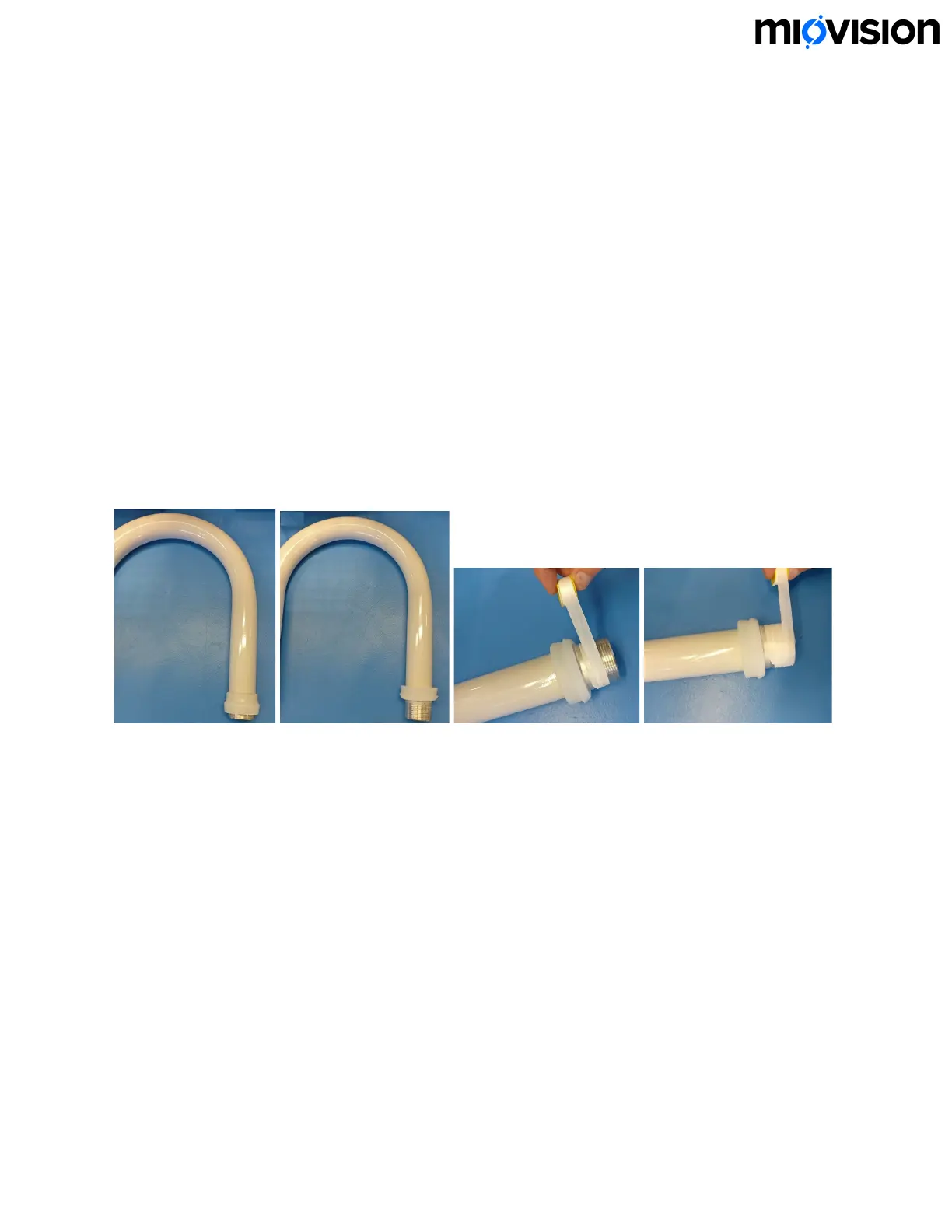

1. Install the rubber camera gasket onto the mount. Fold the gasket back to allow
the installation of the camera bell assembly. Apply thread seal tape to the
camera mount threads.
2. Install the SmartView camera bell assembly and then rotate clockwise until snug.
Make sure that the final orientation of the camera bell matches the image below.
