● Dimensions: 482.6 x 368.3 x 203.2 mm (19 x 14.5 x 8 in)
● Weight: 3.4 kg (7.5 lbs)
● Mount Material: Aluminum

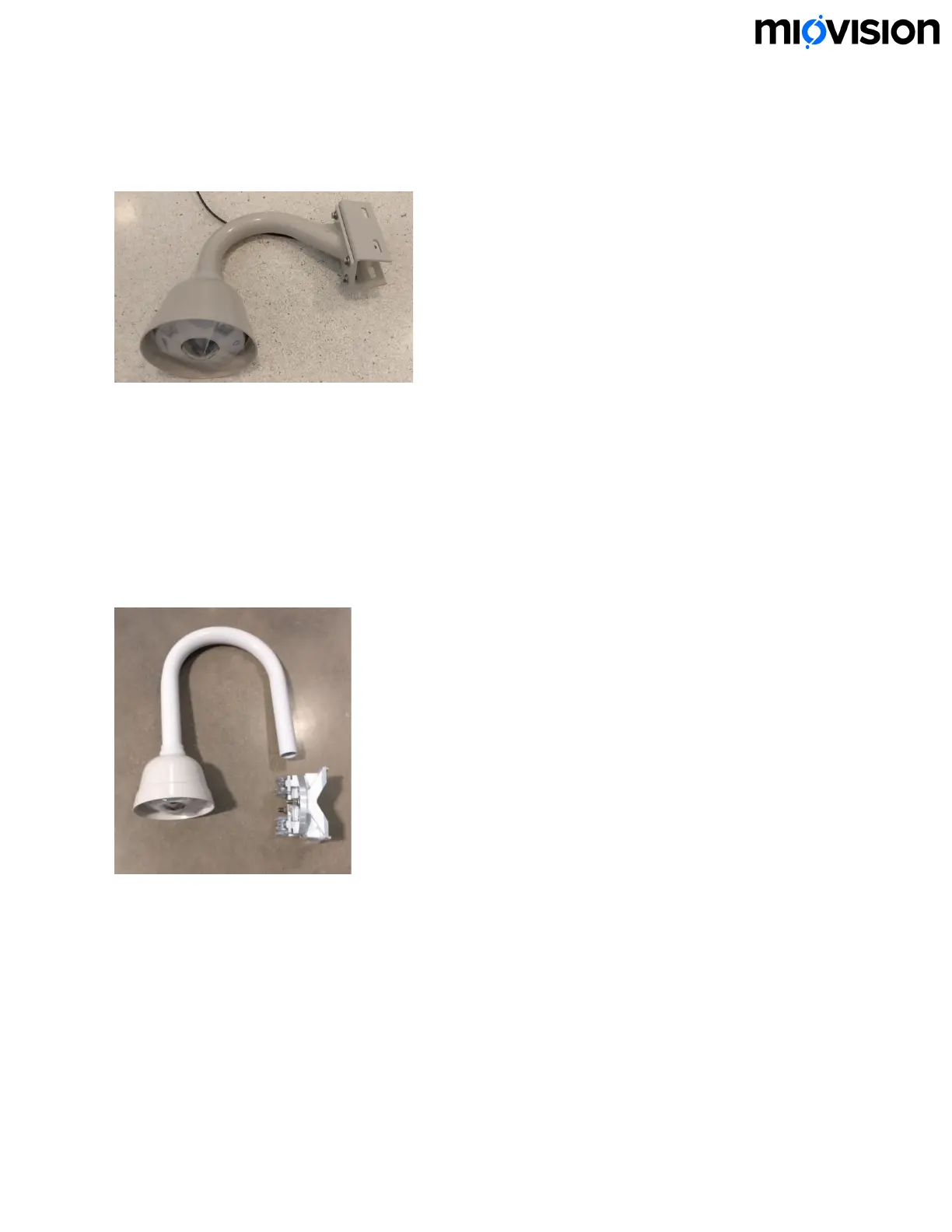

Horizontal Mount
The horizontal mount is intended to be installed on a mast arm. It is secured to the
horizontal traffic arm through the mount bracket using two lengths of 19.05 mm (3/4 in)
stainless steel banding.
● Dimensions: 533.4 x 457.2 x 203.2 mm (21 x 18 x 8 in)
● Weight: 5.67 kg (12.5 lbs)
● Material: Stainless Steel
Adjustable Horizontal Mount 1.83 m (6ft)
The 1.83 m (6ft) adjustable horizontal mount is intended to be installed on a mast arm
that is not high enough for the application. It is intended to be secured to a horizontal
traffic arm through the mount bracket using 2 lengths of stainless steel banding.
● Dimensions: 2311.4 x 482.6 x 203.2 mm (91 x 19 x 8 in)
● Weight: 9.53 kg (21 lbs)
● Material: Stainless Steel
