3. Product presentation
MiR Precision Docking Operating guide (en) 2019/11 - v.1.2 ©Copyright 2019: Mobile Industrial Robots A/S. 9

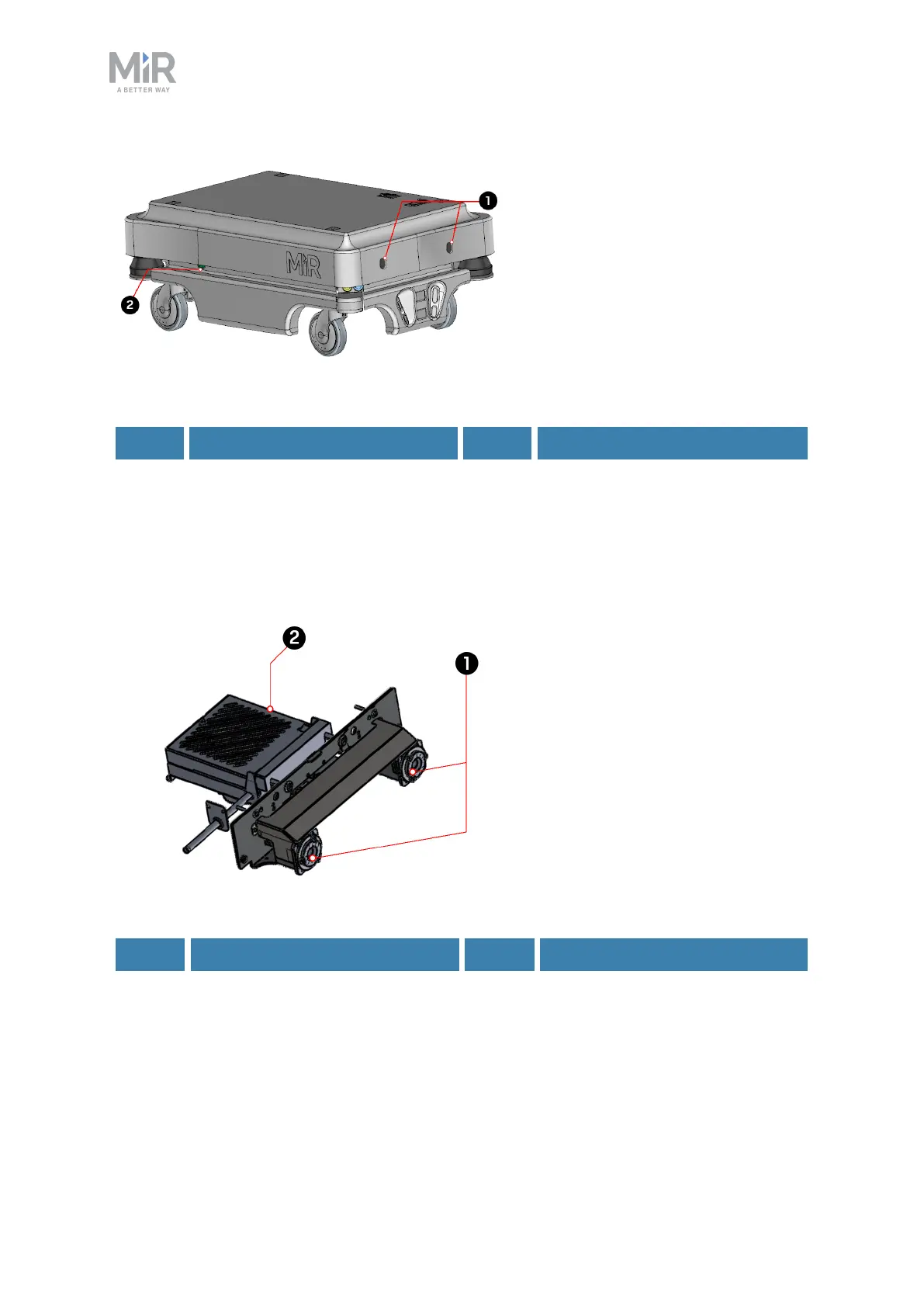

Figure 3.2. MiR100 installed with robot part.
Label Description Label Description
1 Precision holes 2 Manual pin release button
3.2 Internal parts
The robot part is shown in Figure 3.3. The internal unit is located at the front of the robot
beneath the robot's cover.
Figure 3.3. The robot part before it is installed in MiR100/MiR200.
Label Description Label Description
1 Precision holes 2 Internal unit
