Mira Advance User Manual

99
99
9






  

L
N
Important PointsImportant Points
Important PointsImportant Points
Important Points
11
11
1 The top and bottom of
the case walls have
thinned sections for ease
of removal to accept top
or bottom water inlet.
22
22
2 The hatched areas are
case cutouts to allow
cable and pipe access.
33
33
3 Ensure screw fixings do
not puncture buried
cables.
73

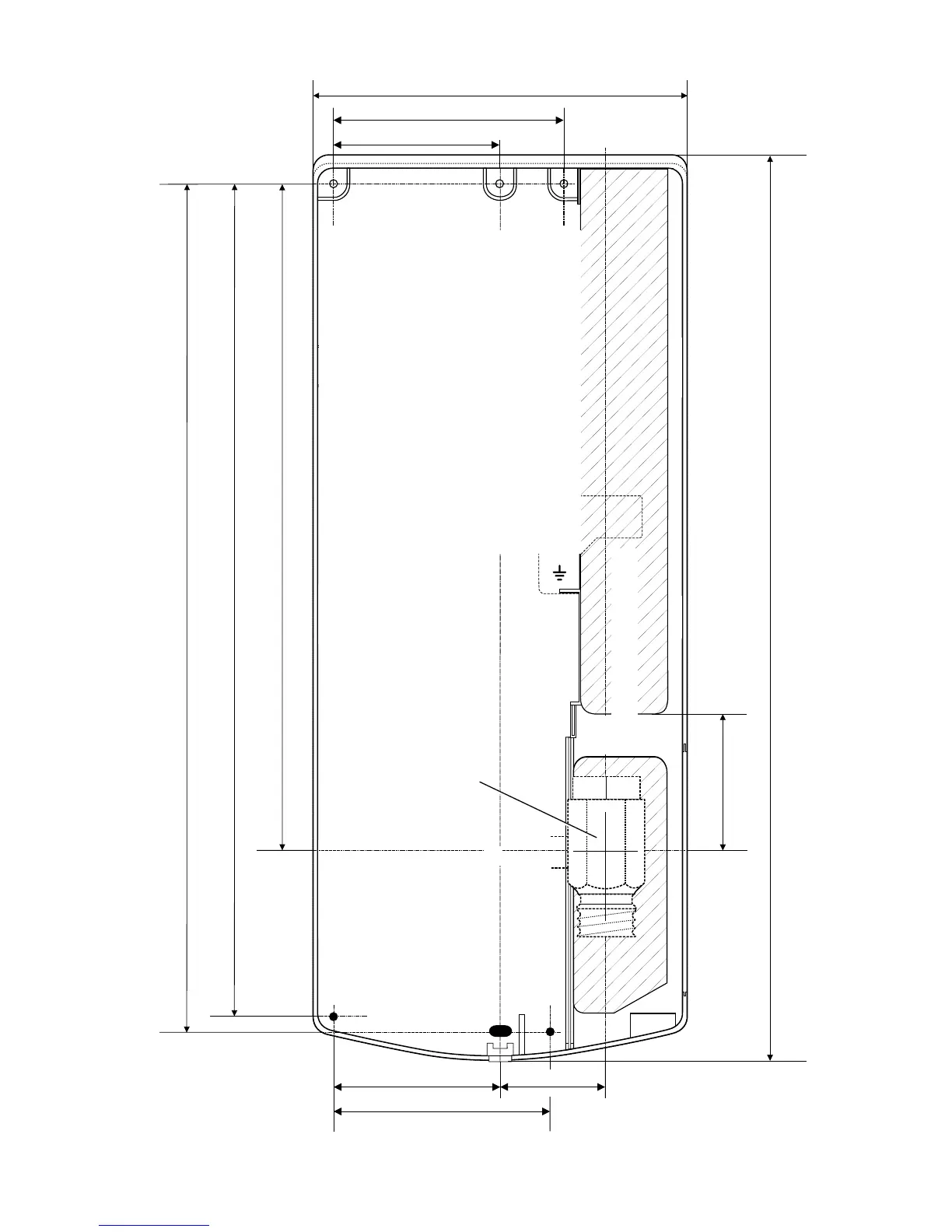

Mira Advance centre line
Inlet Connector
centre line
46.5
Supply pipe centre line
288
395
59
95
168
101
73
360
367
Inlet Connector
Assembly
(Bottom inlet
shown)
All dimensions are nominal and in millimetres.
2.2.
2.2.
2.
WW
WW
W
ater and Cabater and Cab
ater and Cabater and Cab
ater and Cab
le Entrle Entr
le Entrle Entr
le Entr
y Py P
y Py P
y P
ointsoints
ointsoints
oints

Mira Advance Specifications

General

Temperature Control	Thermostatic
Warranty	2 Years
Power Ratings	9.8 kW
Water Connection	15 mm
Outlet Connection	1/2"
Water Pressure	0.7 - 10 bar
Cable Entry Points	Bottom entry
Safety Features	Overheat protection
Approvals	WRAS
