1062243-W2-N

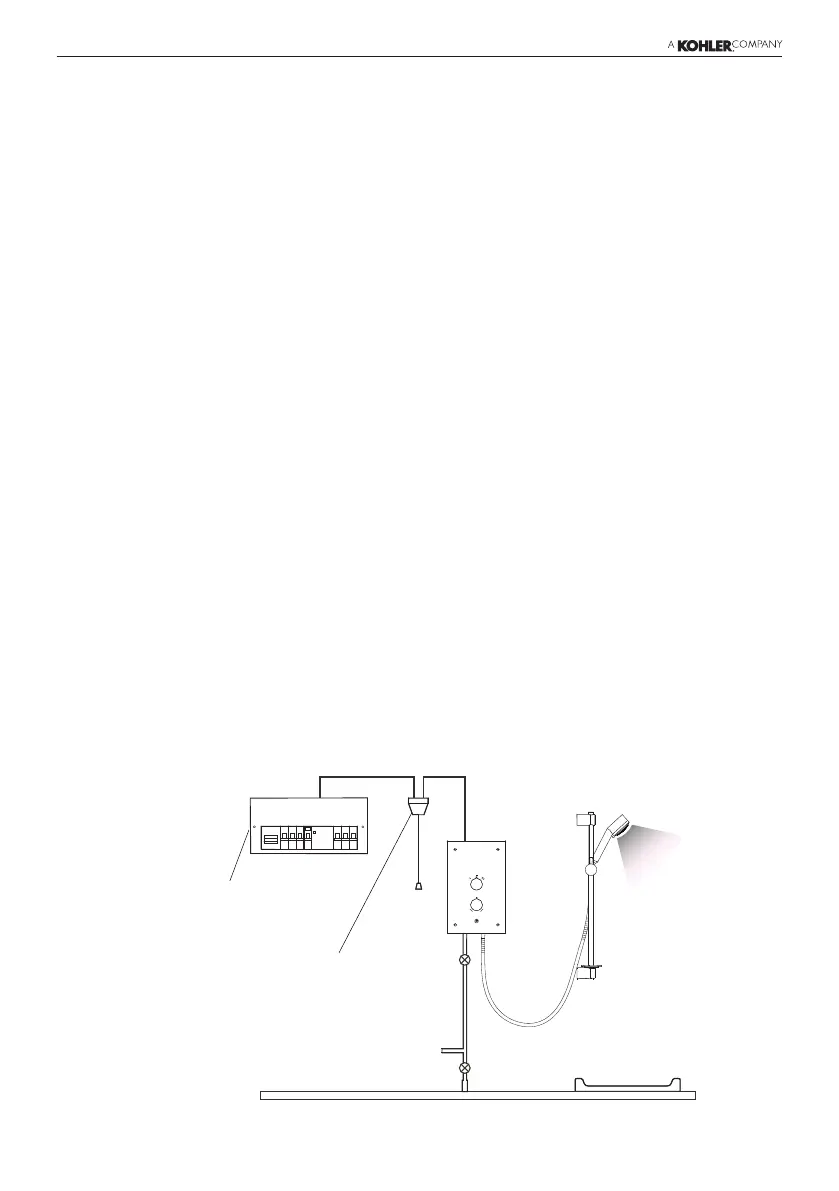

Plumbing and Electrical Schematic

Electrical

1. The electrical installation must comply with BS 7671 (commonly referred to as

theIEEWiringRegulations)andallrelevantbuildingregulations,oranyparticular

regulationorpracticespeciedbythelocalelectricitysupplycompany.

2. Ensure that all circuit protection devices, switches and cabling is adequate

for the rated current of the shower and that the rating of the electricity supply

company fuse and the consumer unit are adequate for the additional demand.

3. The shower must be earthed. Ensure any supplementary bonding complies

with the relevant regulations.

4. Thisshowerisintendedtobepermanentlyconnectedtothexedelectricalwiring

of the mains system. A separate supply must be provided from the consumer

unit to the shower.

5. DO NOT supply any other electrical equipment including extractor fans or pumps

via this product.

6. This shower must be provided with means for local disconnection that is

incorporatedintothexedwiringinaccordancewiththerelevantlocalwiring

regulations. This must be a double pole switch, which has at least 3 mm contact

separation in each pole. The switch can be a ceiling mounted pull-cord type

withintheshowerroomorawallmountedswitchttedintheapplicablezone

area.

7. A30mAResidualCurrentDevice(RCD)mustbeincorporatedintotheelectrical

supply to this shower in accordance with wiring regulations.

8. DO NOT apply excessive force to the terminal block.

9. All electrical connections should be checked for tightness to prevent overheating

before switching on the electrical supply.

10. DO NOT switch on the electrical supply until the plumbing has been completed

and checked for leaks.

Double-pole

Isolating Switch

Consumer Unit
