Mira Azora Installation And User Guide

27
1062243-W2-N

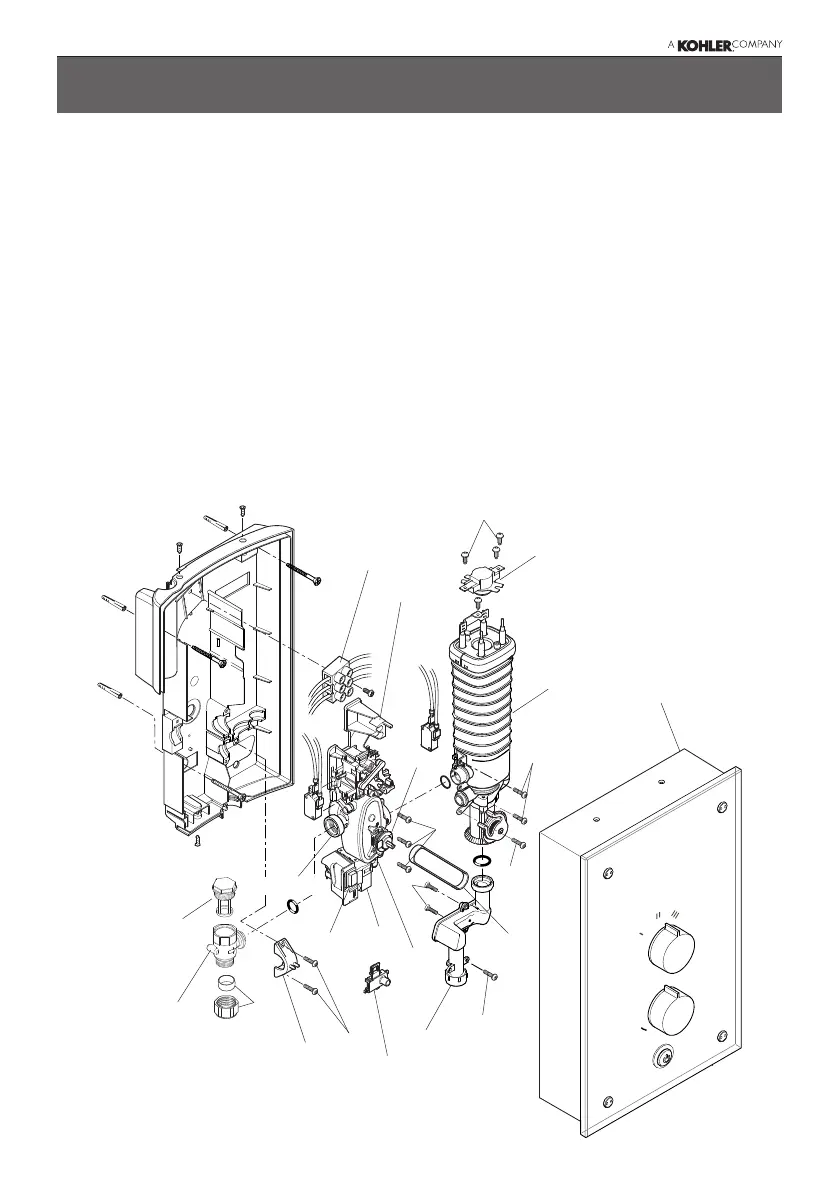

Spare Parts
416.38 Clamp Bracket (Inlet)
416.41 Thermal Switch
416.48 Latching Switch
416.51 Solenoid Coil
1563.519 Terminal Block Assembly
1563.845 Thermostatic Valve/Heater Tank
9.8 kW 240 V AC (includes
microswitches)
1563.534 Outlet Connector Assembly
1563.537 Temperature Control Belt
Thermostatic
1563.538 Temperature Cam & Pulley
1563.539 Switching Assembly
1563.540 Inlet Valve Assembly
1563.551 Component Pack - chrome -
componentsidentied‘B’
1634.015 Start/Stop LED Assembly
1634.026 Screw Pack - components
identied‘A’
1623.009 Cover Assembly - Frosted
Glass
1634.118 Cover Assembly - Blue
Glass
1634.119 Cover Assembly - Grape
Glass
1634.120 Cover Assembly - White
Flock Glass
1634.121 Cover Assembly - Stripes
1634.122 Cover Assembly - Flag
1634.123 Cover Assembly - Stones
1634.124 Cover Assembly - Dots
1829.062 Inlet Filter (with ‘O’ seal
tted)
1829.063 Inlet Connector Assembly
1829.063
1829.062
416.38
416.41
416.48
416.51
1563.507
1563.539
A
A
A
A
A
A
A
A
A
A
1563.534
1563.519
1634.009
1634.118
1634.119
1634.120
1634.121
1634.122
1634.123
1634.124
1563.845
(includes
microswitches)
1563.537
1563.538
B
B
B
B
B
1634.015
1563.540
