Mira Coda User Manual

11
5. Caution! Make sure that the supply
pipework is ushed before installing
the bar valve.

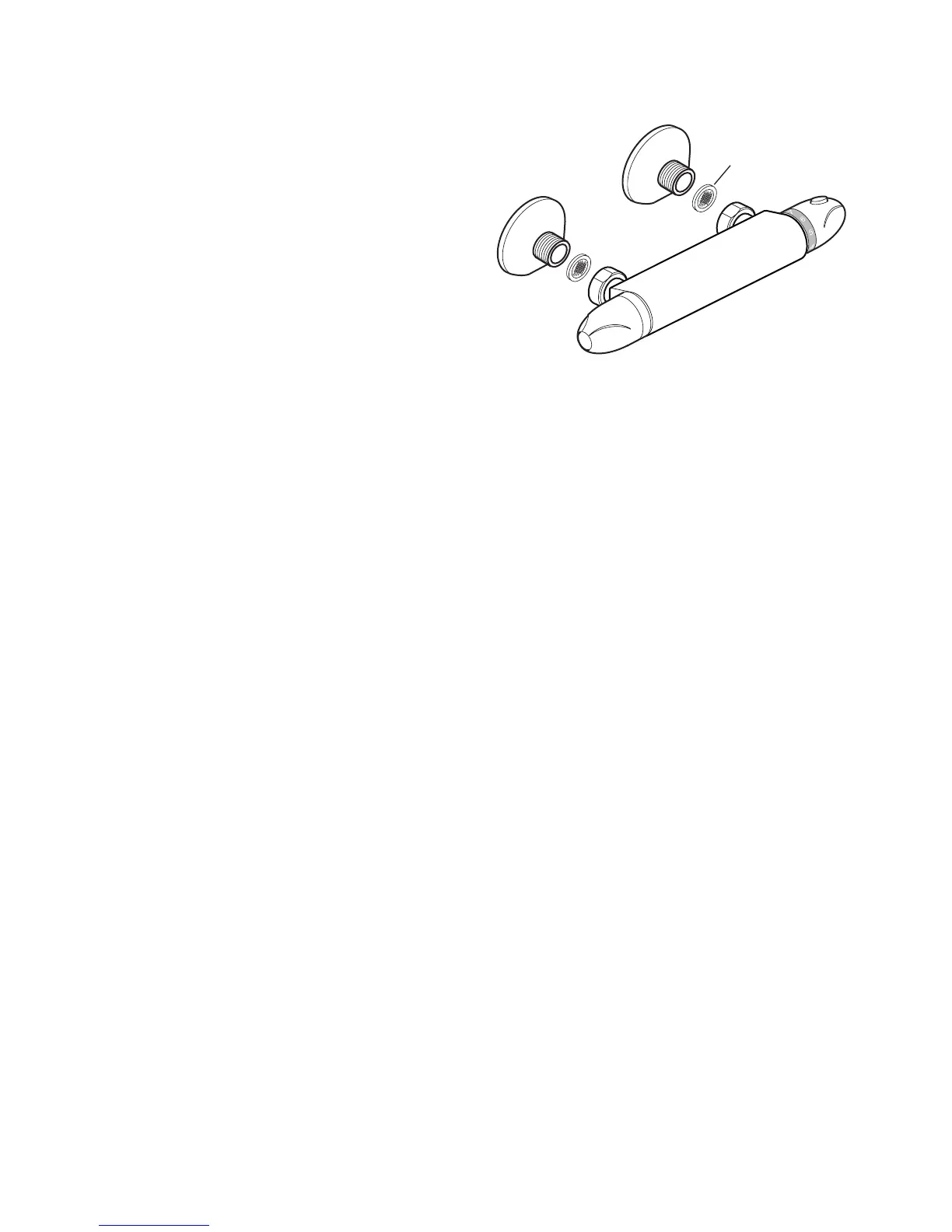

Assemble the bar valve with a sealing
washer/lter in each inlet and attach
to the offset connectors.
Note! Connections are: Hot-Left,
Cold-Right.
6. Tighten the connections using a
suitable spanner.
7. Install the shower ttings (refer to
your shower ttings installation and
user guide).
Sealing Washer
/ Filter
8. Turn on the hot and cold water supplies and check for leaks.
9. Before using the shower, refer to section: ‘Commissioning’.

Mira Coda Specifications

General

Temperature Control	Yes
Color	White
Water Temperature Control	Yes
Nozzle Position Adjustment	Yes
Nozzle Self-Cleaning	Yes
Maximum Static Pressure	80 psi
Valve Type	Solenoid
Inlet Connections	1/2" BSP
Water Entry Points	Back
