SPECIFICATIONS
Pressures
Max Static Pressure: • 10 Bar.
Max Maintained Pressure: • 5 Bar.
Min Maintained Pressure: (Gas Water Heater): • 1.0 Bar. (for optimum
performance supplies should be nominally equal.)
Min Maintained Pressure (Gravity System): • 0.1 Bar. (0.1 bar = 1 Metre head
from cold tank base to shower handset outlet.)
Temperatures
Close temperature control is provided between • 20°C and 50°C.
Optimum Thermostatic Control Range: • 35°C to 45°C. (achieved with supplies
of 15°C cold, 65°C hot and nominally equal pressures.)
Recommended Hot Supply: • 60°C to 65°C. (Note! The mixing valve can operate
at temperatures up to 85°C for short periods without damage. However for
safety reasons it is recommended that the maximum hot water temperature is
limited to 65°C.)
Minimum Differential between Hot Supply and Outlet Temperature: • 10°C.
Cold Water Range: • 5°C - 25°C.
Thermostatic Shut-down
For safety the thermostat will shut off the hot supply • within 2 Seconds if the
cold supply fails. (achieved only if the hot supply temperature is greater than
10°C above the set blend temperature.)
Connections
Hot: Left • (side nearest ow control), ½” BSP Male.
Cold: Right • (side nearest temperature control), ½” BSP Male.
Outlet: Bottom• , ½” BSP Male to exible hose.
Note! This product does not allow for reversed inlets and will deliver unstable
temperatures if tted incorrectly.

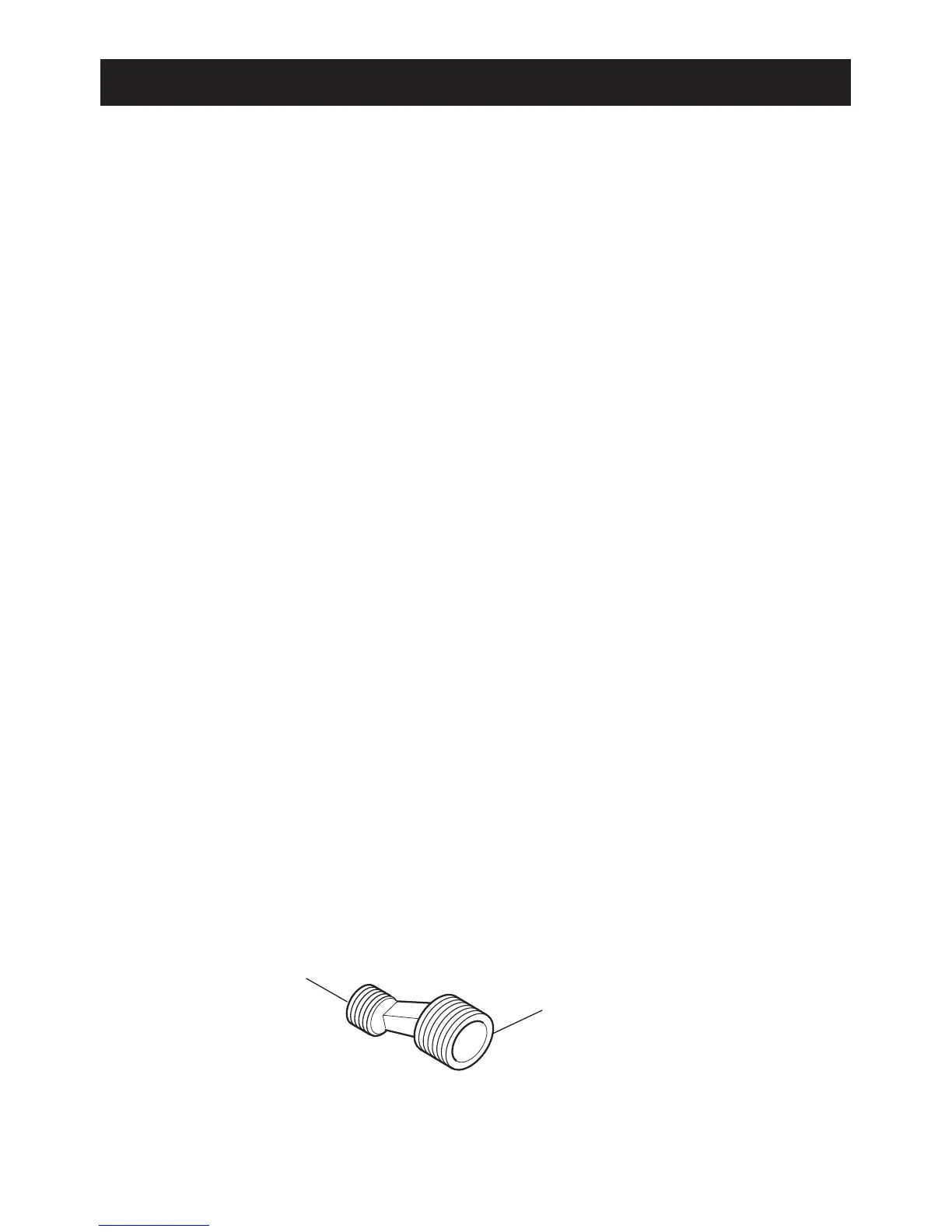

Offset connector (inlet centres are 150 mm ± 24 mm).
½" BSP
Connection to Pipework
¾" BSP
Connection to Bar Valve
To Next Page
