Solid Wall Installation
For solid wall installations the thermostatic bar valve can be supported by the
pipework provided that it is securely xed to the wall. Alternatively for unxed rear
entry pipework the wall mounting bracket can be used.
For installation onto a stud partition, laminated panel, or onto unxed rear-entry
pipework (using the wall mounting bracket) refer to section: 'Stud Partition,
LaminatedPanel,orUnxedRear-entryPipeworkInstallation'.

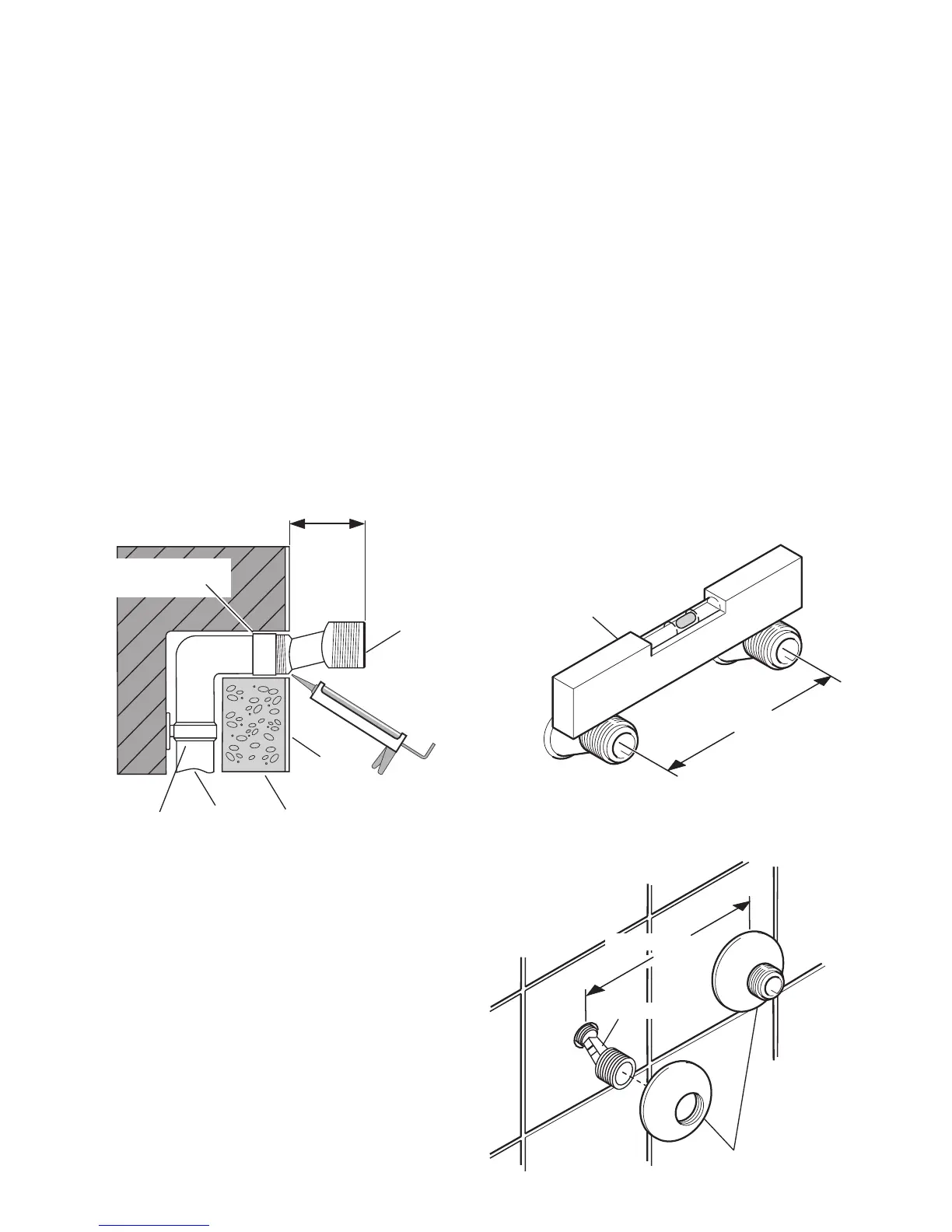

1. Install the pipework, making sure that it is set at the correct distance apart
(150 ± 24 mm) andsolidlyxed.
2. Apply suitable thread sealant (not supplied) and attach the offset connectors
to the pipework in the wall. The offset connectors must protrude between 35
and 40 mm from the nished wall.
Note! Connections are: Hot-Left, Cold-Right. This is very important as this
product does not allow for reversed inlets.
3. Tighten the offset connectors using a
spanner on the spanner ats. Make
sure that the connectors are level
and set at the correct distance apart,
using the bar valve as a guide to
spacing.
4. Screw the concealing plates onto the
offset connectors until they come into
contact with the wall.
Concealing Plates
Spanner Flats
150 ± 24 mm
Hot
Cold
Spirit Level
Offset
Connector
Wall
Tile
Pipework
Support
Bracket
150 mm
35 - 40 mm
Apply Silicone
Sealant to seal
hole in wall
½" BSP Female
Connection
To Next Page
