Mira FORM User Manual

31

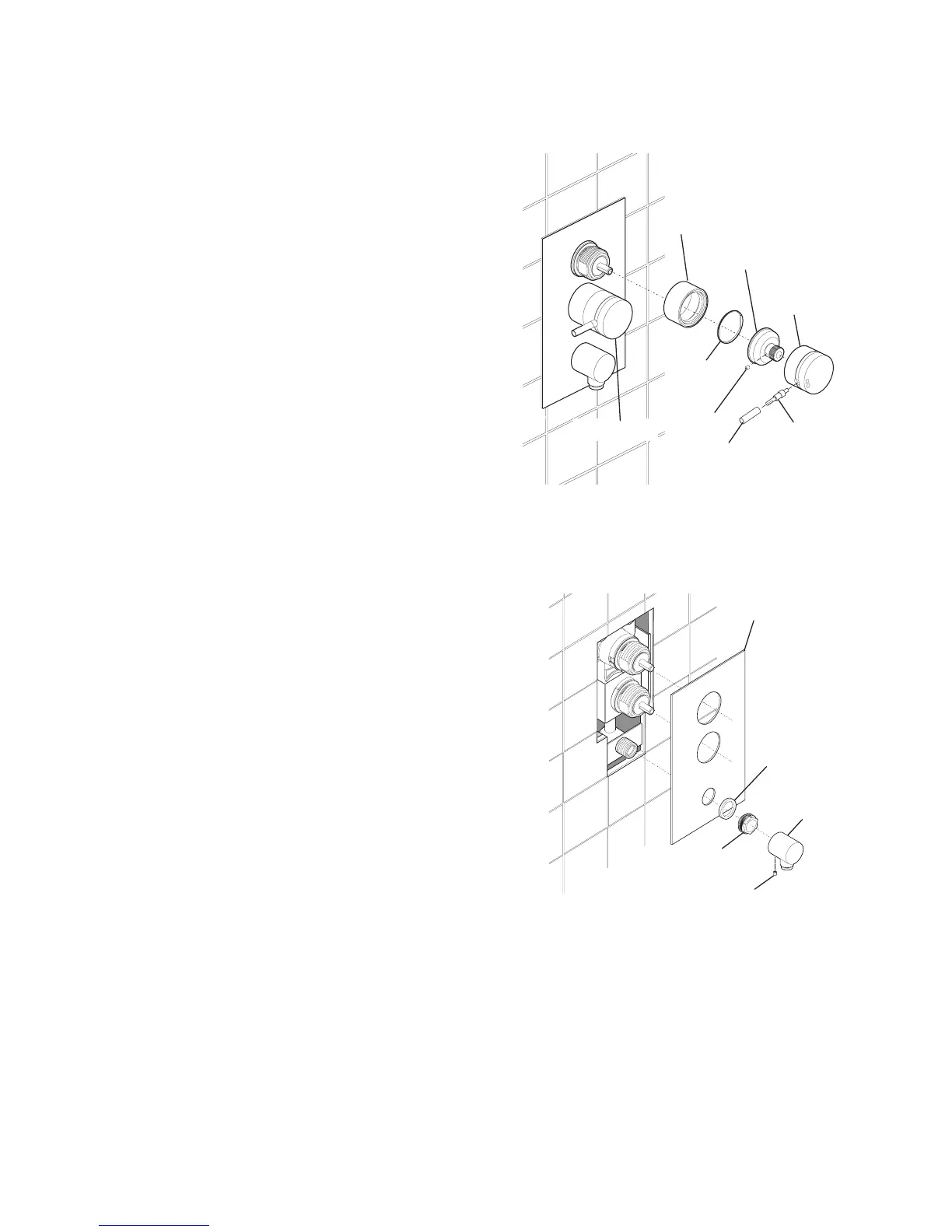

Removing/Fitting Knob and Concealing Plate Assemblies
Temperature
Knob
Locknut
Trim
Inner
Bush
Locknut
Lever
Cover
Lever
Screw
Grub
Screw
Flow Knob
Removing the Knob Assembly
1. Rotate the flow knob fully clockwise
and the temperature knob fully
anticlockwise.
2. Unscrew the lever cover anticlockwise.
3. Unscrew the lever screw,
anticlockwise, and remove the
temperature/flow knob.
4. Unscrew the grub screw using the
2.5 mm hexagonal key and remove the
inner bush.
5. Lift off the locknut trim and unscrew
the locknut in an anticlockwise
direction.
Foam Outlet
Seal
Wall Clamp
Nut
RAC
Concealing
Plate
Grub Screw
1. Remove both flow and temperature
knob assemblies. Refer to Removing
the Knob Assembly for instructions.
2. Unscrew the grub screw, securing the
RAC, using the 2.5 mm hexagonal key
provided. Remove the RAC.
3. Unscrew and remove the wall clamp
nut, then remove the outer seal and
concealing plate.
Removing the Concealing Plate Assembly
