Installation of outdoor unit
2. Fix the power connection wire and signal control wire with wire clip (only
for cooling and heating unit).
Note:
• After tighten the screw, pull the power cord slightly to check it it is rm.
• Never cut the power connection wire to prolong or shorten the distance.

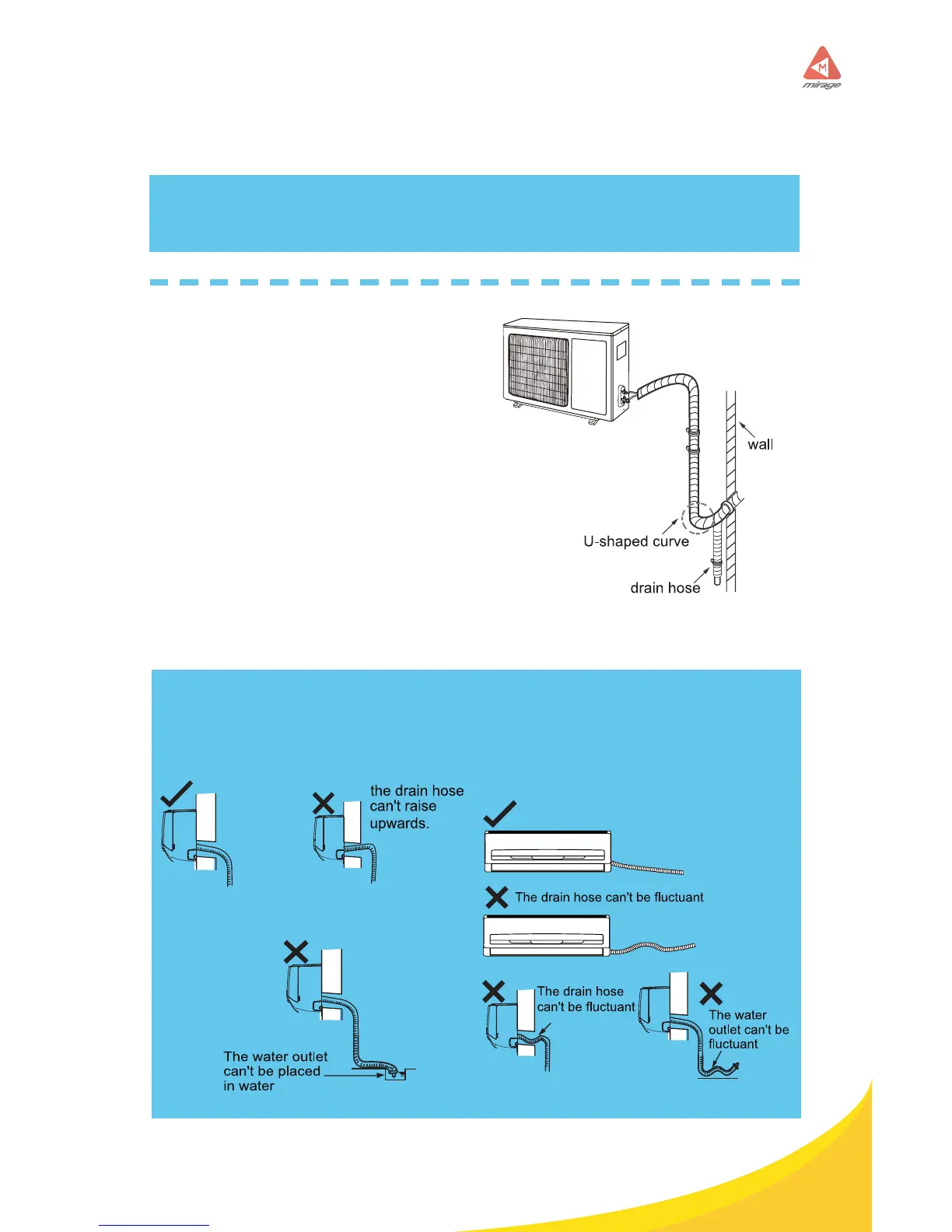

Step six: neaten the pipes
1. The pipes should be placed along
the wall, bent reasonably and hidden
possibly. Min. semidiameter of
bending the pipe is 10cm.
2. If the outdoor unit is higher
than the wall hole, you must set a
U-shaped curve in the pipe before
pipe goes into the room, in order
to prevent rain from getting into the
room.
Note:
• The through-wal height of drain
hose shouldn’t be higher than the
outlet pipe hole of indoor unit.
• Slant the drain hose slightly down-
wards. The drain hose can’t be
curved, raised and uctant, etc.
• The water outlet can’t be placed in
water in order to drain smoothly.
