QMP-5101N Network Paging Wiring for Mass Notification

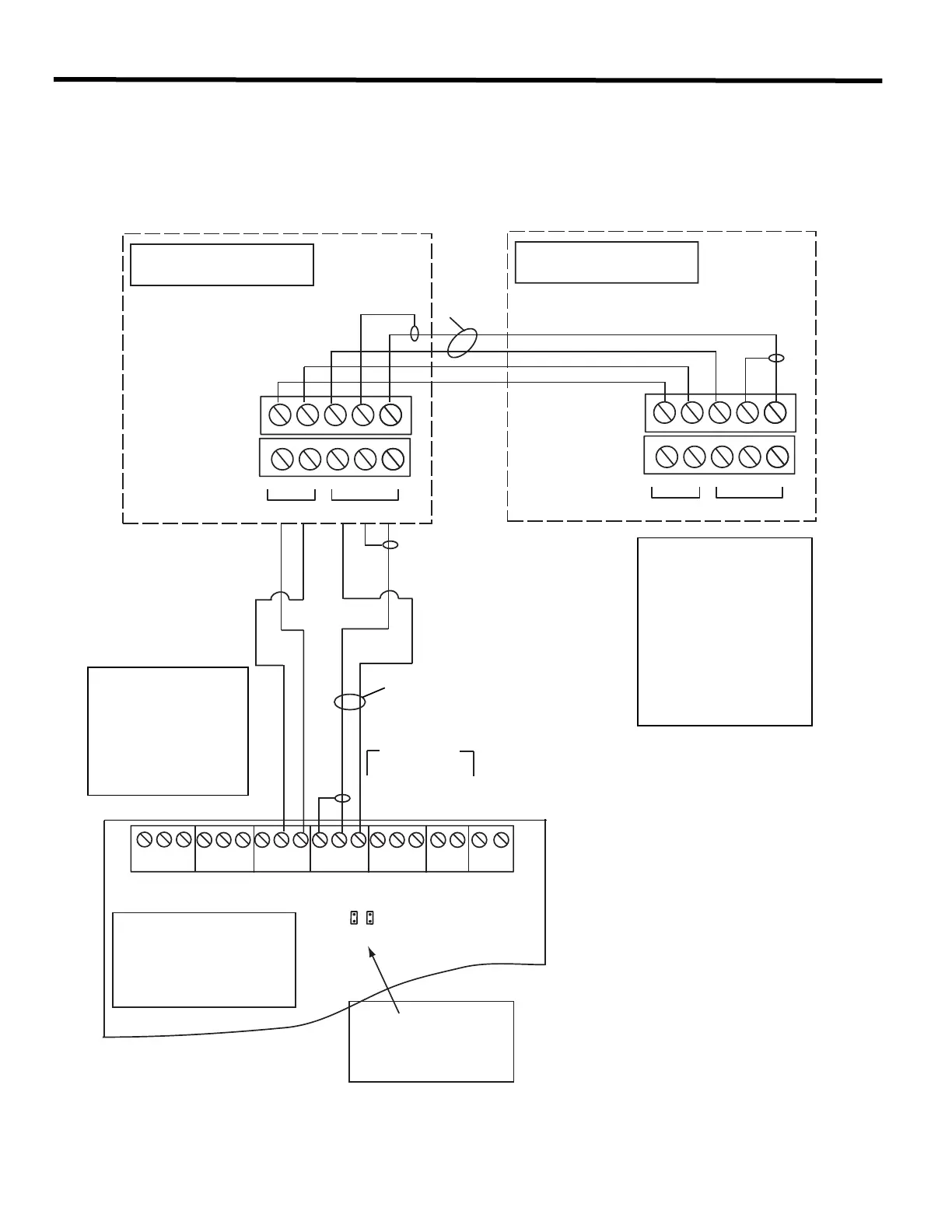

Figure 88: QMP-5101N Network Paging Module Wiring to the ANC-5000 Audio
Network Controller Module
JW7
JW8
+ - + -
S - +
S - +
S - + S - + L - +
PAGING BUS
MIC
PTT
OUT
IN
ANC-5000 Audio
Network Controller
Module in the
MNS (ACU)
+
+
- -
S
PTT
MIC
QMP-5101N Network
Master Paging Module
+
+
- -
S
PTT
MIC
QMP-5101N Network
Master Paging Module
Remote
Power
Input
G.A.
Input
IN
RS-485
NOT USED
Wire the Paging Bus
to all other ANC-5000
Audio Network
Controller Modules
OUT to IN. See Figure
73 for more details.
TWISTED
SHIELDED
PAIR CABLE
TWISTED
SHIELDED
PAIR
CABLE
Jumpers JW7 and JW8
must be installed at all
times.
This connec-
tion to Aux
Power is not
required when
ANC-5000 is
installed in the
Audio Card
Cage
Daisy chain PTT and
MIC to next FX-LOC(R).
At the last FX-LOC(R)
QMP-5101N Paging
Mocule connect EOL
resistors (3K9 ohms
value) to + and - of
both the MIC and PTT
terminals.
MNS - ACU
FX- LOC(R)
