Mircom FleX-Net FX-2003-12NDS User Manual

FleX-Net
TM
Installation and Operation Manual
23

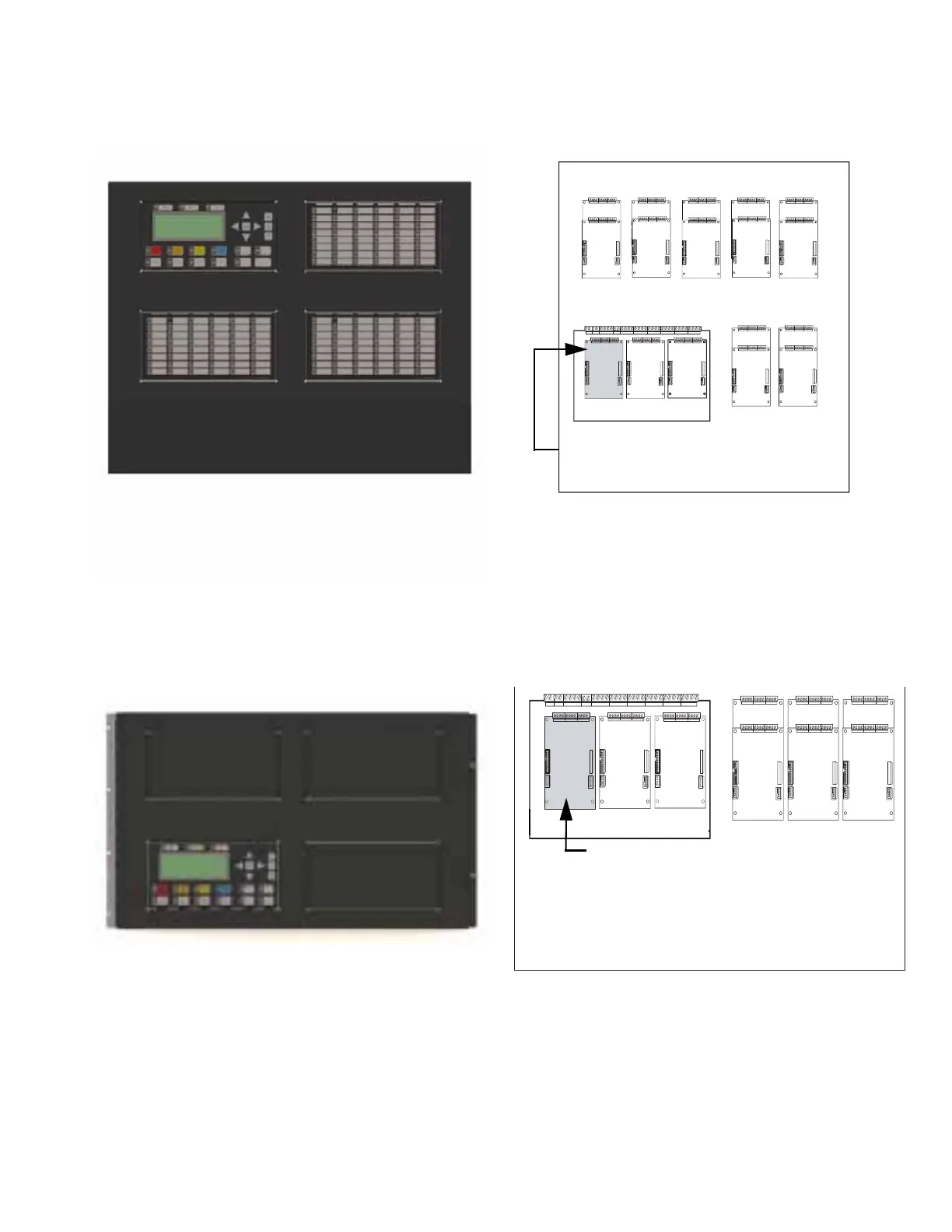

FX-2017-12NDS Mid-size Main Chassis
Mounts in the BBX-1072ADS/ARDS Enclosure, and supports three display modules and 17 adder modules.
FX-2009-12NDS Large Main Chassis
Mounts and occupies four display positions in BB-5008 or BB-5014 Enclosures, and supports two display modules and
nine adder modules. This large chassis size can hold the integrated audio and/or telephone modules.
I nterior View I nside Backbox View
I nterior View I nside Backbox View
1
23
45
67
89101112
1314151617
FX-2000 Main Board
Slot 3 is reserved for PR-300 or UDACT-
300A. If not required, this slot can be used
to mount any of the adder modules.
The recommended mounting position is 2 for
the FNC-2000. The FOM-2000-UM board, if
used, is mounted over the FNC-2000 board.
FX-2000N Main Board
4
231
56
789
FX-2000 Main Board
FX-2000N Main Board
Slot 3 is reserved for PR-300 or UDACT-300A. If
not required, this slot can be used to mount any of
the adder modules. The recommended mounting
position is 2 for the FNC-2000. The FOM-2000-UM
board, if used, is mounted over the FNC-2000
board. Positions 4 to 9 are replaced with the audio
and telephone boards if used.
