Display and Adder Modules Mounting Locations
24
ECX-0012 Expander Chassis for FX-2009-12NDS
Mounts and occupies two display positions in BB-5008 or BB-5014 Enclosures, and supports two display and 12 adder
modules.
NETWORK CONTROLLER MODULES
The FNC-2000 Fire Network Controller module is mounted in position 2 over the FX-2000N main board. The TNC-
5000 Telephone Network Controller module is mounted over the ANC-5000 Audio Network Controller module and
both are mounted on a metal plate and that plate is mounted in a BB-5008 or BB-5014 backbox in positions marked
4 to 9 inclusive, refer to previous drawing of large chassis.
Adder Modules
Each adder module occupies one module slot and mounts inside the following chassis:
• FX-2003-12NDS Compact Main Chassis
• FX-2003-12NXTDS Mid-size Main Chassis
• FX-2017-12NDS Mid-size Main Chassis
• FX-2009-12NDS Large Main Chassis and ECX-0012 Expander Chassis for FX-2009-12NDS

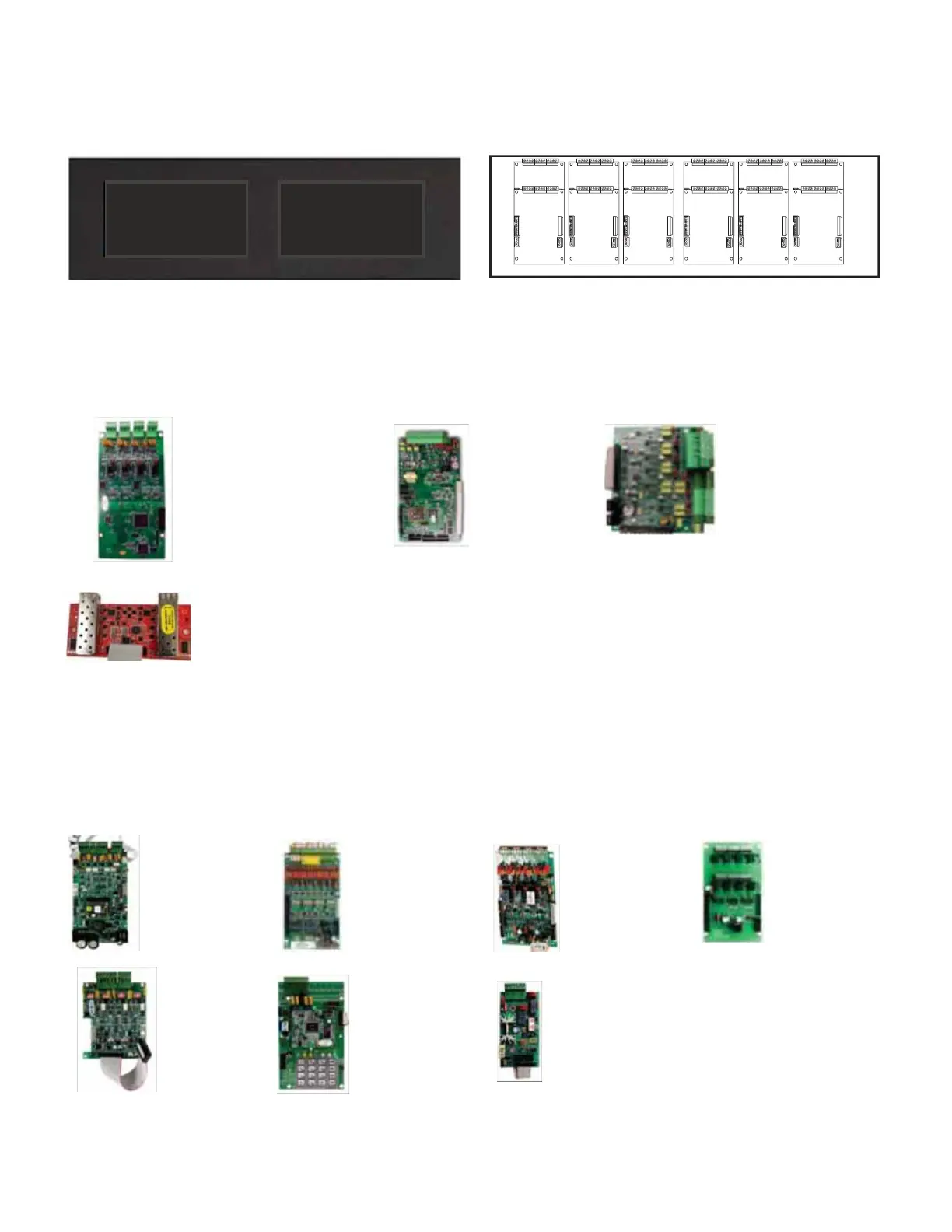

I nterior View I nside Backbox View
FNC-2000
Fire Network Controller
Module
FOM-2000-UM
Fiber Optics Module
Mounts over the
FNC-2000 Fire Network
Controller Module
ANC-5000
Audio Network
Controller
Module
TNC-5000
Telephone
Network
Controller
Module
ALCN-792MISO
Quad
Intelligent
Analog Loop
Adder Module.
DM-1008A
Eight Initiating
Circuit Module
SGM-1004A
Four NAC
circuit Module
RM-1008A
Eight Relay
Circuit Module
ALCN-
792D
Daughter
Board
Analog 2
Loop
Adder
Module.
Mounts over ALCN-
792MISO
UDACT-300A
Digital Alarm
Communicator
Module
PR-300
Polarity
Reversal/ City
Tie Module
Cutout for
display module
Cutout for
display module
