Each display module occupies one display position and mounts to the display cutouts on the following chassis:
• FX-2003-12NDS Compact Main Chassis
• FX-2003-12NXTDS Mid-size Main Chassis
• FX-2017-12NDS Mid-size Main Chassis
• FX-2009-12NDS Large Main Chassis
• ECX-0012 Expander Chassis for FX-2009-12NDS
These modules can also be mounted in the stand99ard BB-5000 Series enclosures which have cutouts (with brackets),
and the BBX-1000 Series enclosures (requires RAXN-LCD as a driver) “Frame” is a measure of display capacity, used
in the programming of the system.

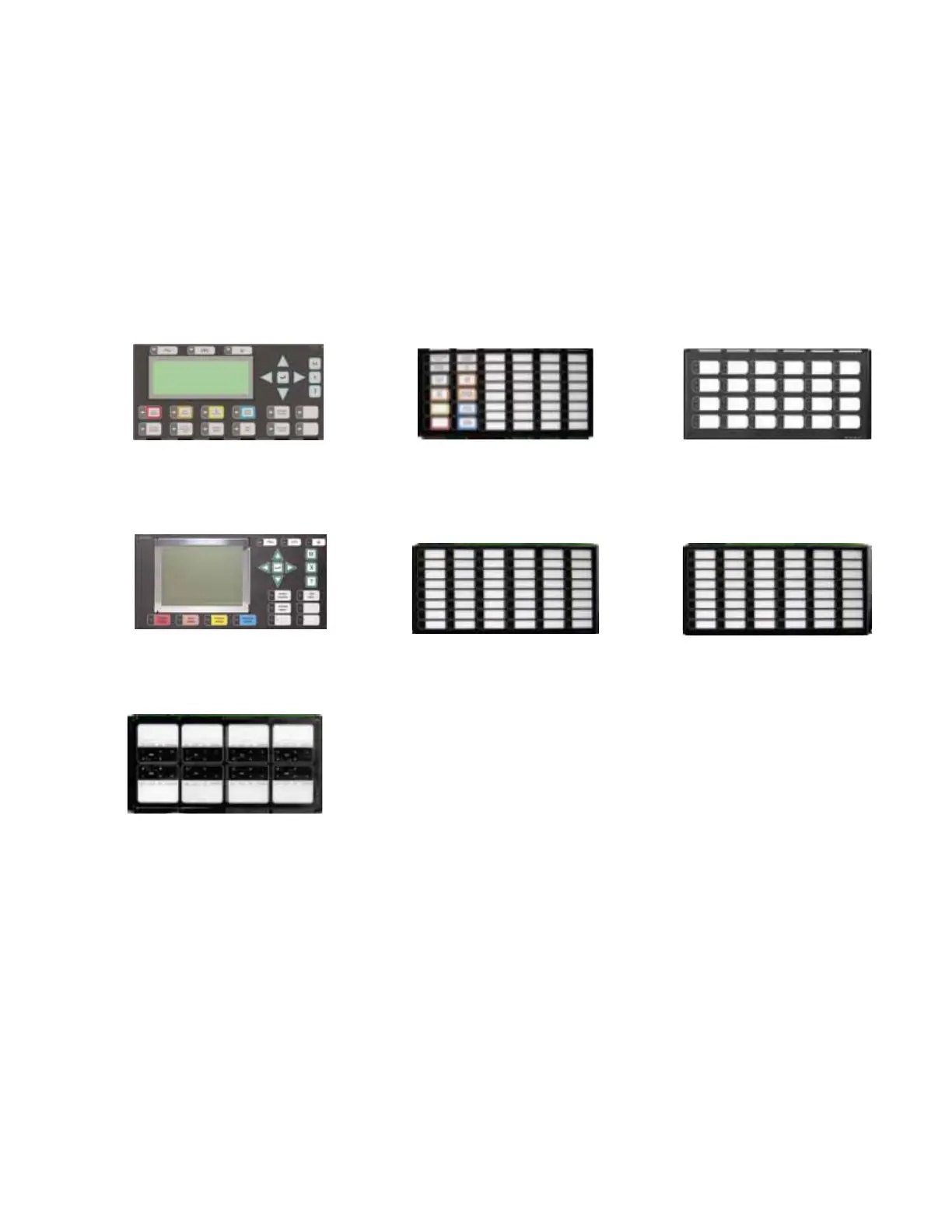

DSPL-420(DS)
Narrow Display Control(3 Frames)
RAM-1032TZDS(-CC)
Programmable Zone LED
Annunciator Module (3 Frames)
IPS-2424DS
24 Programmable Input
Switches Module (2 Frames)
DSPL-2440
Graphic Display Control(3 Frames)
RAX-1048TZDS(-CC)
Programmable Zone/Trouble LED
Annunciator Module (3 Frames)
IPS-4848DS
48 Programmable Input
Switches Module (3 Frames)
FDX-008W(KI)
Fan Damper Module (1 Frame)
