FleX-Net
TM
Installation and Operation Manual
27
DSPL-420( DS) Main Display Module
The DSPL-420(DS) mounts into backboxes BB-5008(R), BB-5014(R) and BBX-FXMNS. This display is part of the
following main fire alarm chassis: FX-2003-12NDS, FX-2003-12XTDS, FX-2009-12NDS, FX-2017-NDS, and FX-
2000MNS.

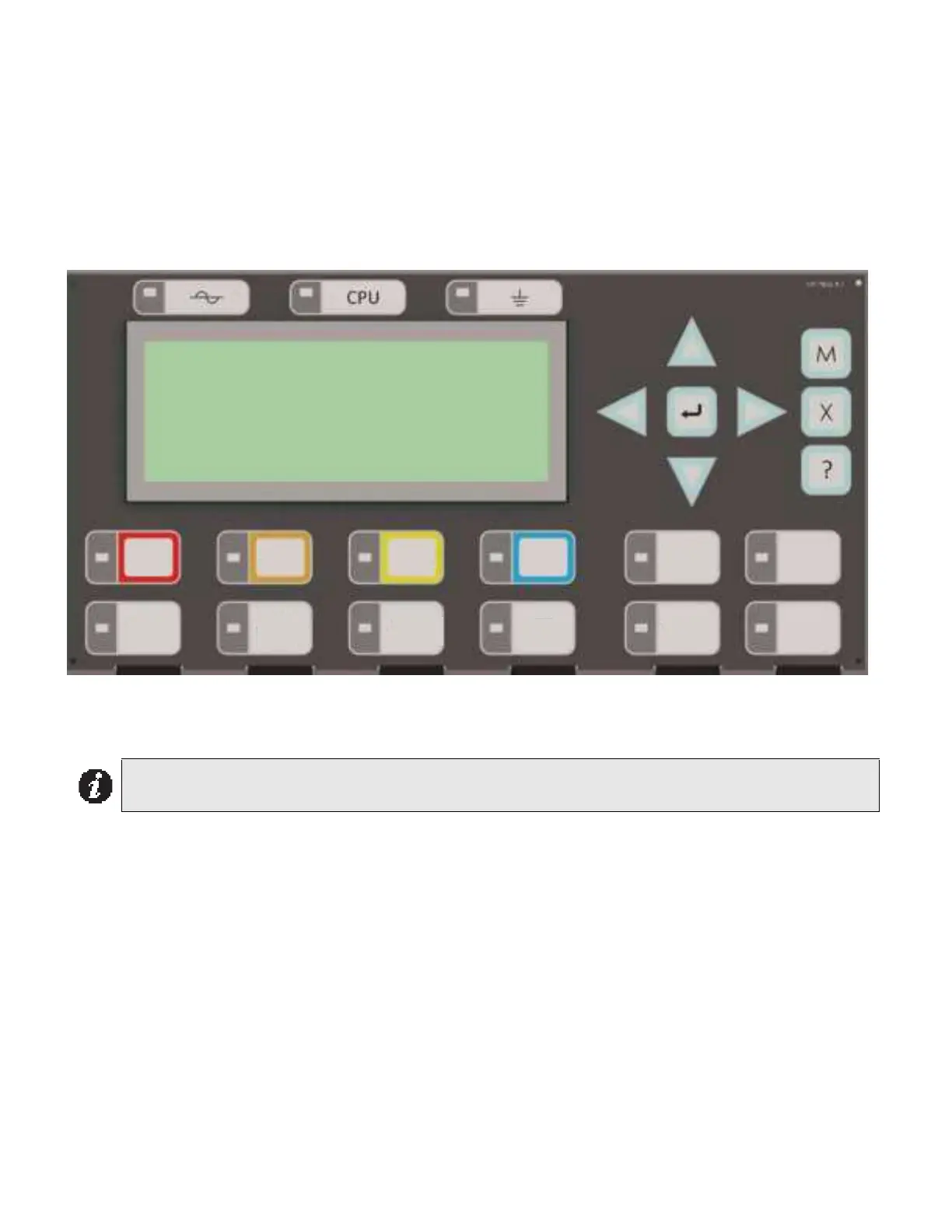

Figure 9: DSPL-420( DS) Main Display Module (Part of Main Chassis c/ w Main Fire
Alarm Module)
P1: Cable connects to P14 of the FX-2000N main fire alarm board (Figure 8).
P2: Connection to P1 of any adder display module if used.
Note: The main display module comes with slide-in paper labels including both English and French slide-
ins, and laser printer-compatible blanks for zone labelling.
GENERAL
ALARM
BLDG
QUEUE
TBL
QUEUE
SUP
QUEUE
ALM
QUE
ACKNOW-
LEDGE
FIRE
DRILL
SYSTEM
RESET
LAMP
TEST
SIGNAL
SILENCE
