Mircom FleX-Net FX-2003-12NDS User Manual

Module Settings
28
DSPL-2440 Graphical Main Display Module
The DSPL-2440 is a separate item. It can be mounted into backboxes BB-5008(R), BB-5014(R) and BBX-FXMNS.
It can replace the DSPL-420(DS) found with the following models: FX-2003-12NDS, FX-2003-12NXTDS, FX-2009-
12NDS, FX-2017-NDS, and FX-2000MNS.

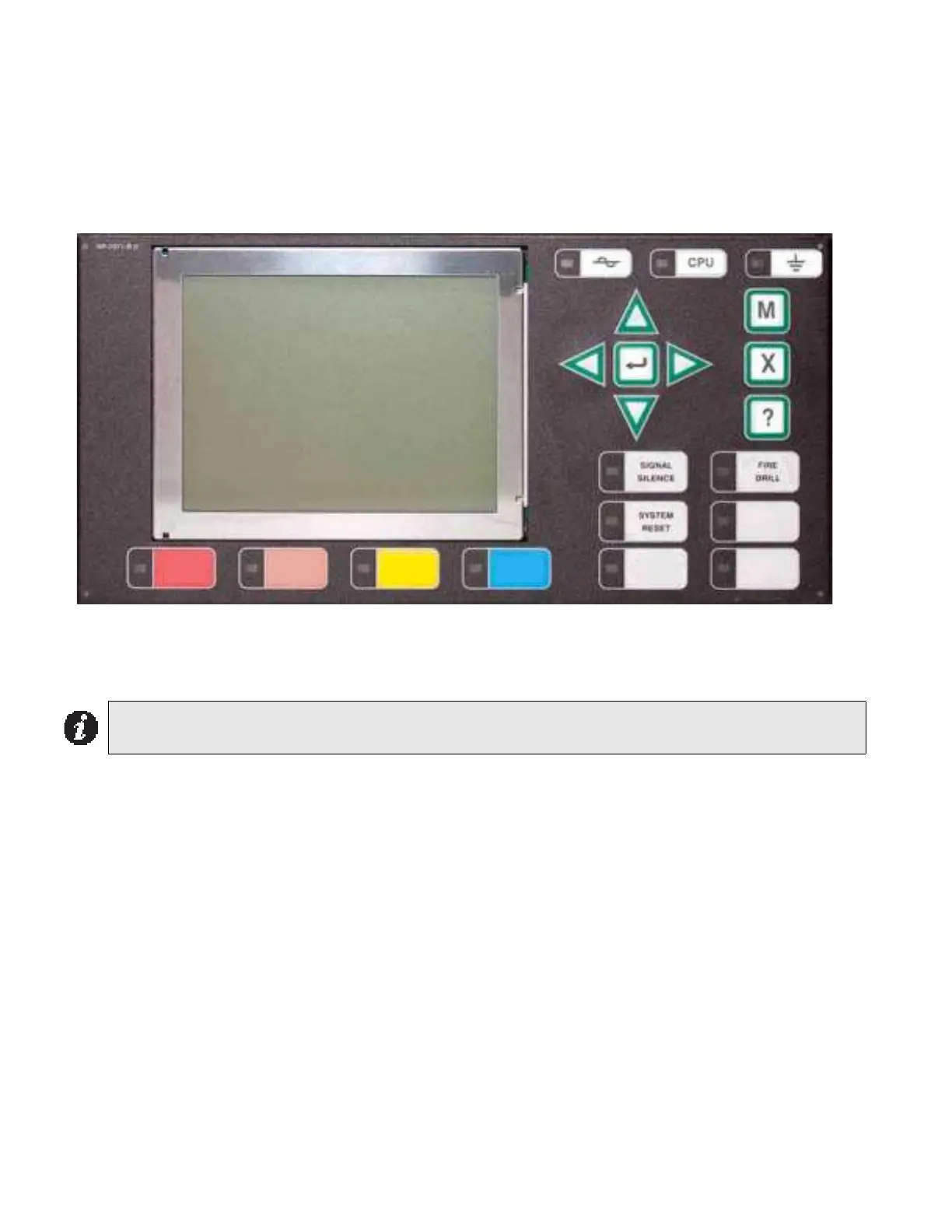

Figure 10: DSPL-2440 Graphical Main Display Module
P1: Cable connects to P14 of the FX-2000N main fire alarm board (Figure 8).
P2: Connection to P1 of any adder display module if used.
Note: The main display module comes with slide-in paper labels including both English and French slide-
ins, and laser printer-compatible blanks for zone labelling.
BLDG
QUEUE
TROUBLE
QUEUE
SUPV
QUEUE
TROUBLE
QUEUE
