Module Settings
34

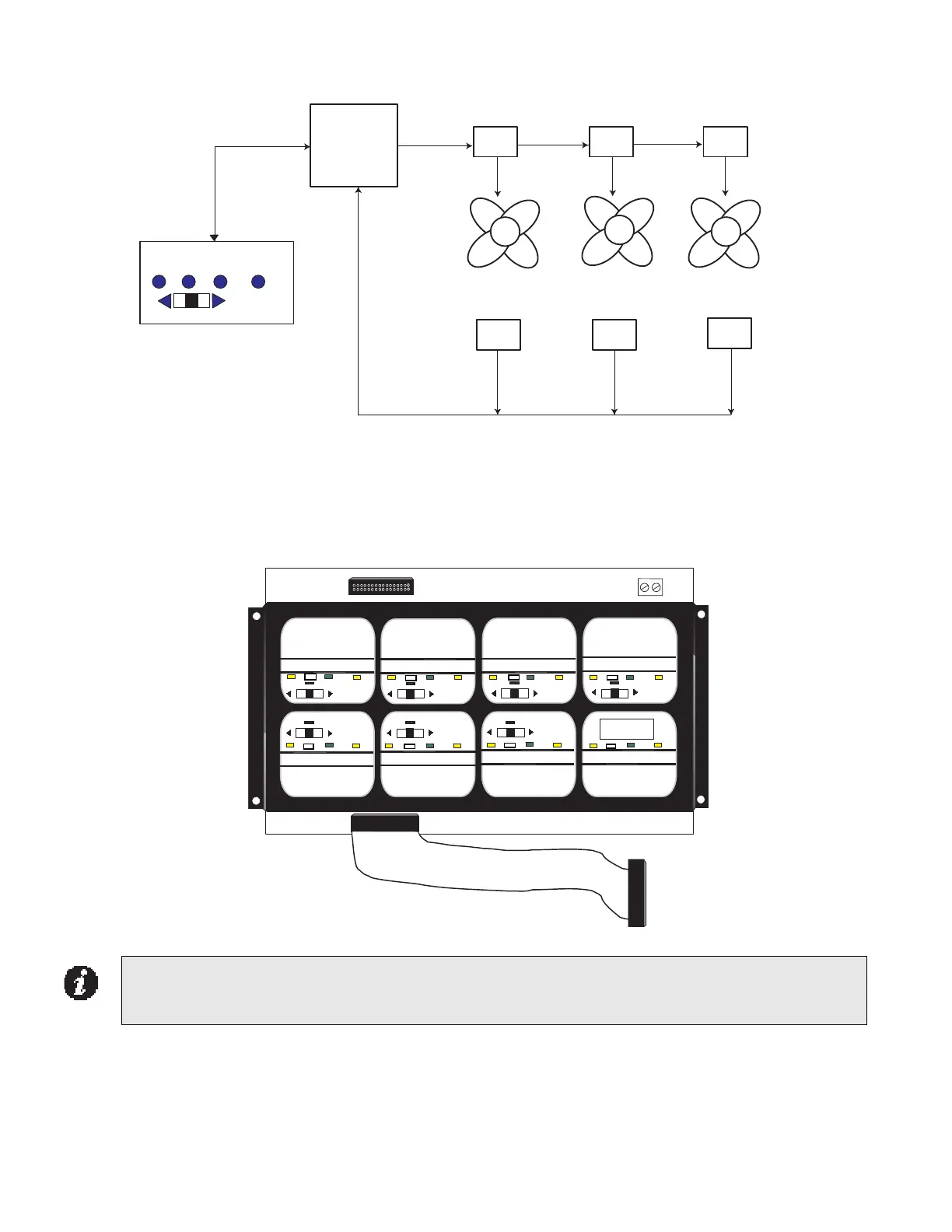

Figure 18: FDX-008W Block Diagram of Fan and Monitor Set-up
Before mounting the FDX-008WKI module, if a keyswitch is to be connected, wire the keyswitch to terminals at TS1
as shown in Figure 19 below. Mount the FDX-008W and FDX-008WKI Fan Damper Control Display modules in any
position on the front part of the FX-2000N chassis and backbox.
Figure 19: FDX-008WKI Fan Damper Control Display Module
UUKL w ith FDX-008W and FDX-008WKI
The models FDX-008W and FDX-008WKI can be effectively use to provide an automatic and manual control system
for smoke. Refer to document number LT-966 for extensive instructions regarding UUKL applications.
Note: There are also terminals located behind TS1 on the other side of the board for the convenience of
wiring the keyswitch. The last fan damper zone in the bottom right position of the FDX-008WKI is
controlled by the keyswitch.
OFF AUTO ON TROUBLE
FX-2000N FIRE
ALARM PANEL
FANS
OUTPUT MODULES
MONITOR MODULES
FDX-008W or FDX-008WKI
FAN/DAMPER CONTROL MODULE
OFF AUTO ON TROUBLE
OFF AUTO ON TROUBLE
OFF AUTO ON TROUBLE
OFF AUTO ON TROUBLE
OFF AUTO ON TROUBLE
OFF AUTO ON TROUBLE
OFF AUTO ON TROUBLE
OFF AUTO ON TROUBLE OFF AUTO ON TROUBLE
TS1
P2
TERMINALS AT TS1 ARE WIRED TO A KEYSWITCH.
NOTE: IF FAN DAMPER MODULE IS MOUNTED TO
THE DOOR USE TERMINALS LOCATED AT THE
BACK OF THIS BOARD, BEHIND TS1.
P1
KEYSWITCH
CONTROLLED
CONNECTS TO
PREVIOUS DISPLAY
MODULE P2
