How Should It Be Made?
• Close the air line entering in the pump from the valve. Open air pressure relief valve for relieving
pressure air remaining between air line valve and pump.
• Close the valve in the push line. Open the valve by opening a compatible container under uid
pressure relief valve. Empty remaining uid in the container. Remove outlet hose from the pump.
How Is The Fluid Remaining In The Pump Drained?
• Wear clothes compatible for uid transferred by the pump.
• Close valve, if any, in suction part of the pump.
• Use a compatible container to keep the uid that will ow or drop from the suction hose.
• Remove the suction hose from suction nozzle. Remove it if it is connected to ground (see page
10, gure 5).

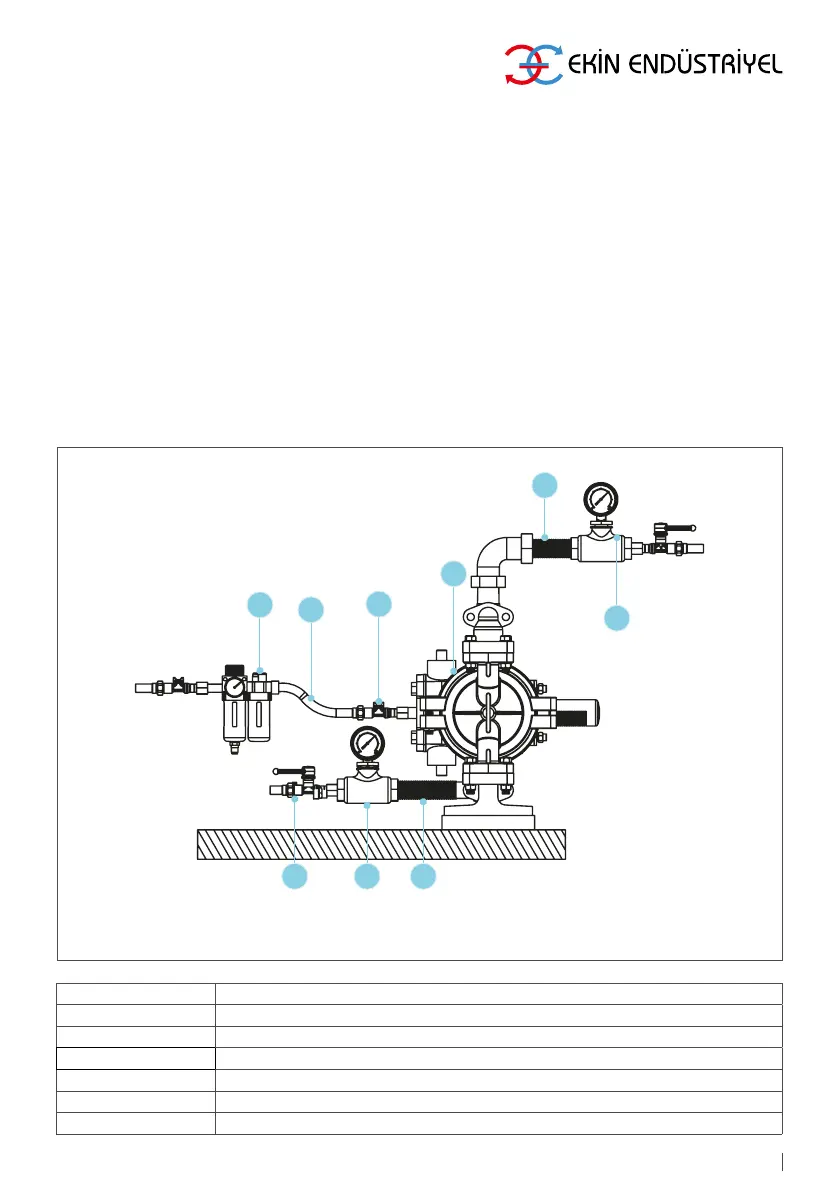

1 Diaphragm Pump.
2 Fluid Cut-Off Valve (Ball Valve).
3 Flexible Hose.
4 Manometer (Fluidization Measurement).
5 Lubricator
6 Pressure Line
7 Fluid Cut-Off Valve (Ball Valve).
Figure 5
